01

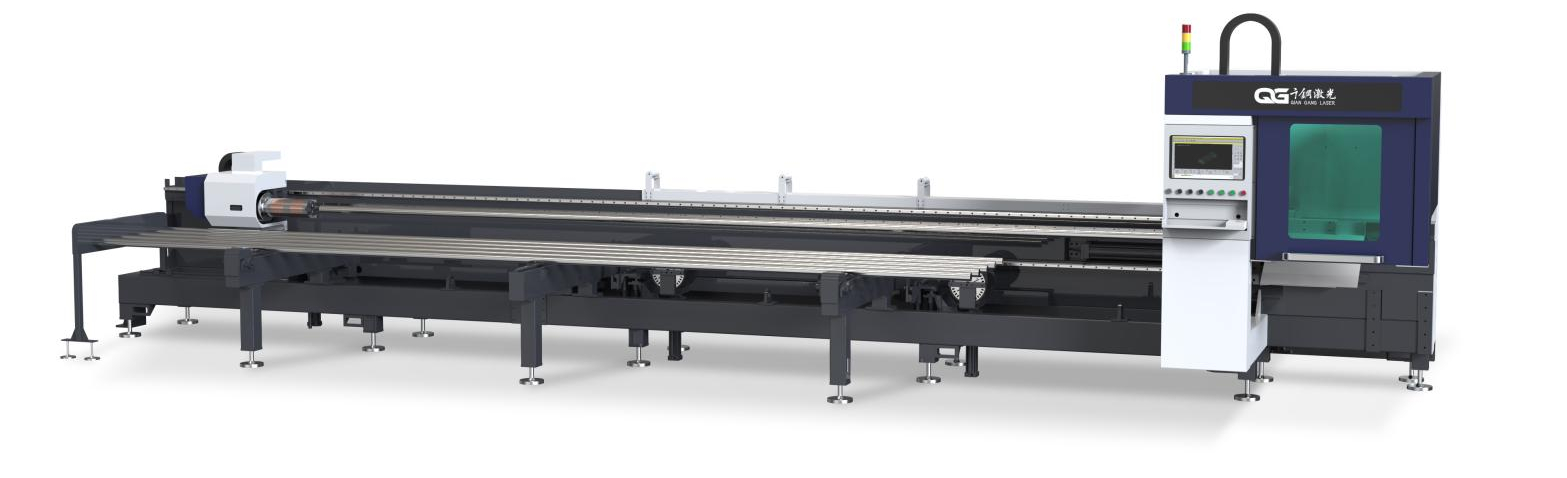

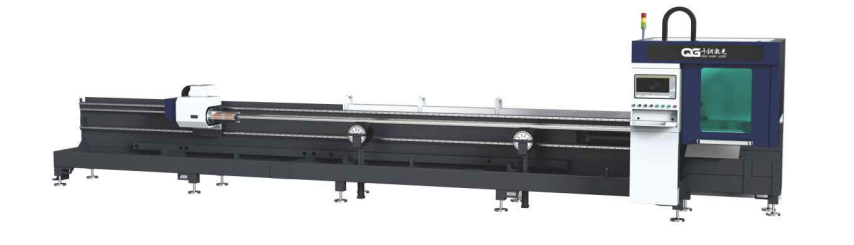

Square Tube Laser Tube Cutting Machine

G120P

One of the most inventive suppliers of laser equipment is China QIANGANG. This high-power, high-speed fiber laser cutting machine, model G120P Semi Auto Loading Square Tube Laser Tube Cutting Machine, was independently developed. It is a high-end system with a robust, advanced machine structure design, high-speed, accurate transmission component configuration, and an innovative cutting process.

    Contact us
    product details

    Product Detail

    The source manufacturer with a focus on laser pipe cutting machines is us. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, completely automatic laser pipe cutting machines, and precision laser pipe cutting machines for incredibly small tubes. We are able to modify the laser machines to meet your needs. Pipe processing applications for our G120P Semi Auto Loading Square Tube Laser Tube Cutting Machine are common in industries including medical devices, electronic communications, and industrial manufacture.

    Product introduction

    With laser power ranging from 1500w to 6000w, the G120P Semi Auto Loading Square Tube Laser Tube Cutting Machine is made to cut a variety of small and medium-sized pipes. It has a machine bed that is attached to the side for stability, increased loading capacity, and improved shock resistance. About 60mm short tailings are produced with great material usage when two-chuck cutting is done in reverse. Processing accuracy is ensured by a servo support mechanism, double cutting stations, and a two-chuck structure. An automated loading and unloading platform increases productivity and reduces labor expenses. The laser's cutting range is circumference, and its power range is 1500–6000.
    product-description1

    Features

    1. Fast and ultra-stable; 2500–3500 segments per hour is the standard specification.
    2. Top flow arrangement that is economical and efficient, conforms to industry standards and is suitable for precision machines using large pipes and small pipes.
    3. Dual-card disc control provides greater flexibility, and directly adjusting the pipe length can produce fool-like operation.
    4. There are various cutting types, such as square, round, and elliptical pipes. arbitrary pipes, including angle steel, channel steel, and i-beams.
    5. Fast and efficient.

    Application

    This G120P Semi Auto Loading Square Tube Laser Tube Cutting Machine can effectively cut various types of small and medium-sized pipes in 3D.
    • product-description2
    • product-description3
    • product-description1
    • product-description5

    Parameters

    Model

    G120P

    Laser Power (W）

    1500-6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8856*1876*2172

    Body + Rack size (MM)

    Semi-automatic(L*W*H):8856*1876*2172

    Machine weight（T）

    ≈3.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈60

    Samples

    • product-description6
    • product-description7
    • product-description8

    Structures

    • product-description3

      1. Laser source: Max/Raycus

    • product-description4

      2. Laser cutting head: Ray Tools

    • product-description5

      3. Operating system: Baichu FSCUT3000

    • product-description6

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120P Semi Auto Square Tube Laser Tube Cutting Machine parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Beut

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Semi Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.05mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8856*width1876*height2172mm
