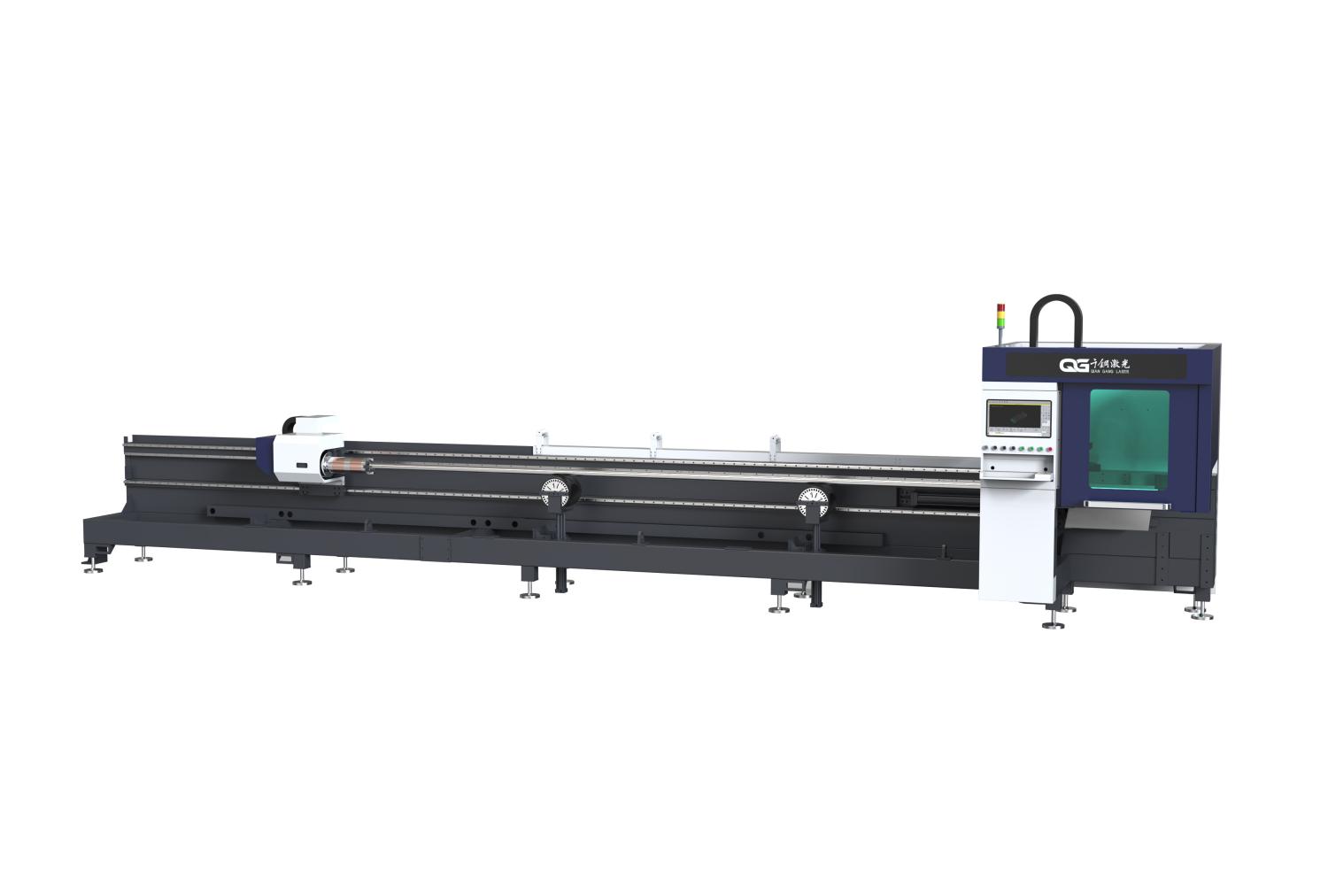

G120C manual laser pipe cutting machine+blue-white
Product Detail
Product introduction
In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipes or efficient cutting tasks for slightly thicker pipes, it can perform excellently and effortlessly.
Features
Application
Parameters
|
Model |
G120C |
|
Laser Power (W） |
1500/2000/3000/6000 |
|
Cutting range (MM) |
Circumference:10-120 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H: 8874*1270*2175 |
|
Body + Rack size (MM) |
manual(L*W*H): 8856*1720*2175 |
|
Machine weight（kg） |
≈3000 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈40 |
Samples
Structures
-
1.Laser source: Max/Raycus
-
2.Laser cutting head: Raytools / Ospri / Boci
-
3.Operating system: Bochu FSCUT3000
-
4.Servo motors: HCFA
-

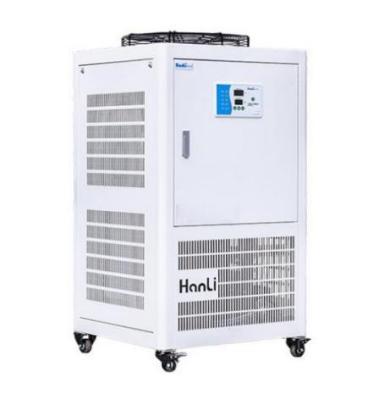

5. Water chiller: Hanli
Details
|
G120C Manual Laser pipe Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri / Raytools / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Pneumatic |
|
Servo motor |
HCFA |
|
Guide rail slider |
Taiwan TBI |
|
Pipe processing range |
10-120MM |
|
Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
|
Minimal cutting length |
1mm |
|
Loading length |
Automatic : 6250mm |
|
Thickness of cutting material |
Depending on laser power (8.0mm thickness per 3000W) |
|
Cutting slit width |
0.1-0.15mm |
|
Machine tool repeated positioning accuracy |
±0.02mm |
|
Maximal acceleration |
1.6G |
|
Voltage |
380V/50Hz/60Hz |
|
Total weight of equipment |
About 3 tons |
|
Equipment dimension |
Length8856*width1720 *height2175mm |
