Laser Pipe Cutting Machine
01
Manual Laser Pipe Cutting Machine Equipment
Product Detail
The factory that specializes in manufacturing laser pipe cutting machines is us. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, completely automatic laser pipe cutting machines, and precision laser pipe cutting machines for incredibly small tubes. We are able to modify the laser machines to meet your needs. Industrial production, electronic communications, and medical devices are just a few of the industries that use our G240P Manual Laser Pipe Cutting Machine Equipment extensively for pipe processing.
Product introduction
With laser power ranging from 1500w to 6000w, the G240P Manual Laser Pipe Cutting Machine Equipment is made to cut a variety of small and medium-sized pipes. It has a machine bed that is attached to the side for stability, increased loading capacity, and improved shock resistance. Reverse two-chuck cutting produces short tailings of around 100 mm while using a lot of material. Processing accuracy is ensured by a servo support mechanism, double cutting stations, and a two-chuck structure.
Features
1. Quick and extremely stable; typically, 2500–3500 segments per hour are specified.
2. Adopt a widely used configuration tube that is high-cost, high-performing, and appropriate for precision machining of big and small tubes.
3. There are more flexible double-chuck controls and the ability to directly alter the pipe length to achieve fool-like operation;
4. There are several cutting types, including elliptical, square, round, channel, angle, and l-beam pipes, among other arbitrary pipes.
Application
This G240P Manual Laser Pipe Cutting Machine Equipment can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G240P |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-240 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H:8856*1365*2172 |
|
Body + Rack size (MM) |
L*W*H:8856*1365*2172 |
|
Machine weight（T） |
≈3 |
|
Acceleration(G) |
≈1 |
|
Tailings length(MM) |
≈100 |

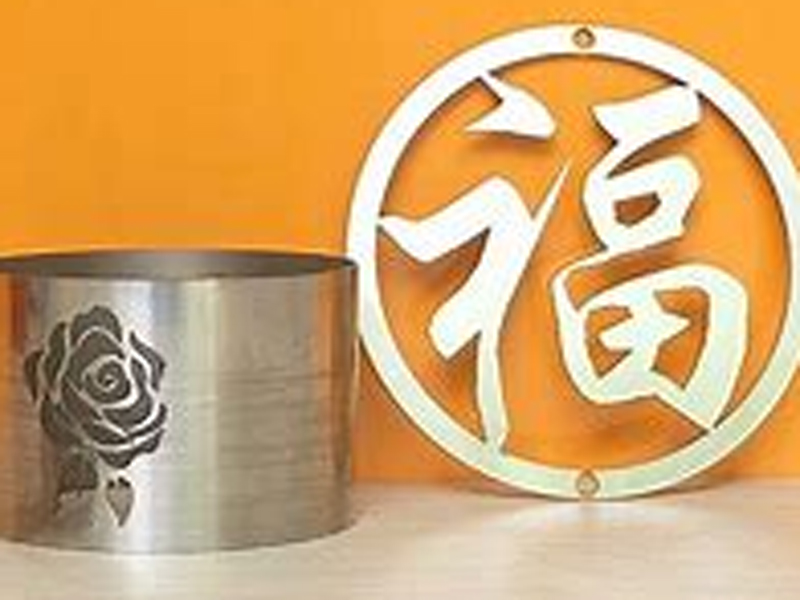

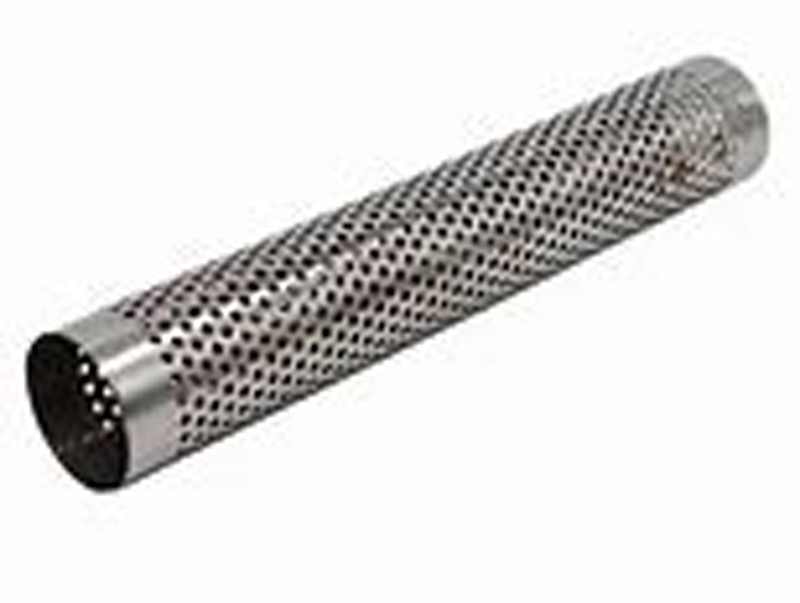

Samples
Structures
-
1. Laser source: Max/Raycus
-
2. Laser cutting head: Ray Tools
-
3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
G240P Manual Laser Pipe Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-240MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Hand Feeding: 1000mm-7000mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3 tons |
| Equipment dimension |
Length8856*width1365*height2172mm |
