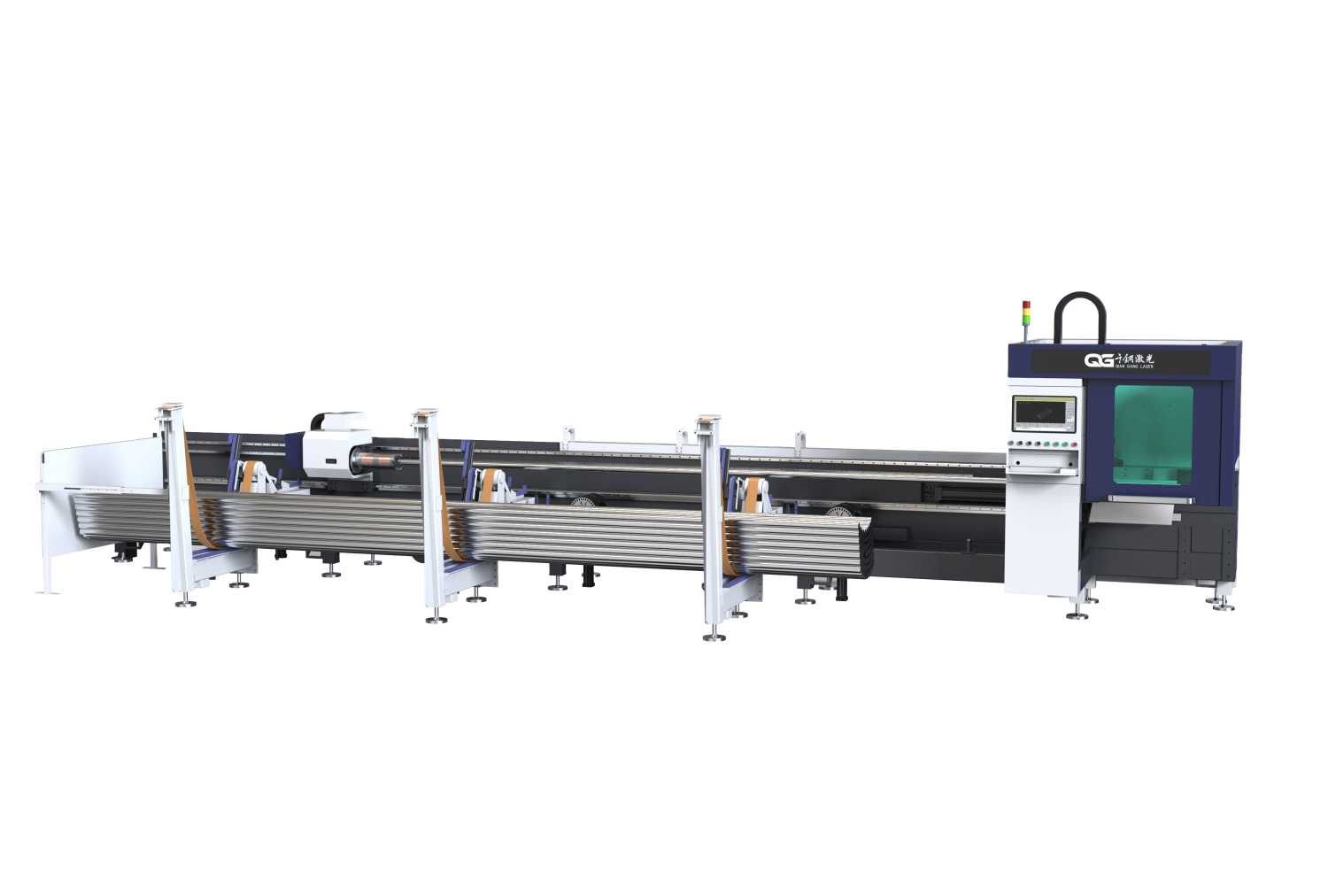

G120C fully-automatic laser pipe cutting machine+blue-white
Product Detail
Product introduction
In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipes or efficient cutting tasks for slightly thicker pipes, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feeding receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipes, but also due to its automated operation, reduces the demand for manual intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.

Features
Application



Parameters
|
Model |
G120C |
|
Laser Power (W) |
1500/2000/3000/6000 |
|
Cutting range (MM) |
Circumference:10-120 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H: 8874*1270*2175 |
|
Body + Rack size (MM) |
Fully-automatic(L*W*H): 8856*2949*2175 |
|
Machine weight(kg) |
≈4000 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈40 |
Samples



Structures
-


1.Laser source: Max/Raycus
-
2.Laser cutting head: Raytools / Ospri / Boci
-

3.Operating system: Bochu FSCUT3000
-

4.Servo motors: HCFA
-

5. Water chiller: Hanli
Details
|
G120C fully-automatic Laser pipe Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri / Raytools / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Pneumatic |
|
Servo motor |
HCFA |
|
Guide rail slider |
Taiwan TBI |
|
Pipe processing range |
10-120MM |
|
Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
|
Minimal cutting length |
1mm |
|
Loading length |
Automatic : 6250mm |
|
Thickness of cutting material |
Depending on laser power (8.0mm thickness per 3000W) |
|
Cutting slit width |
0.1-0.15mm |
|
Machine tool repeated positioning accuracy |
±0.02mm |
|
Maximal acceleration |
1.6G |
|
Voltage |
380V/50Hz/60Hz |
|
Total weight of equipment |
About 4 tons |
|
Equipment dimension |
Length8856*width2949 *height2175mm |
