Laser Pipe Cutting Machine
01
Manual Laser Pipe Cutting Machine Equipment
Product Detail
We are the preferred manufacturer, specializing in laser pipe cutting machines. mainly produce high-efficiency three-dimensional, five-axis multifunctional laser pipe cutting machines, fully automated laser pipe cutting machines, and precision laser pipe cutting machines for extremely small tubes. To meet your needs, we may modify the laser machines. Our Fiber High-speed 3D Full-automatic Laser Tube Cutting Machine Model G240C is a well-liked pipe processing device used in the electronic communications, industrial manufacturing, and medical device sectors.
Product introduction
With laser power ranging from 1500w to 6000w, the G240C model is a manual precision laser tube cutting machine that can cut a range of small and medium-sized pipes. Stability, increased loading capacity, and improved shock resistance are all provided by its side-attached machine bed. Two-chuck cutting in reverse results in tailings that are about 100 mm short and consumes a lot of material. A two-chuck construction, twin cutting stations, and a servo support system are employed to ensure processing accuracy. An automated loading and unloading platform lowers labor expenses and boosts productivity. The laser strength ranges from 1500 to 6000, and the cut range is circumference.
Features
1. The acceleration is five to six times more efficient at 1.6G than typical pipe cutting machines.
2. This machine can cut most types of pipes, such as round, square, oval, and special-shaped pipes. Sound structurally, the electrical control components are imported accessories that allow for 24-hour operation. industry-wide operating system, good optimization, fast response, and user-friendliness. Establish the optimal harmony between speed, function, and stability;
3. Theoretically, the machine can cut tailings of around 60mm, which drastically lowers material loss. Additionally, the tailings' narrow blind area reduces post-process and saves materials.
4. Follow-up cutting: The built-in height adjustment simplify the handling of distorted tubes.
Application
This Model G240C Manual Laser Pipe Cutting Machine Equipment can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G240C |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-240 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H:8874*1720*2175 |
|
Body + Rack size (MM) |
L*W*H:8874*1720*2175 |
|
Machine weight（T） |
≈3.5 |
|
Acceleration(G) |
≈1 |
|
Tailings length(MM) |
≈100 |
Samples
Structures
-

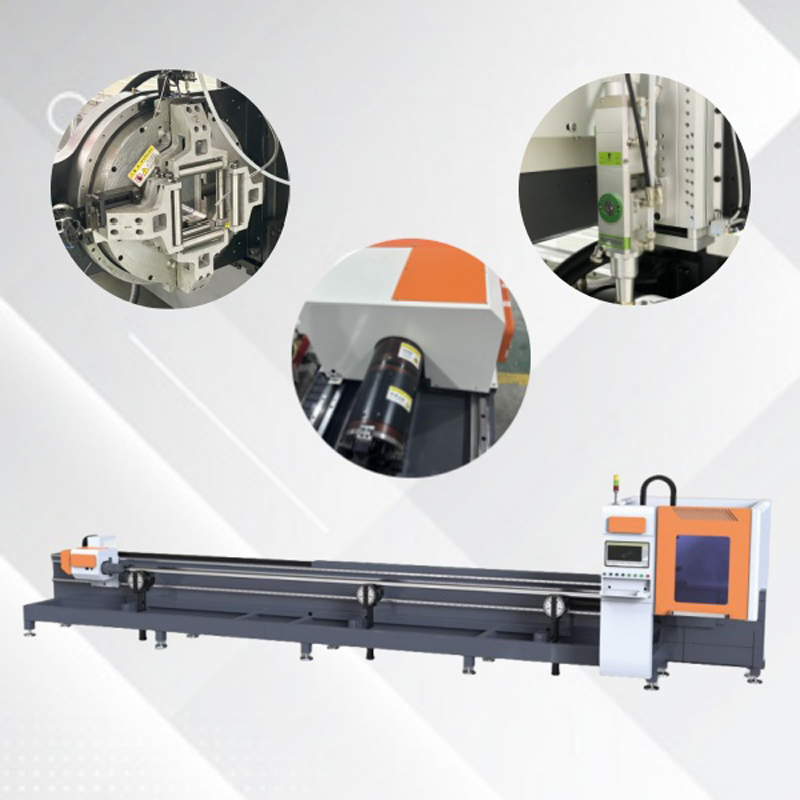

1. Laser source: Max/Raycus
-
2. Laser cutting head: Ray Tools / Ospri / Bochu
-
3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
Model G240C Manual Laser Pipe Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools / Ospri / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-240MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Hand Feeding: 1000mm-7000mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3 tons |
| Equipment dimension |
Length8874*width 1720*height2175mm |
