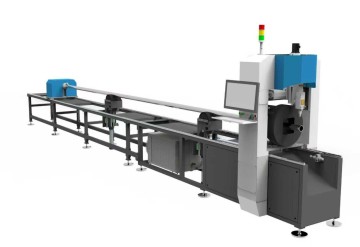

G120F semi-auto feeding high-speed laser tube cutting machine
Product Detail
We are a manufacturer specializing in the production of high-speed laser tube cutting machines. We can tailor laser equipment according to your specific needs. Our G120F semi-auto feeding high-speed laser tube cutting machine has been widely applied in various fields such as hardware accessories, hardware furniture, bathroom, medical equipment, sports equipment, automobile production, building decoration, electrical equipment, elevator equipment and other major fields of metal pipe processing. Specifically for stainless steel pipe accessories, automobiles, motorcycles, electric vehicles, bicycles, air conditioning, railings, guard rail, anti-theft net, shelves and other industries pipe processing.
Product introduction
The G120F semi-auto feeding high-speed laser tube cutting machine has achieved an extremely small tail waste area in its design. This not only saves materials but also reduces subsequent processes, thereby lowering labor costs. This equipment can precisely meet the processing requirements of various and complex pipe materials.
In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipes or efficient cutting tasks for slightly thicker pipes, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with a semi-automatic feeding receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipes, but also due to its semi-automated operation, reduces the demand for manual intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipes or efficient cutting tasks for slightly thicker pipes, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with a semi-automatic feeding receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipes, but also due to its semi-automated operation, reduces the demand for manual intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
Features
1.Time and labor-saving with a simple structure and easy operation.Efficiency is 5–6 times higher than that of conventional pipe cutting machines.
2.Follow-through cutting: Standard integrated height regulator ensures effortless processing of deformed pipes.
3.This is a model that doesn't require drawing,the operation is simple and convenient, and the cutting range is wide. Various specifications of cut pieces can be selected, including oval, circular, square, channel steel, angle steel, I-beam steel, and other various-shaped pipes.
4.There is no blind area in tailings, which reduces the subsequent processing workload and saves materials: the theoretical tailings cutting depth of this equipment is approximately 60 mm, which significantly reduces material loss.
Application
The G120F semi-automatic feeding high-speed laser tube cutting machine demonstrates unparalleled versatility in metal pipe processing, whether addressing automotive structural components like exhaust pipes and chassis brackets, or crafting medical-grade tubing for surgical instruments and implantable devices;whether processing round/square tubes for agricultural machinery components or tackling complex profiles needed in aerospace fuel systems;whether handling stainless steel kitchenware or electronic cooling fins, the G120F semi-automatic feeding high-speed laser pipe cutting machine redefines precision through its combination of speed, flexibility, and minimal heat-affected zones.
Parameters
|
Model |
G120F |
|
Laser Power (W） |
1500/2000/3000/6000 |
|
Cutting range (MM) |
Circumference:10-120 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6500 |
|
Body + Rack size (MM) |
Semi-automatic(L*W*H): 8004*1747*1916 |
|
Weight（kg） |
Main Body ≈2000 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈60 |

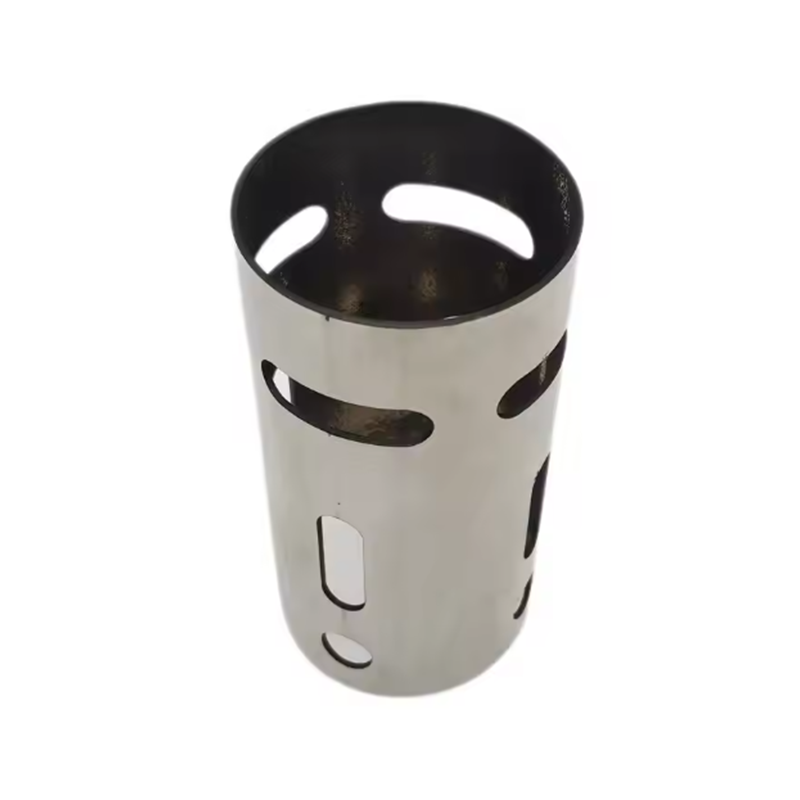

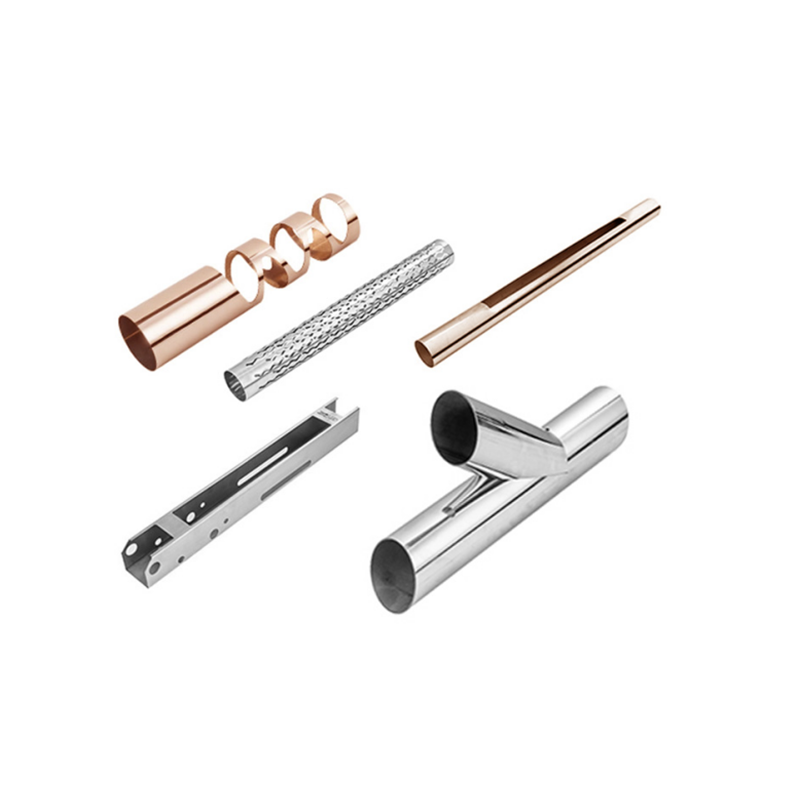

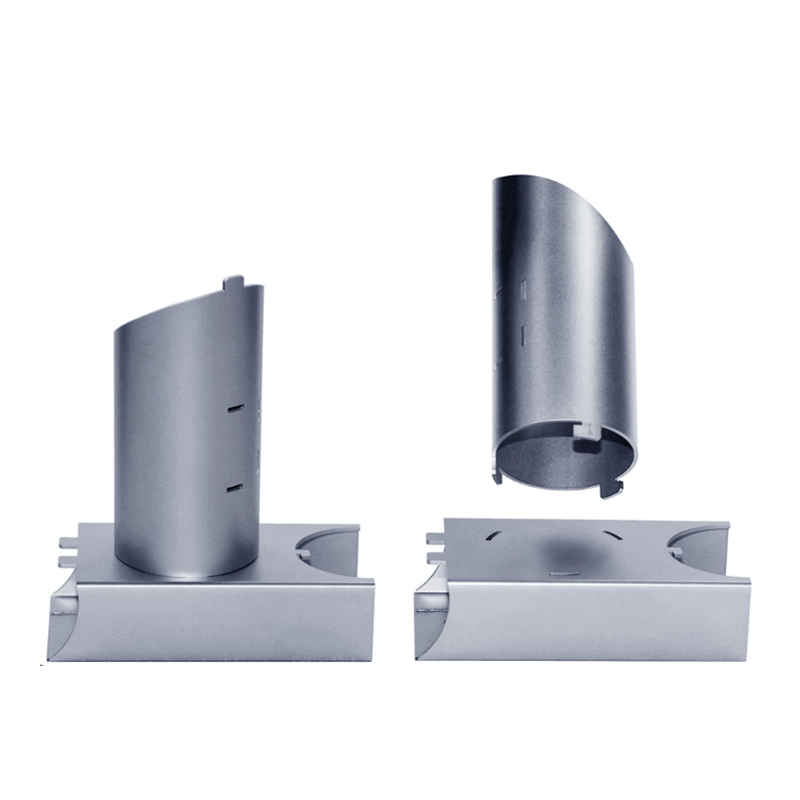

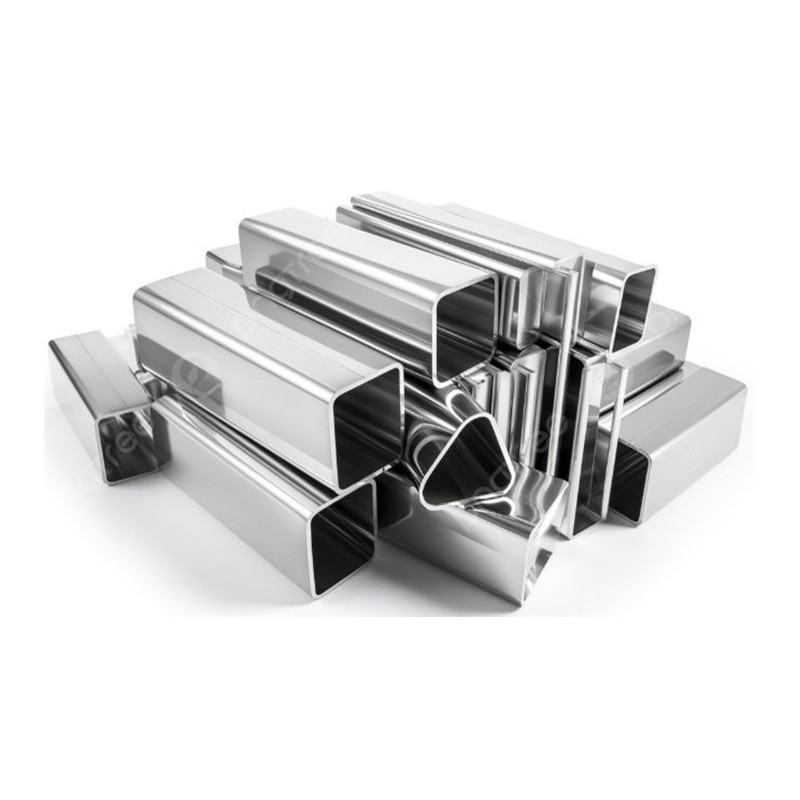

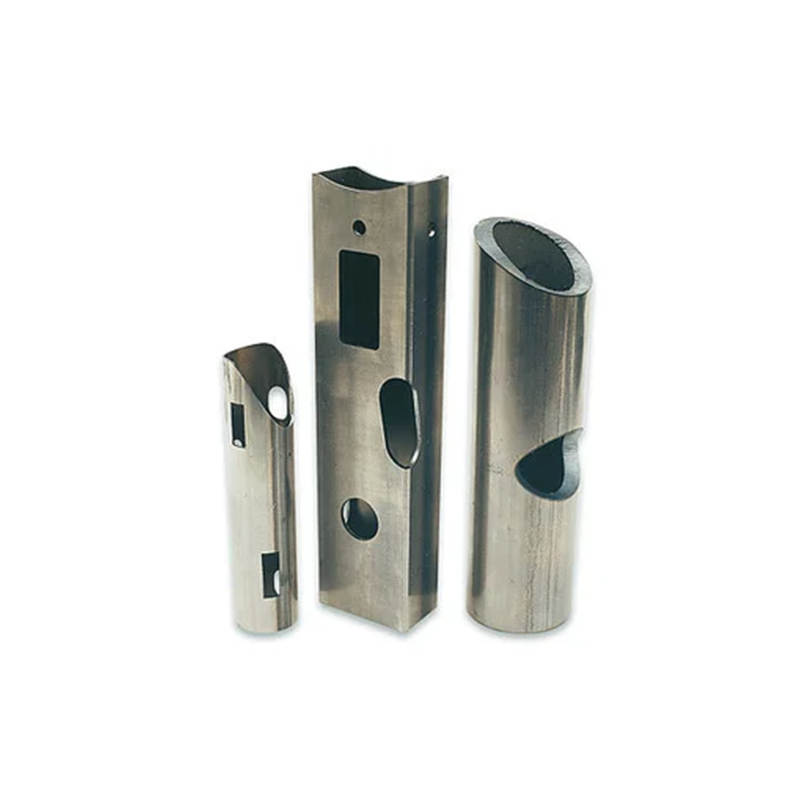

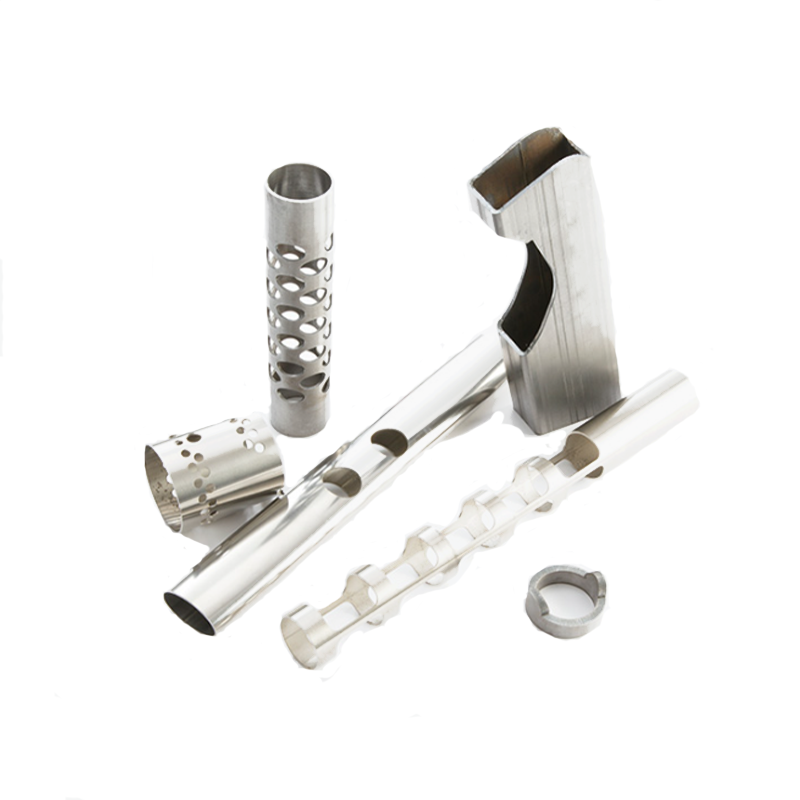

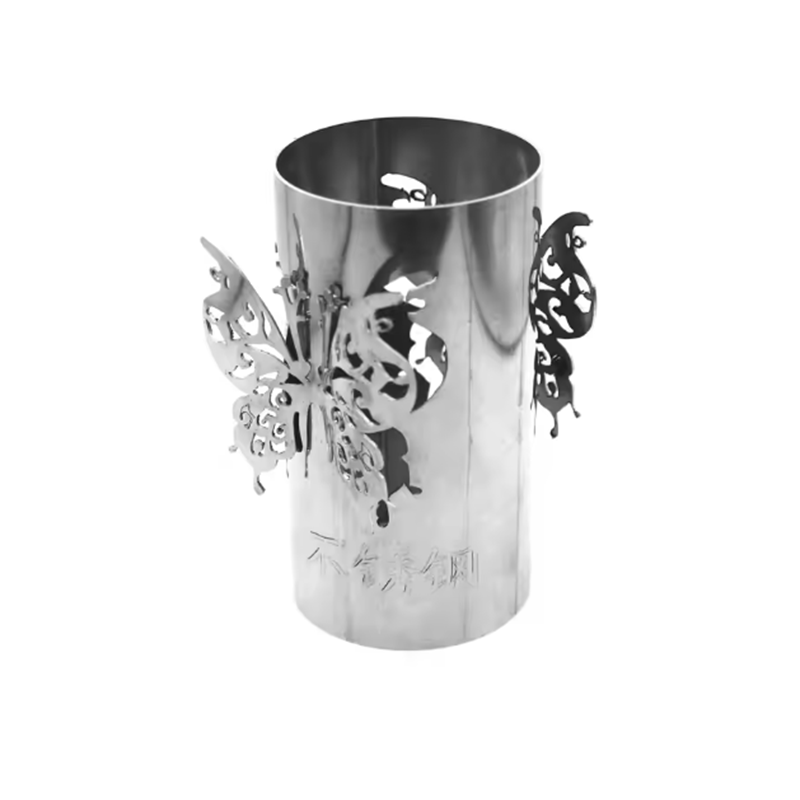

Samples
Structures
-
1.Laser source: Max
-
2.Laser cutting head: Weihong
-
3.Operating system: Weihong Control System
-
4.Servo motors: (Weihong)
-
5. Water chiller: Hanli
Details
|
Modification |
G120F |
|
Resonator (W) |
1500 |
|
Maximum pipe length(mm) |
6500 |
|
Maximum diameter of round pipe(mm) |
Ø 10-120 |
|
Maximum profile size Pipes(mm) |
口 10*10 - 120*120 |
|
Maximum rotational speed, W-axis(rpm) |
200 |
|
Maximum travel speed, X, Y axis(m/min) |
120 |
|
Acceleration (G) |
1.6 |
|
Positioning accuracy(mm) |
±0.05 |
|
Repositioning accuracy(mm) |
±0.02 |
|
Chuck drive |
Pneumatic |
|
Steady rest drive |
Pneumatic |
|
Length of the receiving table(mm) |
1500 - 3000 |
|
Dimensions of the machine (mm) |
Manual (L*W*H): 8004*1212*1916 |
|
Weight (kg) |
Main Body: 2000 |
|
Total power (kw) |
17 |
|
Operating temperature (°C) |
5 - 35 |
|
Voltage （V） |
380V/50Hz |
