Laser Pipe Cutting Machine
01
High-speed 3D Semi-automatic Laser Tube Cutting Machine Side Hanging
Product Detail
Our area of expertise as a manufacturer is creating laser pipe cutting equipment. specialize in manufacturing precision laser pipe cutting machines for incredibly small tubes, semi-automated laser pipe cutting machines, and high-efficiency three-dimensional, five-axis multifunctional laser pipe cutting machines. We are able to adapt the laser machines to your needs. Our Model G120C full-automatic Fiber Laser Tube Cutting Machine Equipment is commonly used for pipe processing in industries such industrial manufacturing, medical devices, and electronic communications.
Product introduction

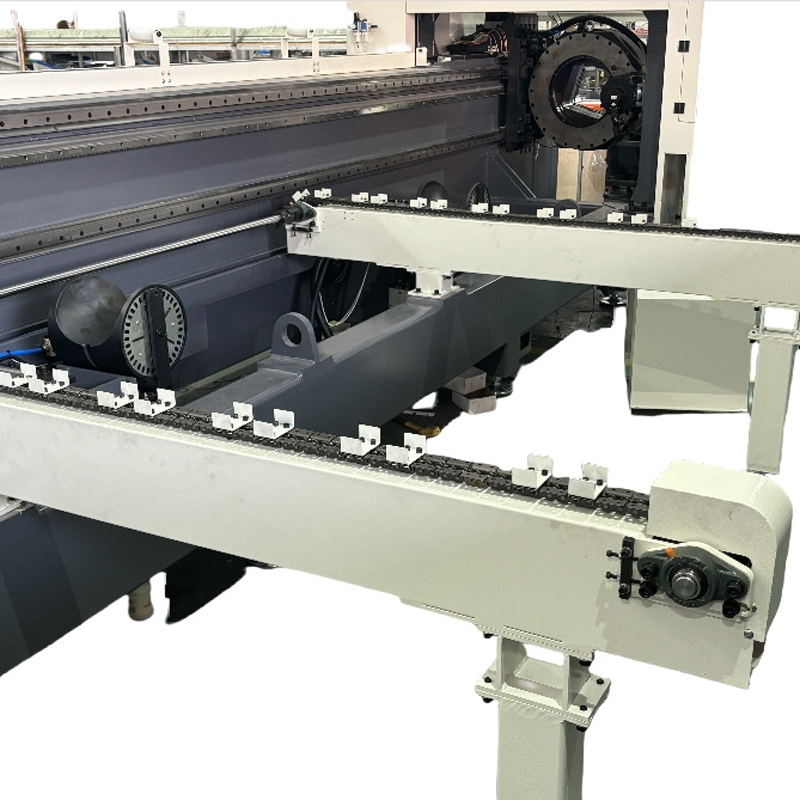

With a laser power range of 1500w to 6000w, the G240C semi-automatic precision semi-automatic laser tube cutting machine can cut a variety of small and medium-sized tubes. The machine bed, which has a great load-bearing capacity, good stability, and good impact resistance, is positioned on the side. Reverse cutting the double chucks can result in a short tail of roughly 100 mm and a high material utilization rate. Accurate processing is guaranteed by the double chuck construction, double cutting station, and servo support mechanism. The automated loading and unloading platform lowers labor expenses while increasing production efficiency. The laser has a circular cutting range and a 1500–6000 power range.
Features
1. It can accelerate up to 1.6G, which is five to six times more efficient than typical pipe cutting machines.
2. This machine is capable of cutting a wide range of pipe shapes, such as round, square, oval, and special-shaped pipes. The electronic control components are sound structural additions that allow for 24-hour operation. comprehensive optimization, speed, ease of use, and industry-wide operating system. Establish the optimal ratio of function, speed, and stability;
3. Theoretically, the cutting tailings of the equipment are around 60mm, which greatly minimizes material loss. In addition to saving materials, this tiny blind area of the tailings reduces post-processing.
4. Follow-up cutting: The standard integrated height adjuster makes handling distorted tubes easy.
Application

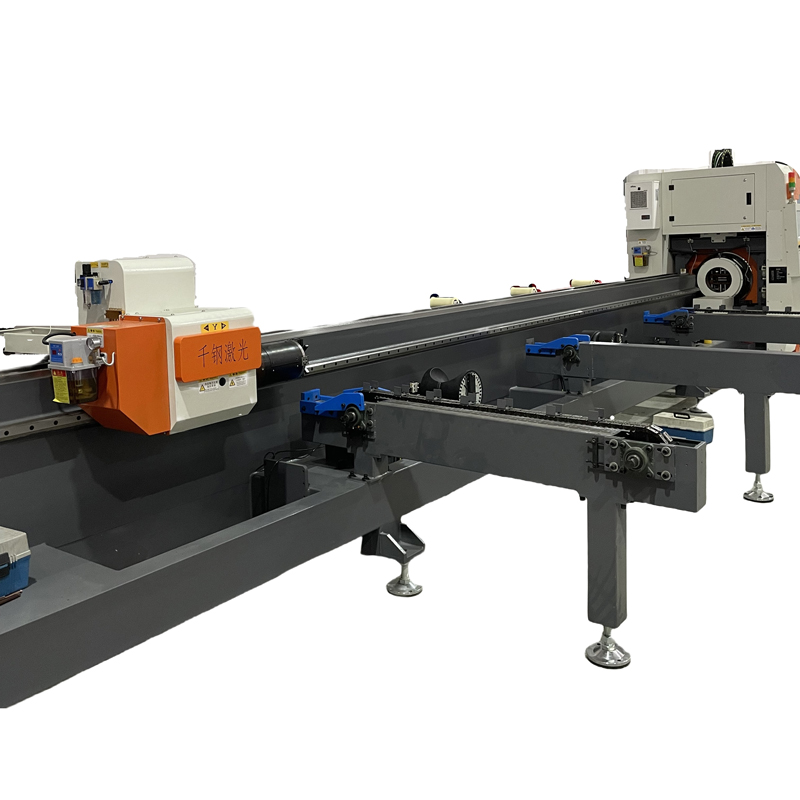

This Model G240C High-speed 3D Semi-automatic Laser Tube Cutting Machine Side Hanging can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G240C |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-240 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H:8874*1720*2175 |
|
Body + Rack size (MM) |
Semi-automatic(L*W*H):8856*2170*2175 |
|
Machine weight（T） |
≈3.5 |
|
Acceleration(G) |
≈1 |
|
Tailings length(MM) |
≈100 |

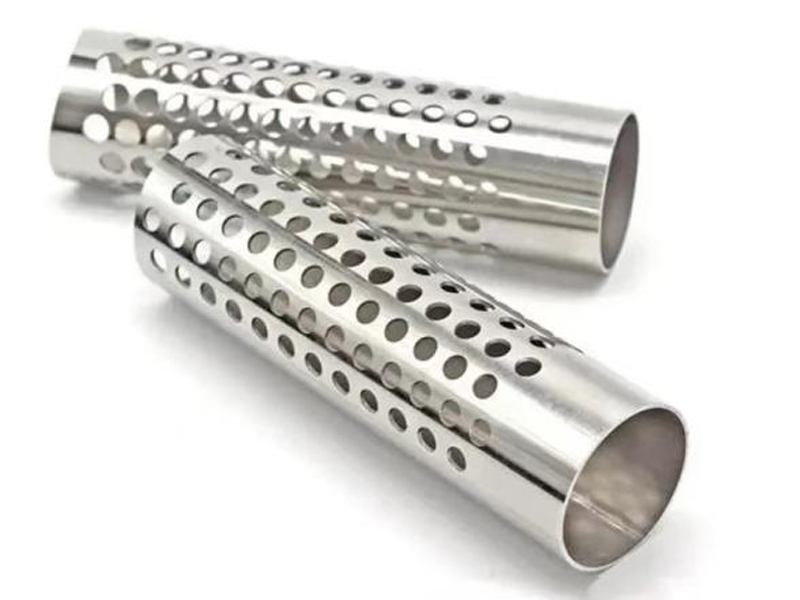

Samples

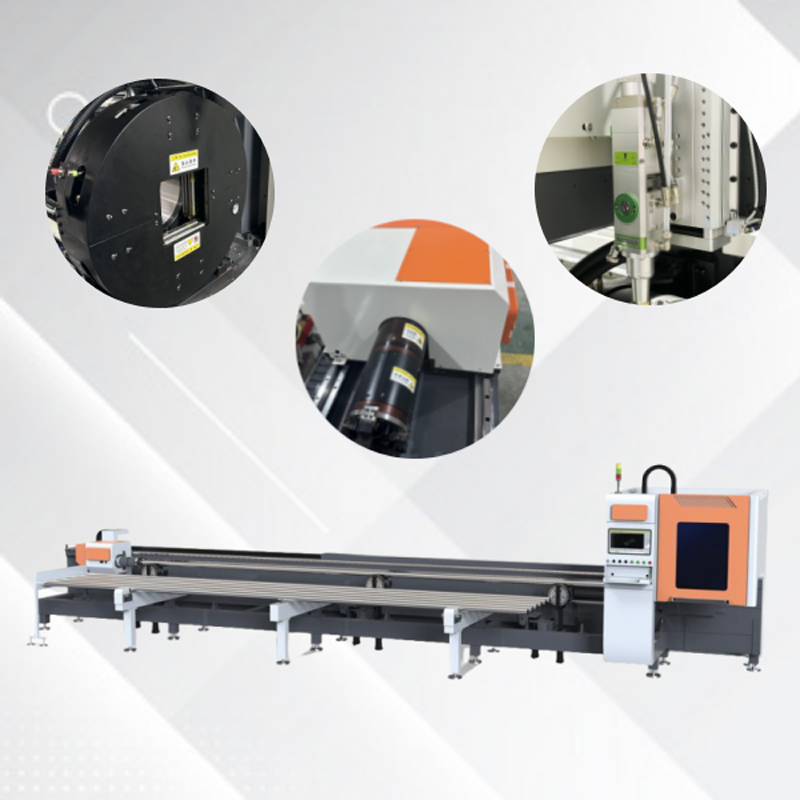

Structures
-
1. Laser source: Max/Raycus
-
2. Laser cutting head: Ray Tools / Ospri / Bochu
-
3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
Model G240C High-speed 3D Semi-automatic Laser Tube Cutting Machine Side Hanging parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools / Ospri / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-240MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length | Automatic : 6000- 6250mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3.5 tons |
| Equipment dimension |
Length8856*width2170*height2175mm |
