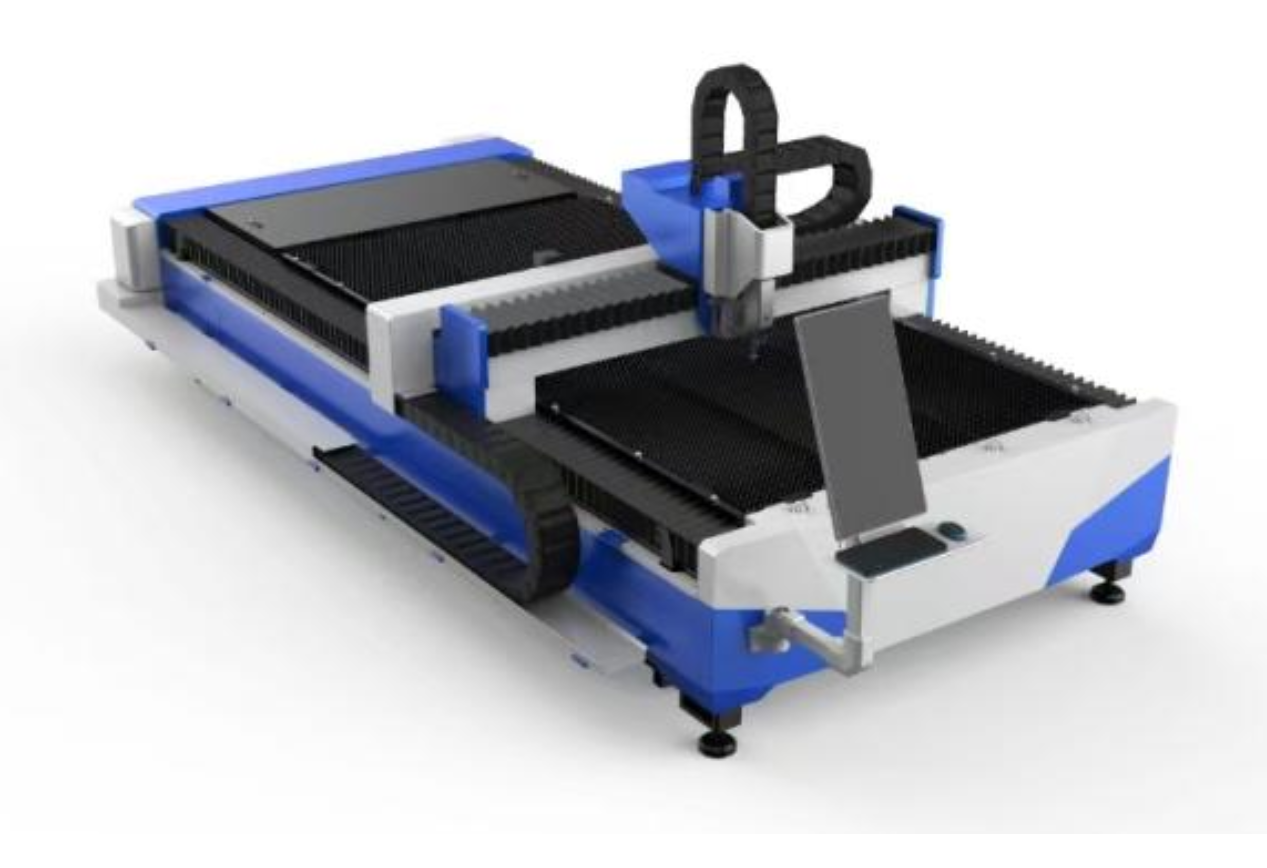

G6020 laser sheet cutting machine
Product Detail
We are a manufacturer specializing in the production of laser sheet cutting machines. we can tailor laser equipment according to your specific needs. Our G6020 laser sheet cutting machine has been widely applied in various fields such as hardware accessories, hardware furniture, bathroom, medical equipment, sports equipment, automobile production, building decoration, electrical equipment, elevator equipment and other major fields of metal processing.
Features
Machine body
A machine designed using the principle of structural dynamics and the finite element method of variable analysis technology.The base of the bed has a static character. The base structure of the machine is made of Q235B and 45# steel.The plate is welded as a whole, and it is strictly implemented (annealed) twice according to international machine tool standards.Aging (heat treatment + natural aging 72 hours) treatment, large high-precision gantry.The milling machine is a one-time machining form, and these design and processing methods ensure that the machine tool has.Excellent seismic resistance, high
Application
Applied in many fields: hardware accessories,hardware furniture, bathroom, medical equipment,sports equipment, automobile production, building decoration, electrical equipment, elevator equipment and other major fields of metal processing.

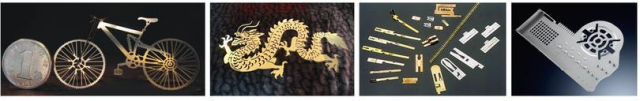

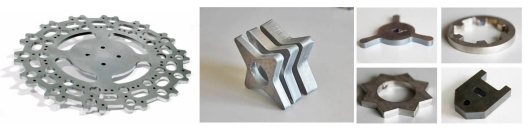

Sample
Structures
-
1.Laser source: Max
-
2.Laser cutting head: Boci
-
3.Operating system: Bochu FSCUT3000
-

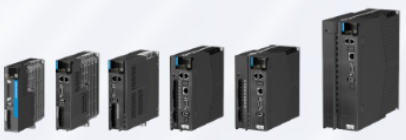

4.Servo motors: Inovance
-

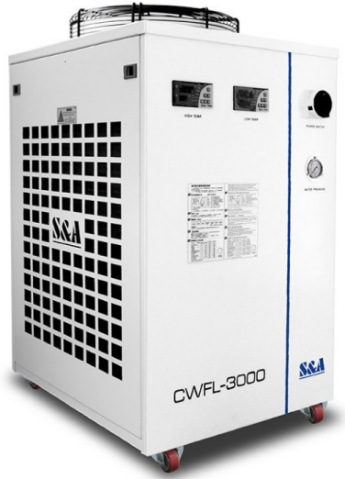

5. Water chiller: S&A
SPECIFICATIONS
|
Modification |
G6020 |
|
Resonator (W) |
12000 |
|
Maximum sheet size(mm) |
6000*2000 |
|
Working Speed |
55mm / min |
|
Cutting Thickness (mm) |
25 |
|
Exercise itinerary (mm) |
X : 1510 |
|
Y: 3010 |
|
|
Z: 190 |
|
|
Acceleration (G) |
1 |
|
X/Y Positioning accuracy(mm) |
±0.03 |
|
X/Y Repositioning accuracy(mm) |
±0.03 |
|
Maximum table load |
1000 |
|
X/Y Maximum positioning speed |
100 |
|
Weight (kg) |
3000
|
|
Total power (kw) |
12 |
|
Voltage （V） |
380V/ 50HZ / 60HZ / 63A |
