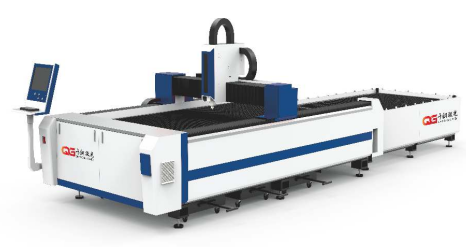

3015H 1500W 2000W 3000W 6000W CNC Fibre Laser Cutting Machine for Metal Sheet Steel
Product Detail
Product introduction
Features
Application
Parameters
|
Processing width and working range |
|
|
Processing size (length × width) |
3000mm×1500mm |
|
X-axis travel |
1524mm |
|
Y-axis travel |
3100mm |
|
Z-axis travel |
370mm |
|
accuracy |
|
|
X, Y-axis positioning accuracy |
±0.05mm/m |
|
X, Y-axis repeat positioning accuracy |
±0.03mm |
|
speed |
|
|
X-Y axis synchronised speed |
100m/min |
|
X-Y axis linked acceleration |
1.0G |
|
Power supply parameters |
|
|
number of sides |
3 |
|
Power supply rated voltage |
380V |
|
frequency |
50Hz |
|
Weight and dimensions |
|
|
Maximum load capacity of workbench |
1100kg |
|
External dimensions (length × width × height) |
8890*2440*2400mm |
Samples

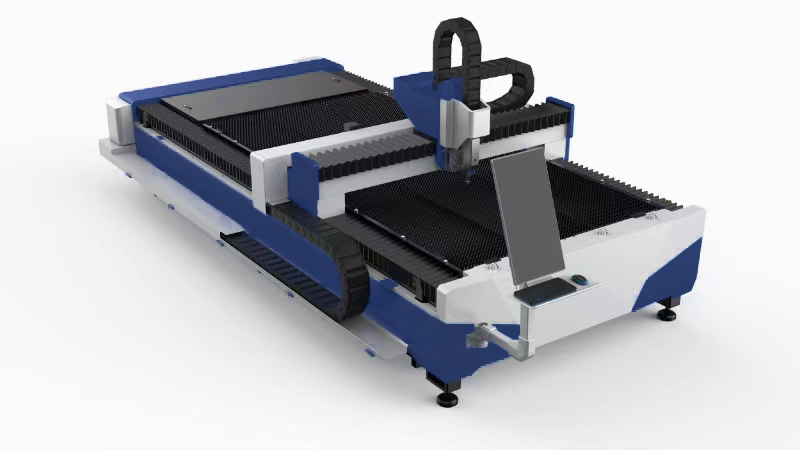

Structures
-
1. Laser source: Max/Raycus
-
2.Laser cutting head: Raytools / Ospri / Boci
-
3. Operating system: Bochu FSCUT3000
-
4.Servo motors: HCFA
-
5. Water chiller: Hanli
-
6.Machine body
-
7.Transmission System
-
8.Gantry beams
-
9.Slag removal system
Details
|
Name |
Quantity |
Brand |
|
Laser source |
||
|
Fiber Laser |
1 unit |
Max / Raycus |
|
Cutting Head |
||
|
Laser Cutting Head |
1 set |
Raytools |
|
Machine Tool Host |
||
|
Machine Mechanical Platform& Accessories |
1 unit |
Standard Configuration |
|
Precision Rack |
1 set |
Jingte JT |
|
Linear Guide |
1 set |
Standard Configuration |
|
Motion Accessories |
||
|
Servo Motor |
4 sets |
HCFA |
|
Drive |
4 sets |
HCFA |
|
Gearbox |
3 units |
Techmag |
|
Auxiliary Gas Control |
||
|
Proportional Valve |
1 set |
Inovance |
|
Operating System |
||
|
CNC System |
1 set |
Bochu System |
|
Operating System |
||
|
Chiller |
1 set |
Hanli |
|
Control Cabinet Air Conditioner |
1 set |
WINHEE / Teyu S&A |
|
Computer Host |
||
|
Industrial Control Computer |
1 unit |
Qiangang Laser Standard Configuration |
