Laser Pipe Cutting Machine
01
High-speed 3D Semi-automatic Laser Tube Cutting Machine Flat Push
Product Detail
The source manufacturer with a focus on laser pipe cutting machines is us. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, completely automatic laser pipe cutting machines, and precision laser pipe cutting machines for incredibly small tubes. We are able to modify the laser machines to meet your needs. Our G240P High-speed 3D Semi-automatic Laser Tube Cutting Machine Flat Push is a popular pipe processing tool used in electronic communications, medical devices, and industrial manufacture.
Product introduction
The G240P semi-automatic Laser Pipe Cutting Machine is made to cut a variety of small and medium-sized pipes. Its laser power ranges from 1500w to 6000w. For stability, increased loading capacity, and improved shock resistance, it has a machine bed that is attached to the side. With a high material consumption rate, two-chuck cutting in reverse produces tailings that are approximately 100 mm short. Accurate processing is guaranteed by a servo support device, multiple cutting stations, and a two-chuck construction.
Features
1. Quick, extremely stable, with a typical specification of 2500–3500 segments per hour.
2. Use industry-standard configuratitube, which is expensive and effective for precision machining of both big and small tubes.
3. The pipe length may be directly modified to achieve fool-like operation, and double-chuck control is more flexible.
4. A variety of cutting kinds are available, including elliptical, round, square, and channel steel, angle steel, l-beam, and other random pipes.
Application
This G240P High-speed 3D Semi-automatic Laser Tube Cutting Machine Flat Push can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G240P |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-240 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H:8856*1876*2172 |
|
Body + Rack size (MM) |
Semi-automatic(L*W*H):8856*1876*2172 |
|
Machine weight（T） |
≈3.5 |
|
Acceleration(G) |
≈1.0 |
|
Tailings length(MM) |
≈100 |

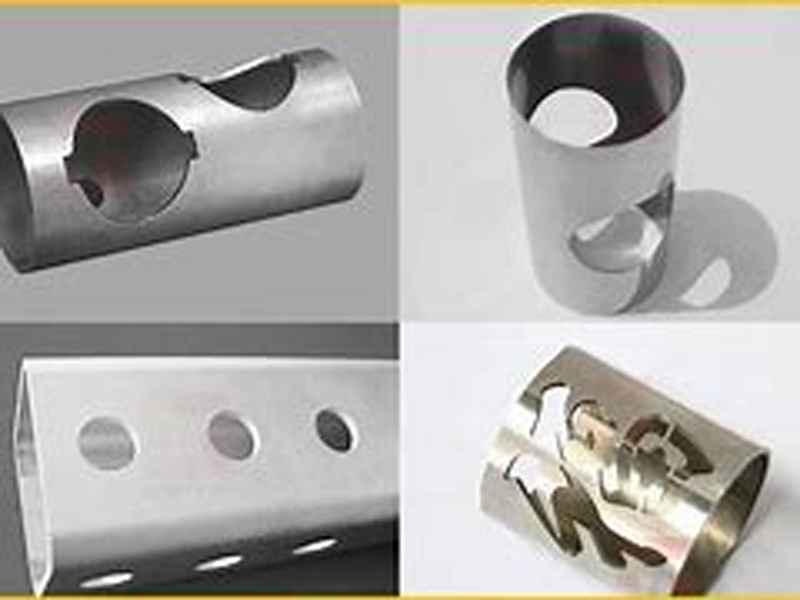

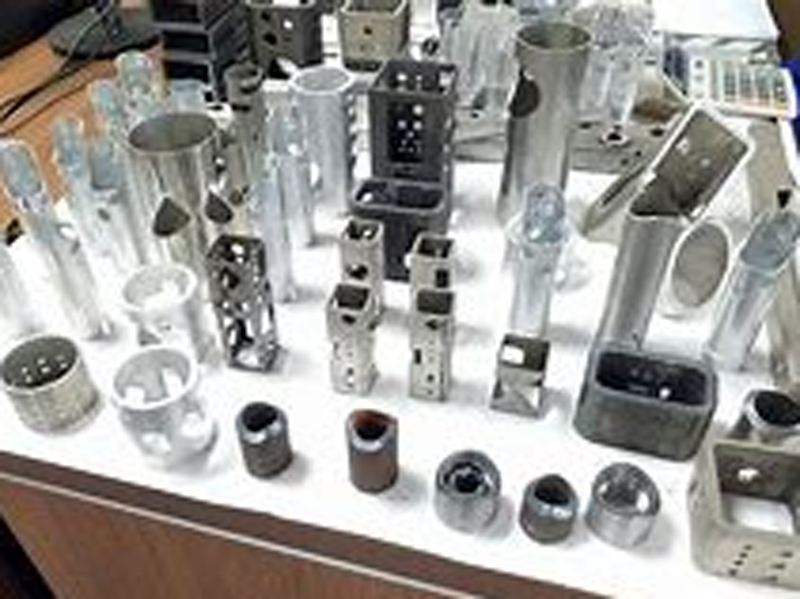

Samples

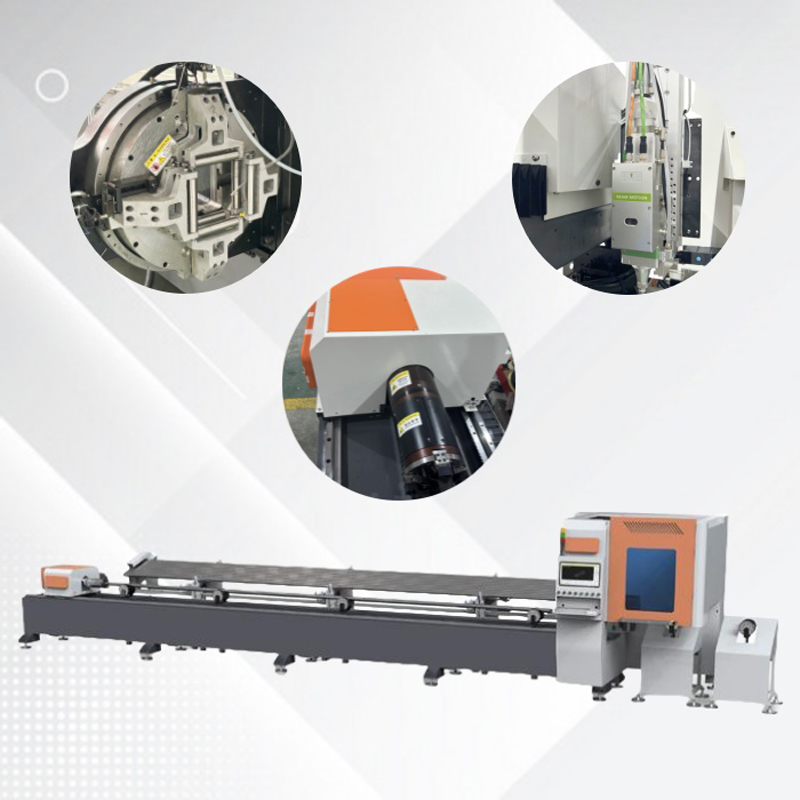

Structures
-
1. Laser source: Max/Raycus
-

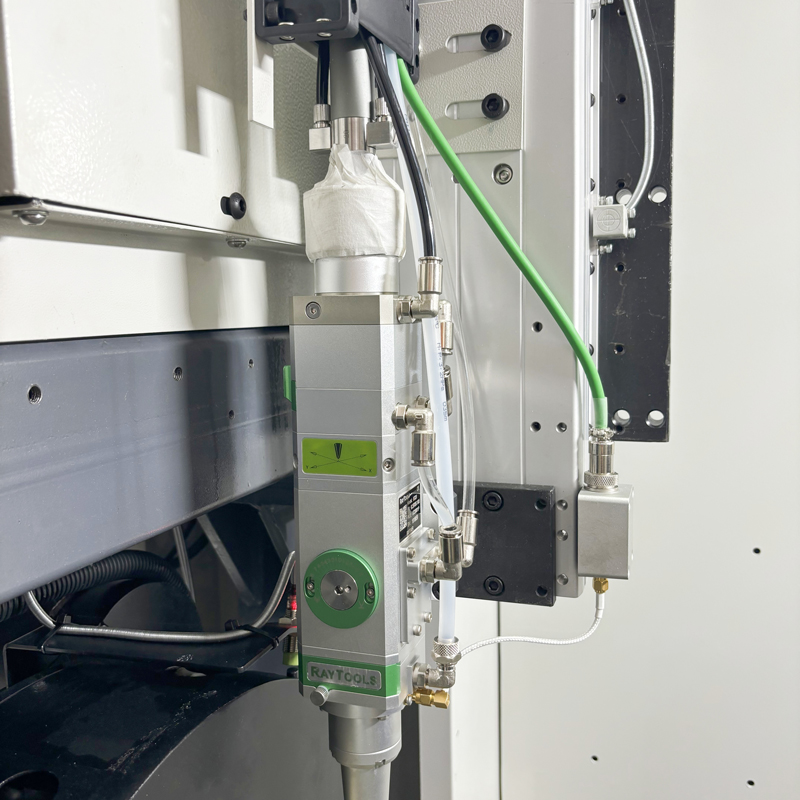

2. Laser cutting head: Ray Tools
-
3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
G240P High-speed 3D Semi-automatic Laser Tube Cutting Machine Flat Push parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools |
|
Water cooling unit |
Hanli |
|

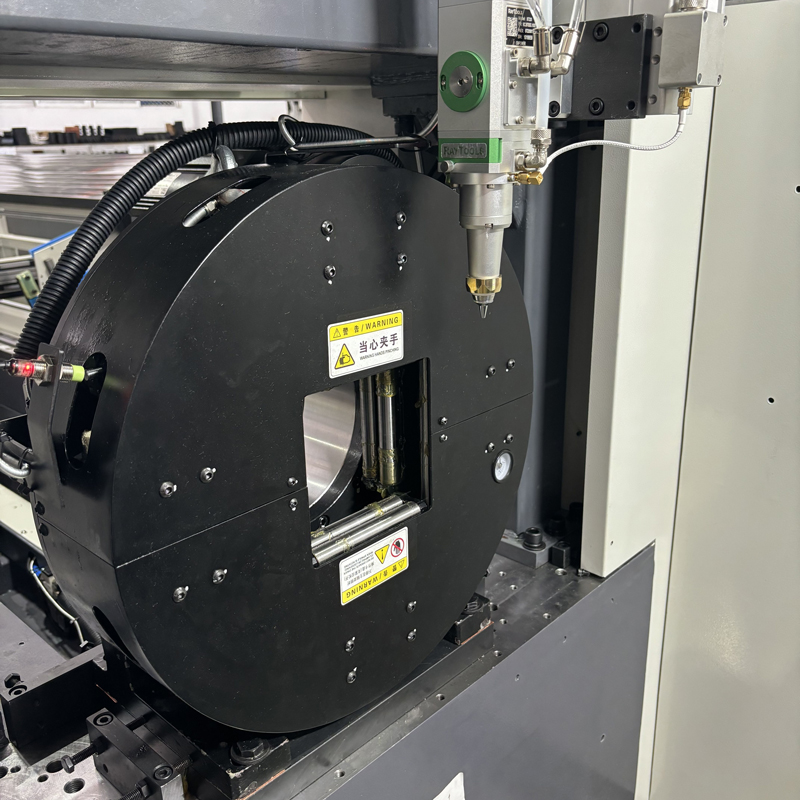

Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-240MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Semi Automatic : 6000- 6250mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3.5 tons |
| Equipment dimension |
Length8856*width1876*height2172mm |
