Fiber Laser Pipe Cutting Machine

G120P

China QIANGANG is a cutting-edge laser equipment manufacturer. When compared to air cutting, the innovative cutting method of the Model G120P Manual Fiber Laser Pipe Cutting Machine significantly reduces the cost of cutting and hanging slag. High-power laser cutting is made more stable and dependable by high-power laser cutting machines. Customers in the rail, steel, heavy industry, and other sectors benefit from increased returns.

    Contact us
    product details

    Product Detail

    We are the company with the source that specializes in laser pipe cutting machines. mainly operate devices such as manual laser pipe cutting machines, precision laser pipe cutting machines for extremely small tubes, and high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines. To suit your requirements, we may alter the laser machines. Our G120P  Loading Square Tube Laser Tube Cutting Machine is frequently used in the electronic communications, industrial manufacturing, and medical device industries for pipe processing.

    Product introduction

    A variety of small and medium-sized pipes can be cut using the G120P Manual Fiber Laser Pipe Cutting Machine, which has a laser power range of 1500w to 6000w. Its side-attached machine bed improves shock resistance, increases loading capacity, and provides stability. With a high material consumption rate, two-chuck cutting in reverse produces tailings that are roughly 60 mm short. To assure processing precision, a servo support mechanism, twin cutting stations, and a two-chuck structure are used.
    product-description1

    Features

    1. Quick and extremely stable; the typical speed is between 2500 and 3500 segments per hour.
    2. Use an economical, industry-standard top flow configuration that works well for precision machines with both large and small tubes.
    3. The double-chuck control provides more flexibility, and the pipe length may be directly adjusted to produce fool-like operation.
    4. Pipes can be square, circular, or elliptical, among other cutting types. Channel steel, angle steel, and i-beams are examples of arbitrary pipes.
    5. Efficient and rapid.

    Application

    This G120P Manual Fiber Laser Pipe Cutting Machine can effectively cut various types of small and medium-sized pipes in 3D.

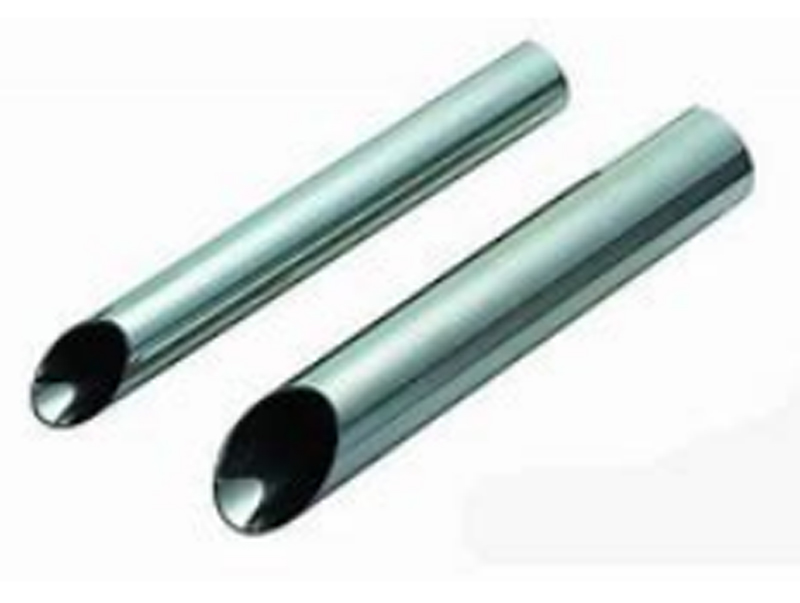

    • product-description3

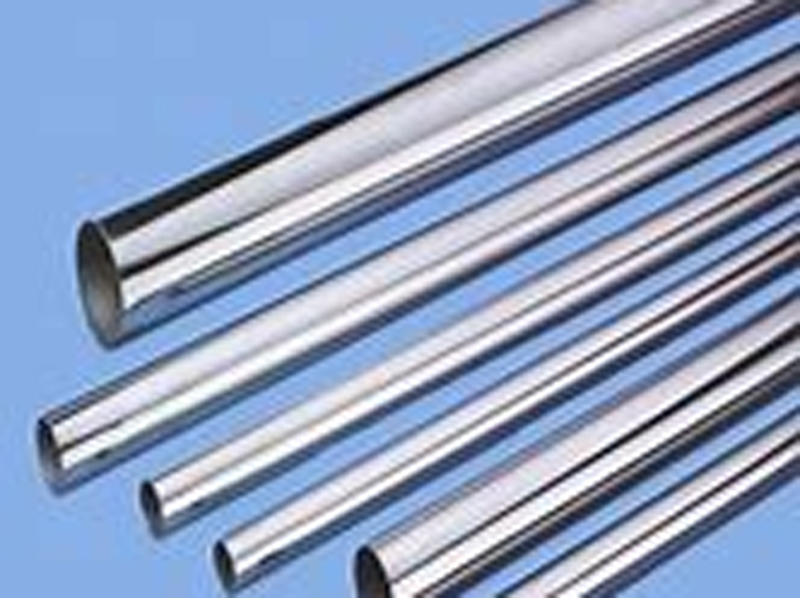

    • product-description1
    • product-description2

    Parameters

    Model

    G120P

    Laser Power (W）

    1500-6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8856*1365*2172

    Body + Rack size (MM)

    L*W*H:8856*1365*2172

    Machine weight（T）

    ≈3

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈60

    Samples

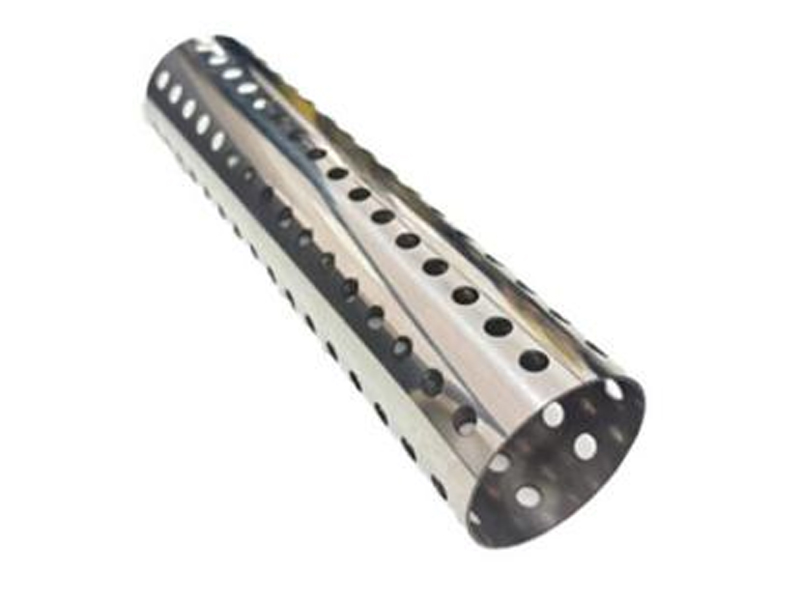

    • product-description6

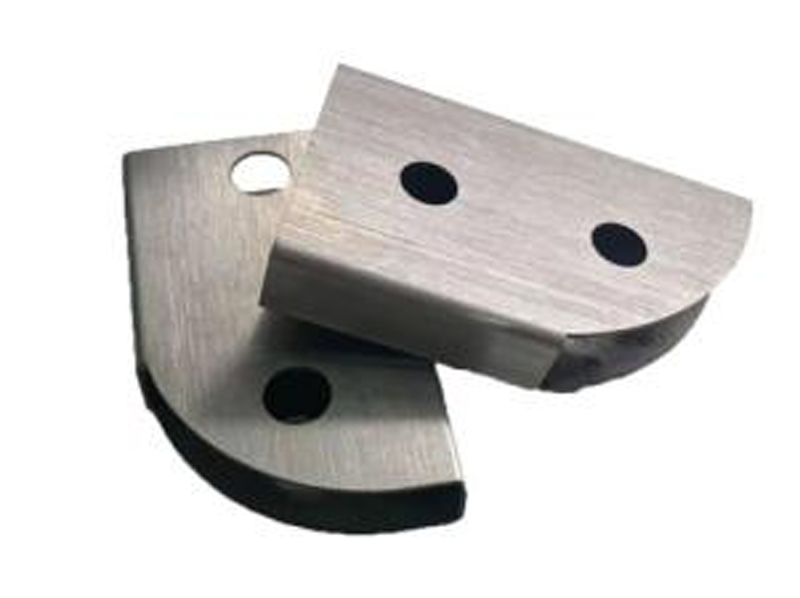

    • product-description7

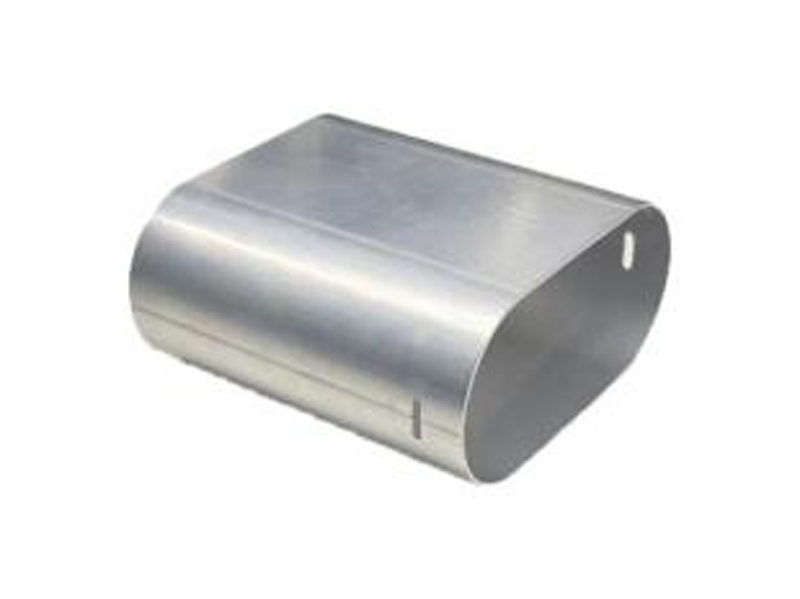

    • product-description8

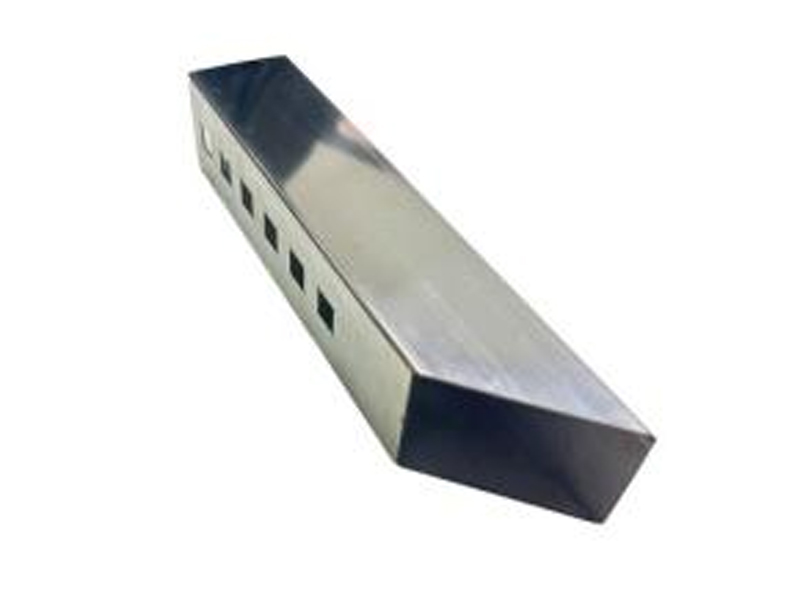

    • product-description9

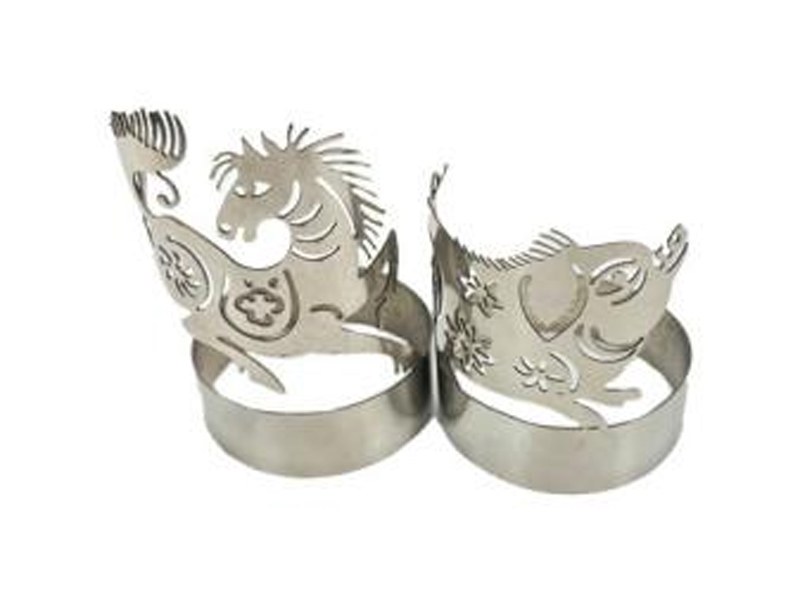

    • product-description10

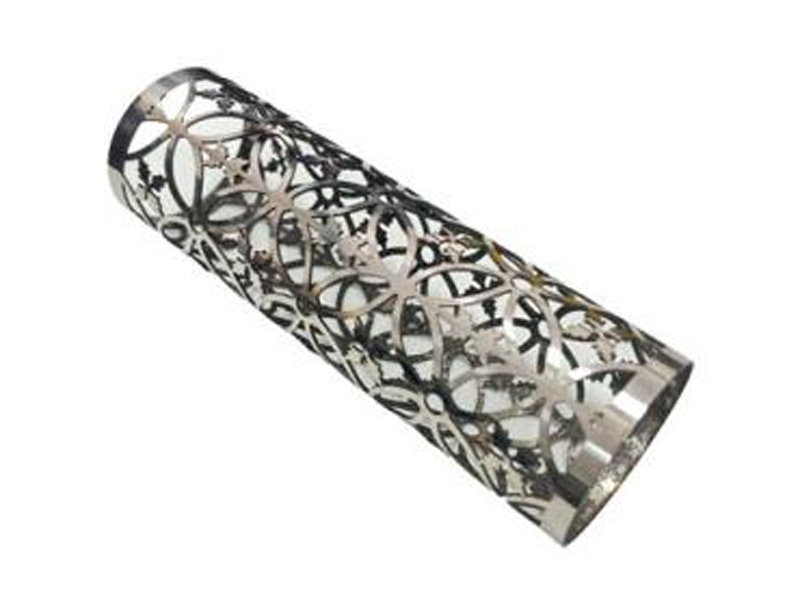

    • product-description11

    Structures

    • product-description3

      1. Laser source: Max/Raycus

    • product-description4

      2. Laser cutting head: Ray Tools

    • product-description5

      3. Operating system: Baichu FSCUT3000

    • product-description6

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120P Manual Fiber Laser Pipe Cutting Machine parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Beut

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Hand Feeding: 1000mm-7000mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 3 tons

    Equipment dimension

    Length8856*width1365*height2172mm
