Fiber High-speed 3D Full-automatic Laser Tube Cutting Machine
Product Detail
With a focus on laser pipe cutting machines, we are the manufacturer of choice. primarily manufacture fully automated laser pipe cutting machines, precision laser pipe cutting machines for incredibly small tubes, and high-efficiency three-dimensional, five-axis multifunctional laser pipe cutting machines. We can alter the laser machines to suit your needs. In industries like industrial manufacture, electronic communications, and medical devices, our Model G240C Fiber High-speed 3D Full-automatic Laser Tube Cutting Machine is extensively utilized for pipe processing.
Product introduction
A variety of small and medium-sized pipes can be cut using the Model G240C Fiber High-speed 3D Full-automatic Laser Tube Cutting Machine, which has a laser power ranging from 1500w to 6000w. For stability, increased loading capacity, and improved shock resistance, it has a machine bed that is attached to the side. Approximately 100mm short tailings are produced with great material usage when two-chuck cutting is done in reverse. To assure processing precision, a servo support mechanism, twin cutting stations, and a two-chuck structure are used. An automated platform for loading and unloading increases productivity and reduces labor expenditures. The laser has a cutting range of around 1500–6000.
Features
1. The acceleration reaches 1.6G, which is five to six times more efficient than that of conventional pipe cutting machines.
2. Easy to use and wide cutting range: This machine can cut a wide range of pipes, including oval, square, round, and custom shaped pipes. The electronic control components are imported add-ons that allow for 24-hour operation and are structurally sound. industry-wide operating system, comprehensive optimization, speed, and user-friendliness. Strike the perfect balance between speed, function, and stability;
3. Material loss is greatly decreased by the equipment's theoretical cutting tailings, which are about 60mm. Additionally, this tiny blind area of the tailings reduces post-process and saves materials.
4. Cutting for follow-up: The standard built-in height adjuster makes handling distorted tubes easy.
Application
This Model G240C Fiber High-speed 3D Full-automatic Laser Tube Cutting Machine can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G240C |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-240 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H:8874*1720*2175 |
|
Body + Rack size (MM) |
Full automatic(L*W*H):8856*2949*2175 |
|
Machine weight（T） |
≈3.5 |
|
Acceleration(G) |
≈1 |
|
Tailings length(MM) |
≈100 |

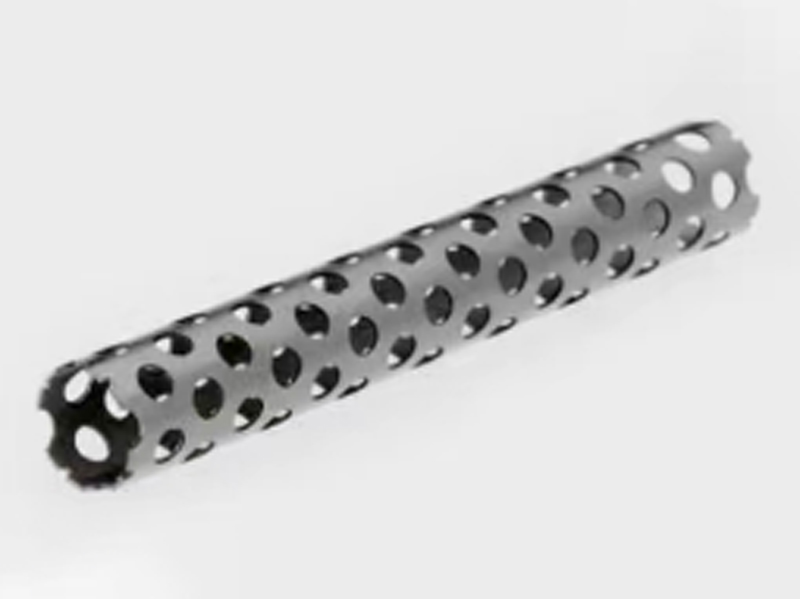

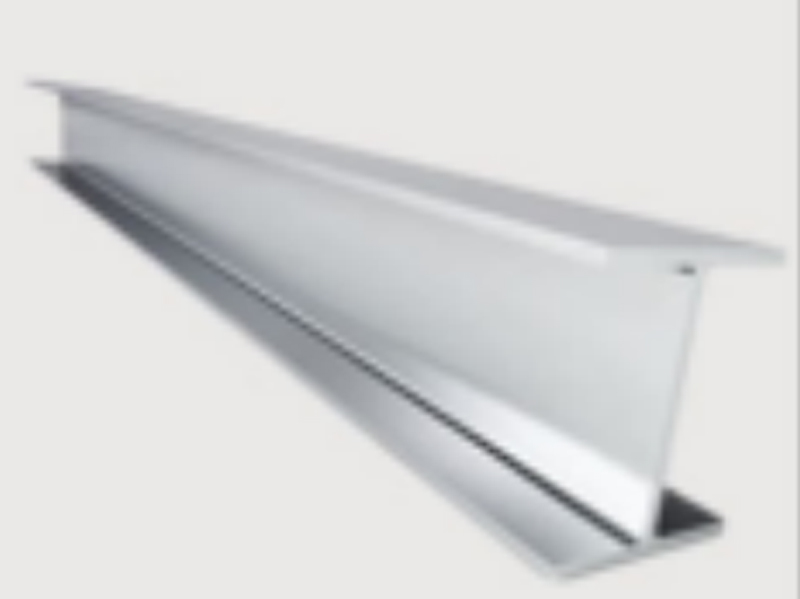

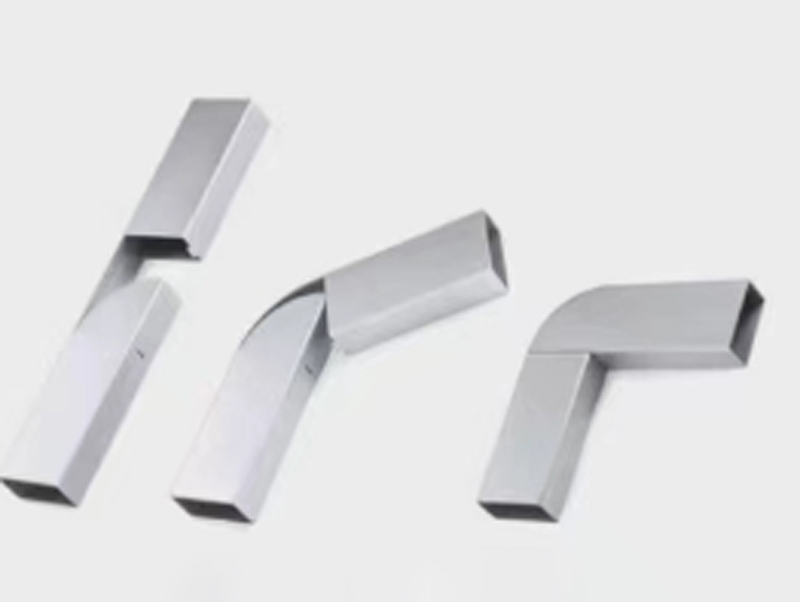

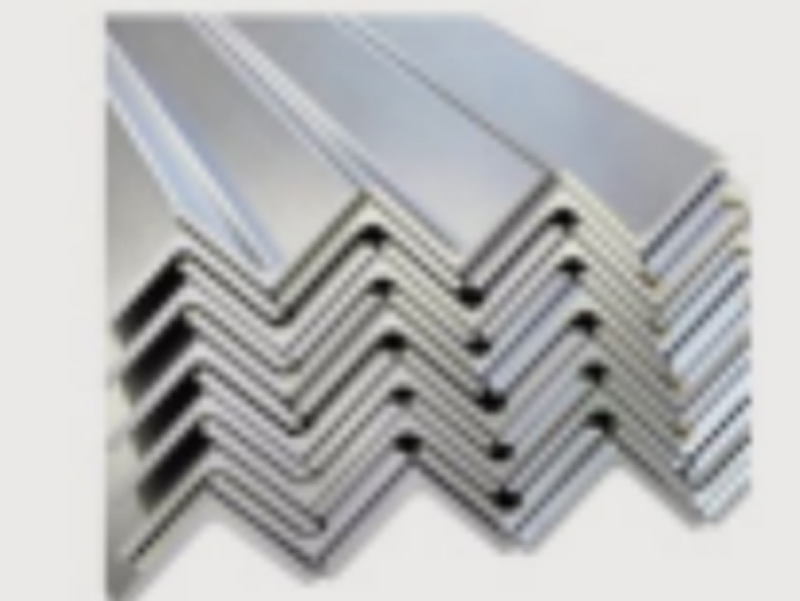

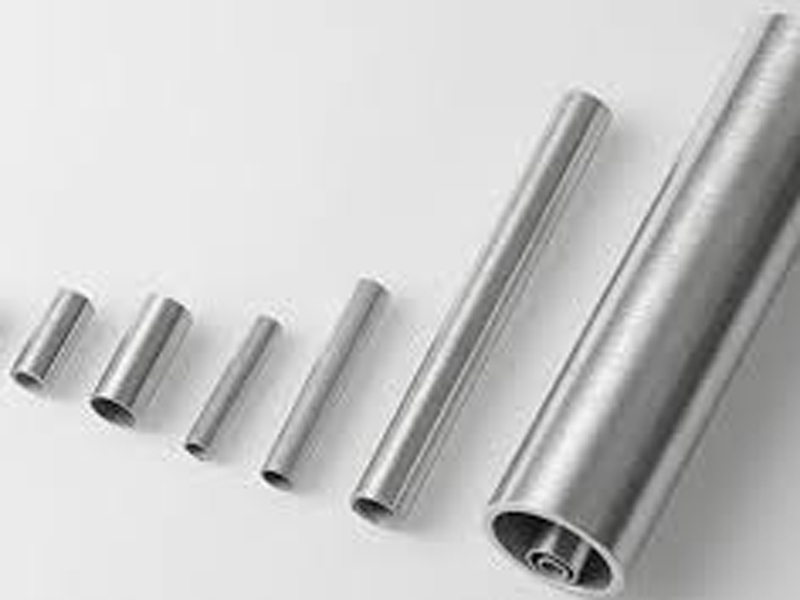

Samples
Structures
-
1. Laser source: Max/Raycus
-

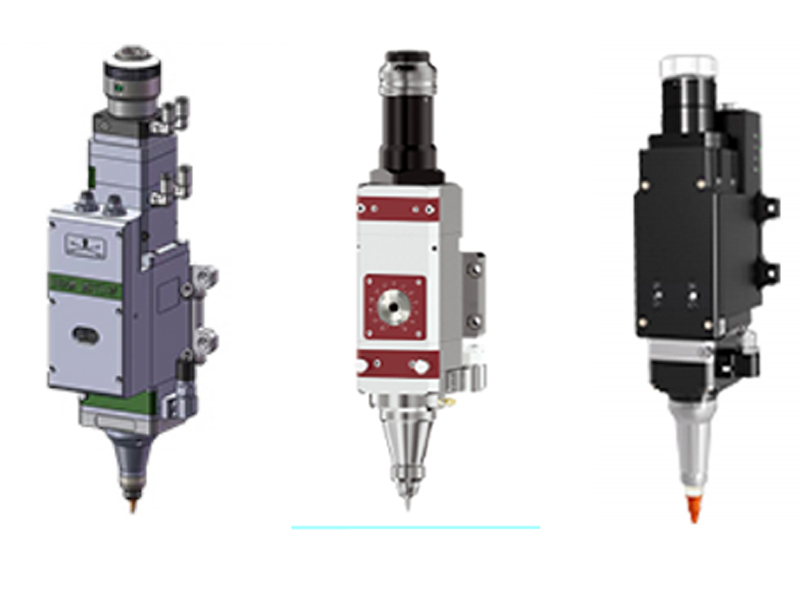

2. Laser cutting head: Ray Tools / Ospri/ Bochu
-

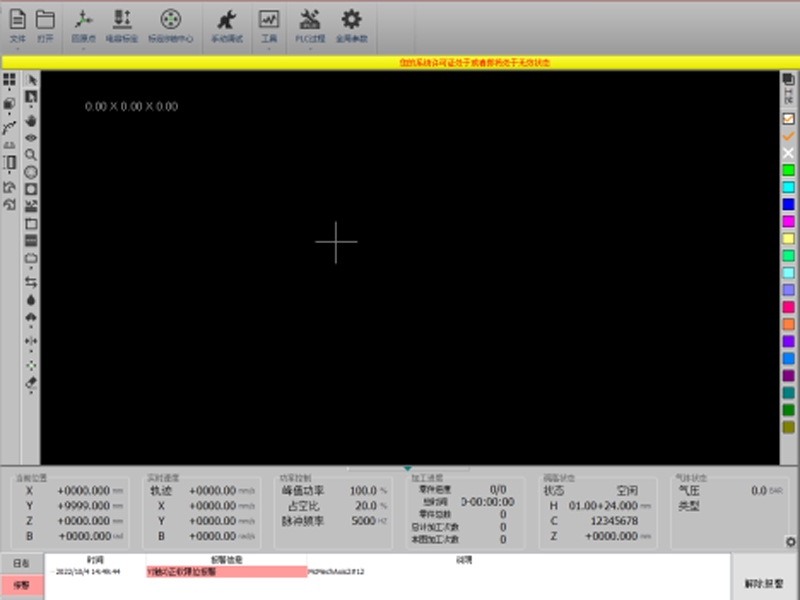

3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
Model G240C Fiber High-speed 3D Full-automatic Laser Tube Cutting Machine parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools / Ospri / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-240MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Automatic : 6000- 6250mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3.5 tons |
| Equipment dimension |
Length8856*width2949*height2175mm |
