Laser Pipe Cutting Machine
01

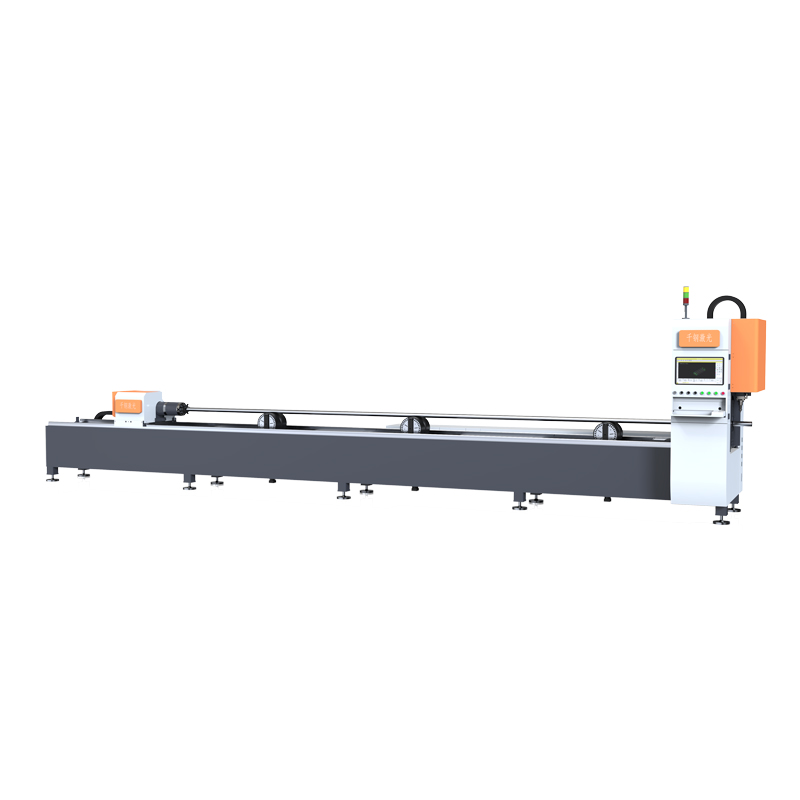

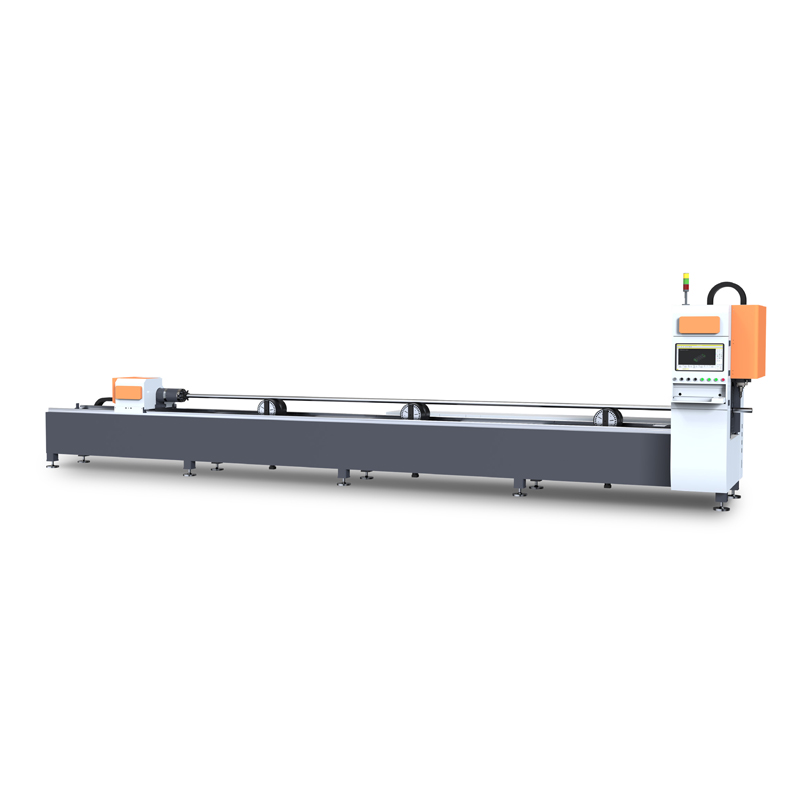

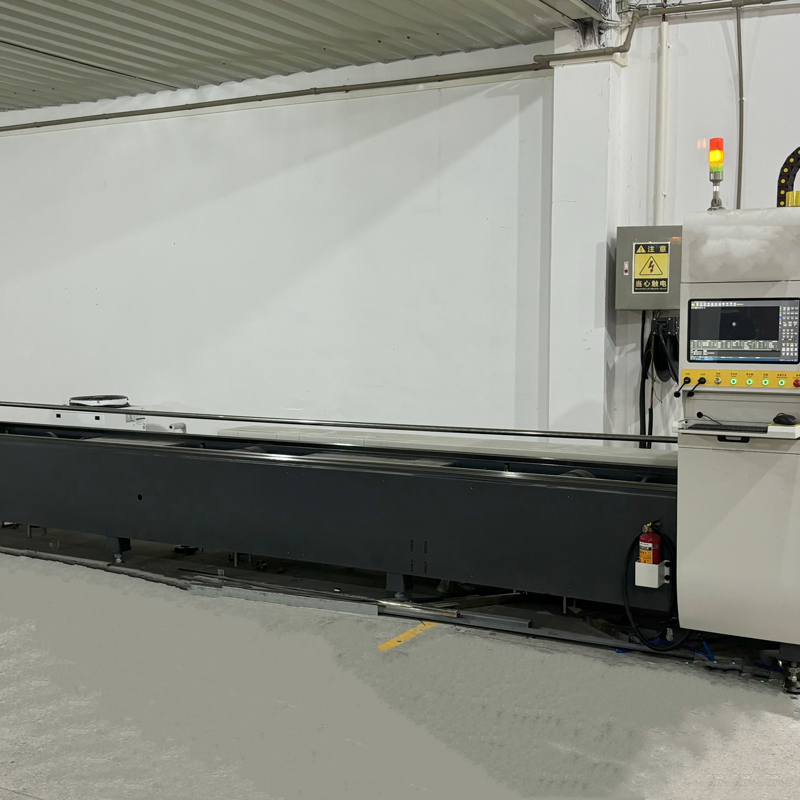

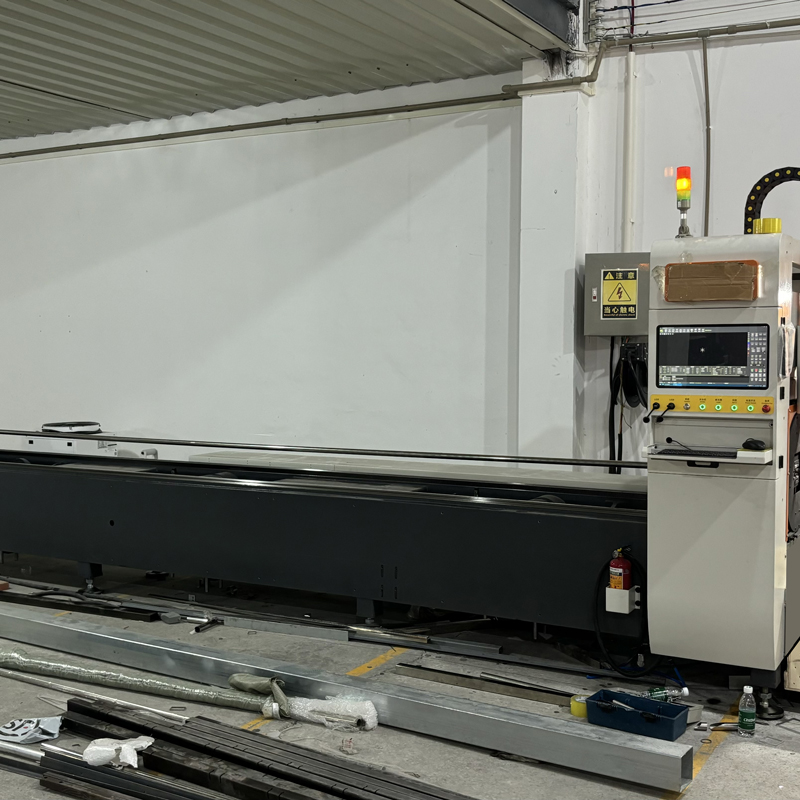

Manual Fiber Laser Tube Cutting Machine Equipment
Product Detail
We are the source factory specializing in producing laser pipe cutting machines. mainly operate products such as fully automatic laser pipe cutting machines, extremely small tube precision laser pipe cutting machines and high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines. We can customize the laser machines according to your require. Our G240M Manual Fiber Laser Tube Cutting Machine Equipment are widely used in pipe processing in fields such as industrial manufacturing, electronic communications, and medical devices.
Product introduction

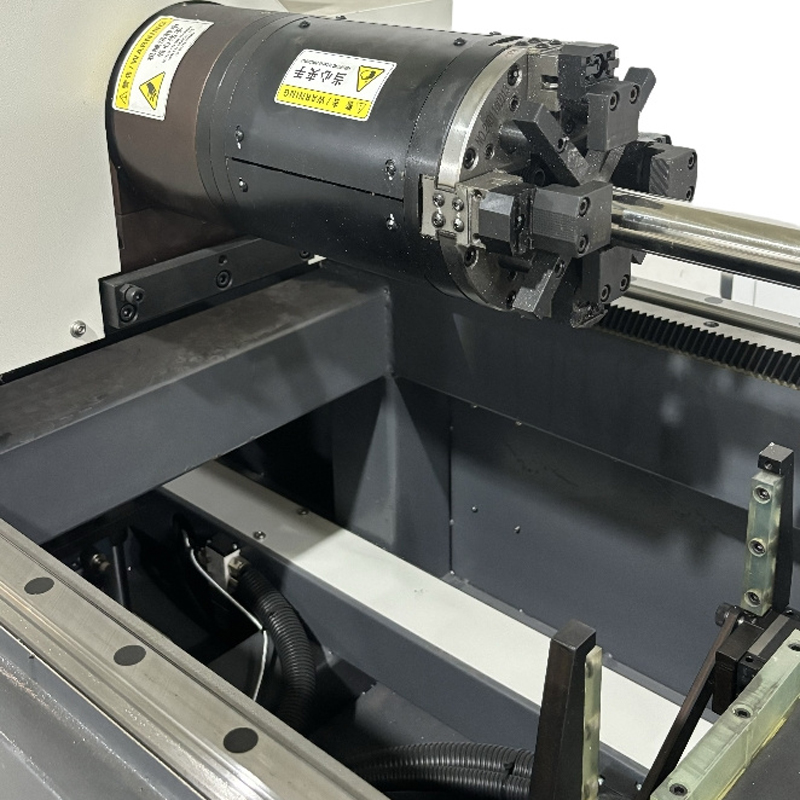

G240M Manual Fiber Laser Tube Cutting Machine Equipment with laser power from 1500w to 6000w is designed for various types of small and medium-sized pipes. It features a side-attached machine bed for stability, larger loading capacity, and better shock resistance. two-chuck cutting in reverse achieves about 100mm short tailings, with high material utilization. two-chuck structure, double cutting stations, and servo support device ensure processing accuracy.
Features
1. Fast super stability, the common specification is 2500-3500 segments /hour.
2. Adopt industry top flow configuration, high cost performance, suitable for large tube, small tube precision machine.
3. Double-chuck control is more flexible, and the pipe length can be directly adjusted to realize fool-like operation.

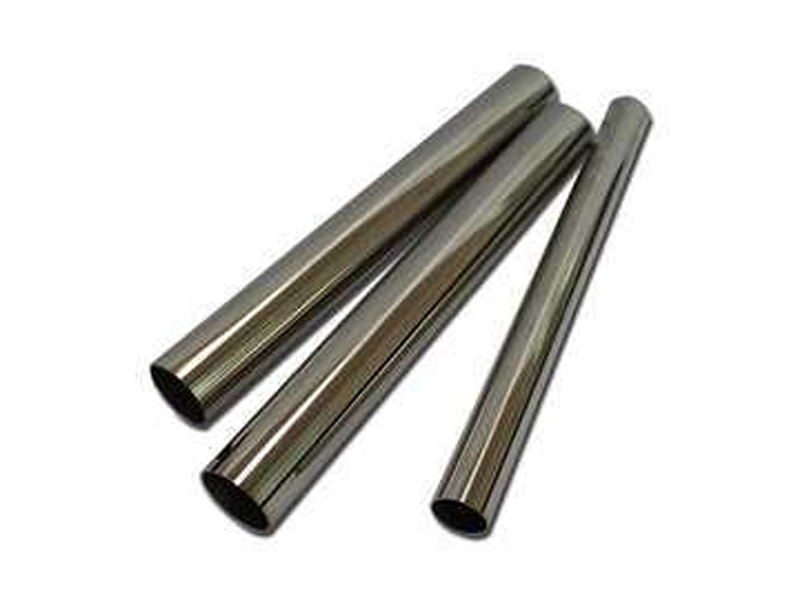

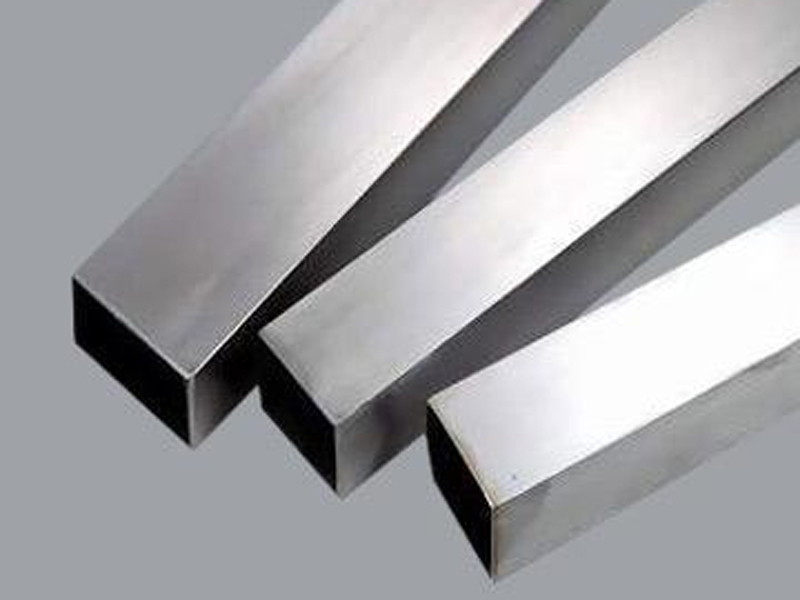

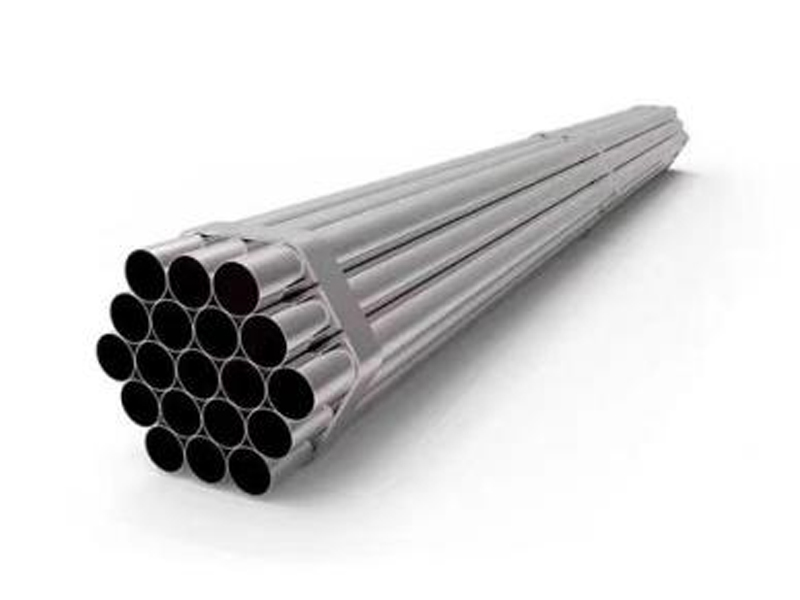

4. There are various cutting types, such as square pipe, round pipe, elliptical pipe. channel steel, angle steel, i-beam and other arbitrary pipes.
5. Fast and efficient.
Application
This G240M Manual Fiber Laser Tube Cutting Machine Equipment can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G240M |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-240 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6500 |
|
Machine size (MM) |
L*W*H:8053*1264*2147 |
|
Body + Rack size (MM) |
L*W*H:8053*1264*2147 |
|
Machine weight（T） |
≈3 |
|
Acceleration(G) |
≈1 |
|
Tailings length(MM) |
≈100 |
Samples
Structures
-
1. Laser source: Max/Raycus
-
2. Laser cutting head: Ray Tools
-

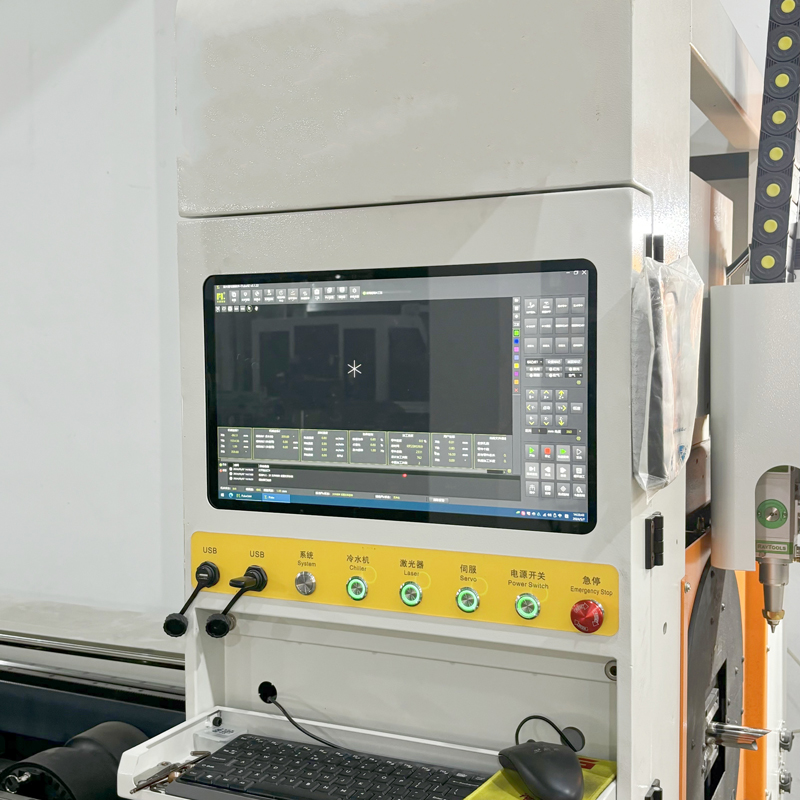

3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
G240M Manual Fiber Laser Tube Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-240MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Hand Feeding: 1000mm-7000mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3 tons |
| Equipment dimension |
Length8053*width1264*height2147mm |
