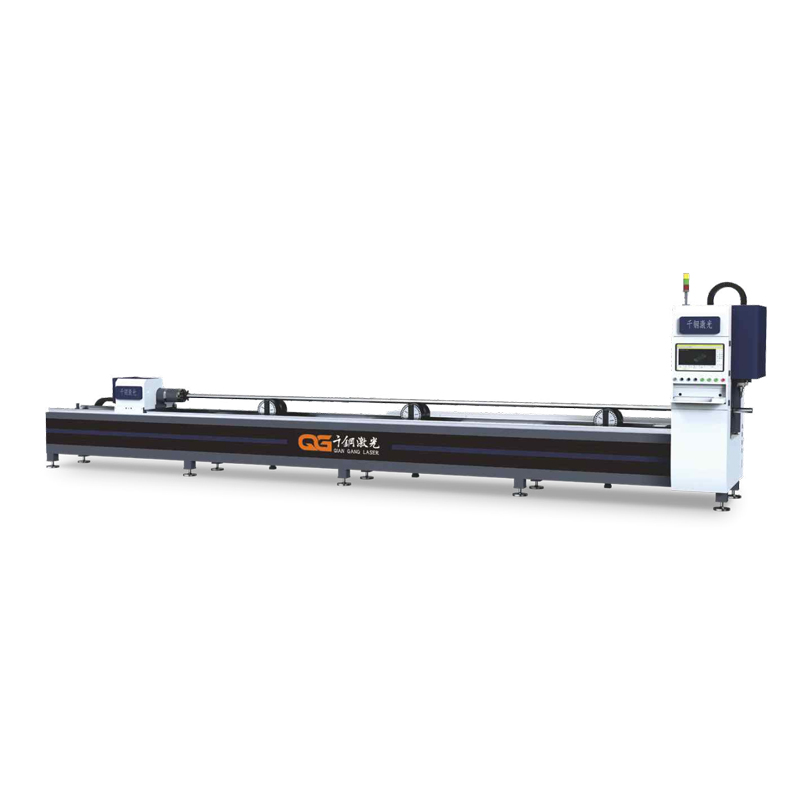

Manual Feeding Door and Window Industry Laser Machine

G170M

China QIANGANG is a maker of really inventive laser equipment. Model G170M: Laser pipe cutting machine without manual drawing.It is appropriate for thick and medium plates, has a high efficiency exchange board, a one-year limited warranty, and comprehensive environmental and safety insurance.Our goods meet both European and American requirements and have passed CE.It makes the most sense for our customers to choose our machines.

    Contact us
    product details

    Product Detail

    The factory that specializes in manufacturing laser pipe cutting machines is us. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, completely automatic laser pipe cutting machines, and precision laser pipe cutting machines for incredibly small tubes. We are able to modify the laser machines to meet your needs. Pipe processing in industries including industrial production, electronic communications, and medical devices is a common application for our G170M Manual Drawing-free laser Pipe Cutting Machine.

    Product introduction

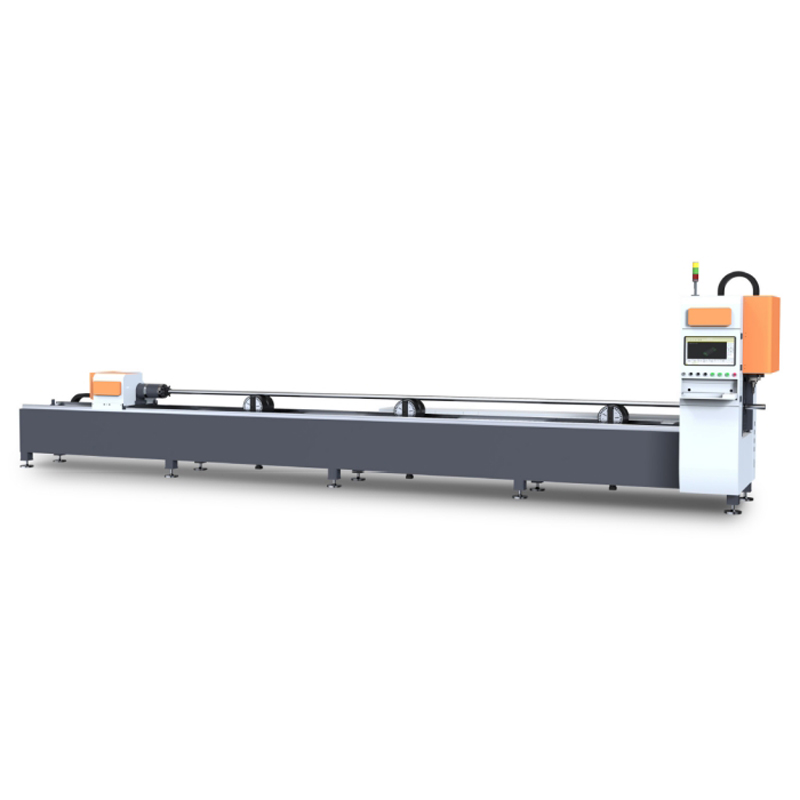

    The G170M Manual Drawing-free Laser Pipe Cutting Machine is made to cut a variety of small and medium-sized pipes. Its laser power ranges from 1500w to 6000w. For stability, increased loading capacity, and improved shock resistance, it has a machine bed that is attached to the side. Reverse two-chuck cutting produces short tailings of roughly 80 mm while using a lot of material. Accurate processing is guaranteed by a servo support device, multiple cutting stations, and a two-chuck construction.
    product-description1

    Features

    1. The machine saves a large number of models of parts required by the door and window industry. You only need to adjust the corresponding parameters before use.

    Application

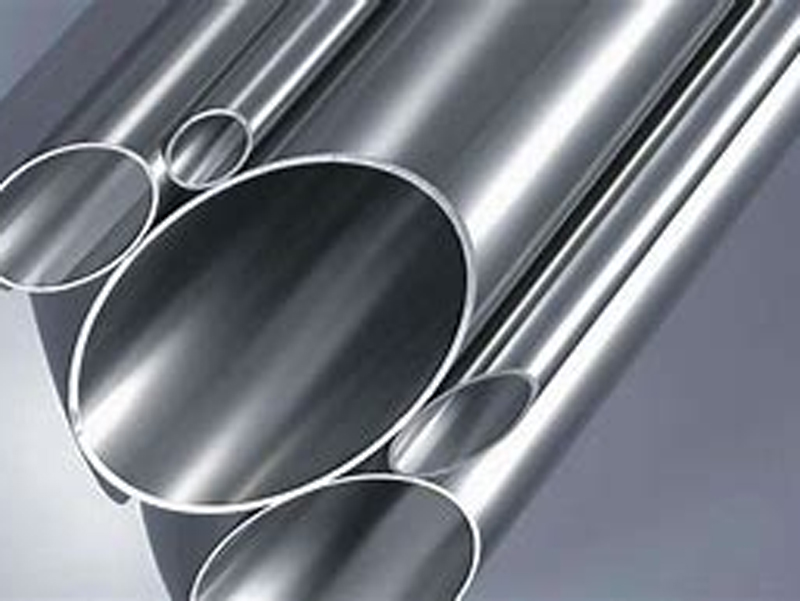

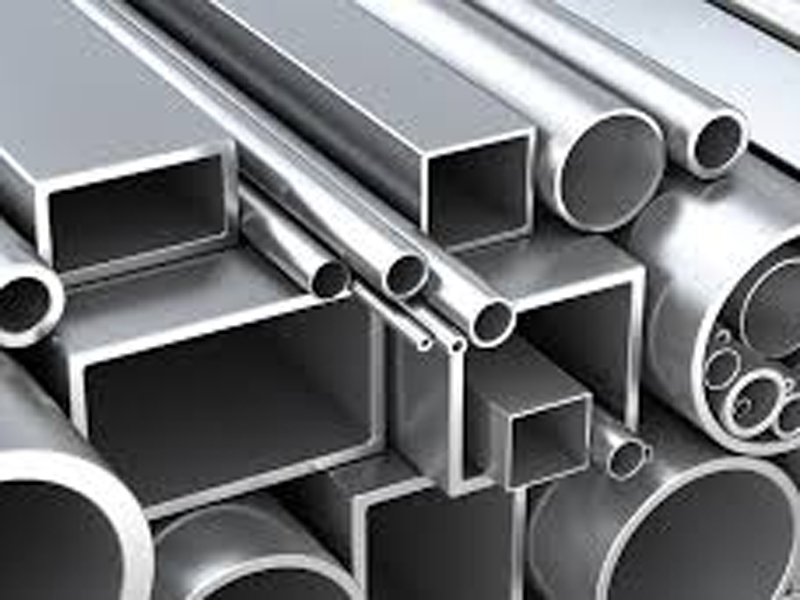

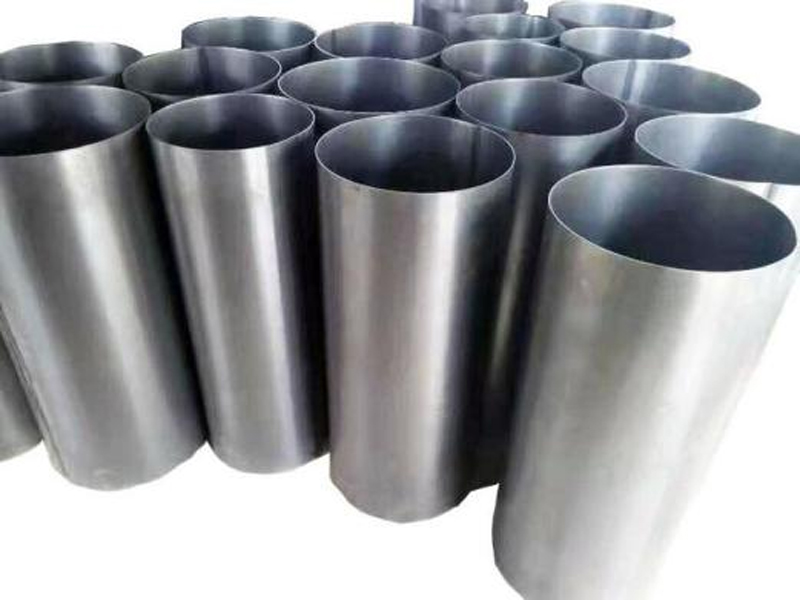

    This G170M Manual Feeding Door and Window Industry Laser Machine can effectively cut various types of small and medium-sized pipes in 3D.
    • product-description2
    • product-description2
    • product-description2
    • product-description1
    • product-description2
    • product-description3

    Parameters

    Model

    G170M

    Laser Power (W）

    1500-6000

    Cutting range (MM)

    Circumference:10-170

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6500

    Machine size (MM)

    L*W*H:8053*1264*2147

    Body + Rack size (MM)

    Manual(L*W*H):8053 * 1264 * 2147

    Machine weight（T）

    ≈3.5

    Acceleration(G)

    ≈1.3

    Tailings  length(MM)

    ≈80

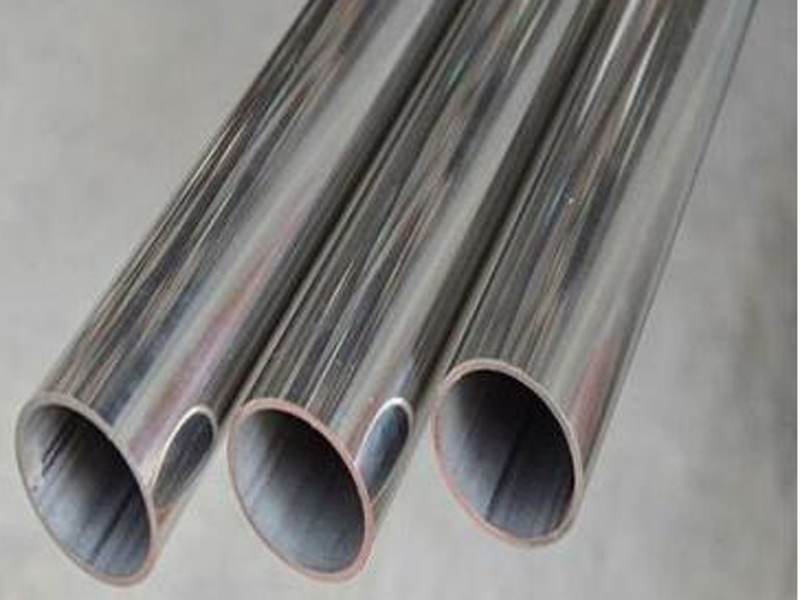

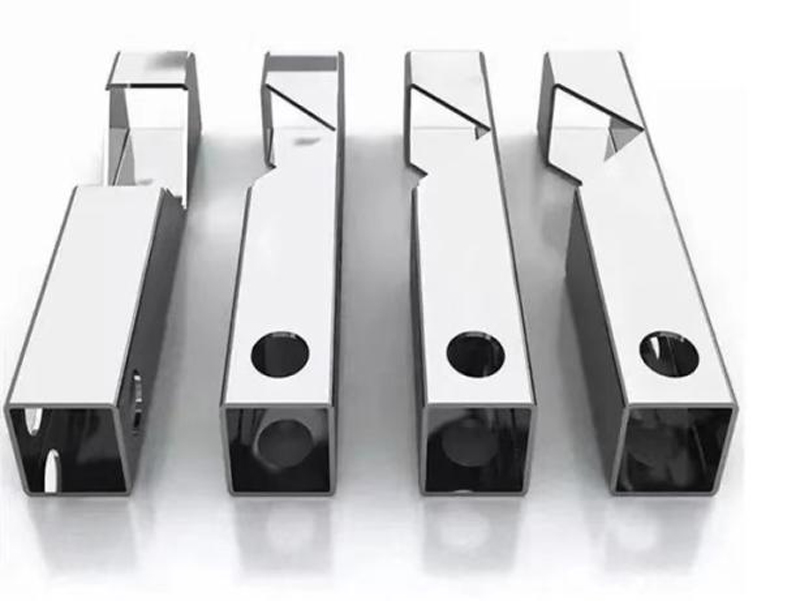

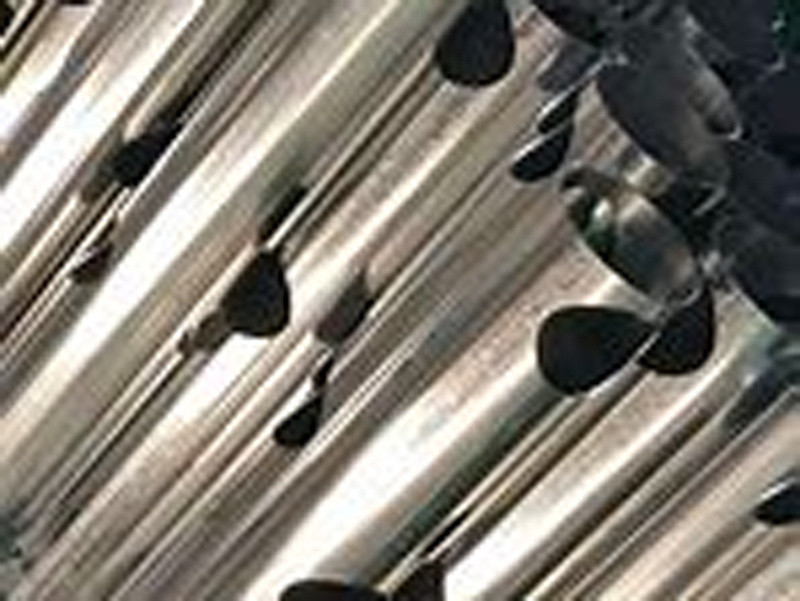

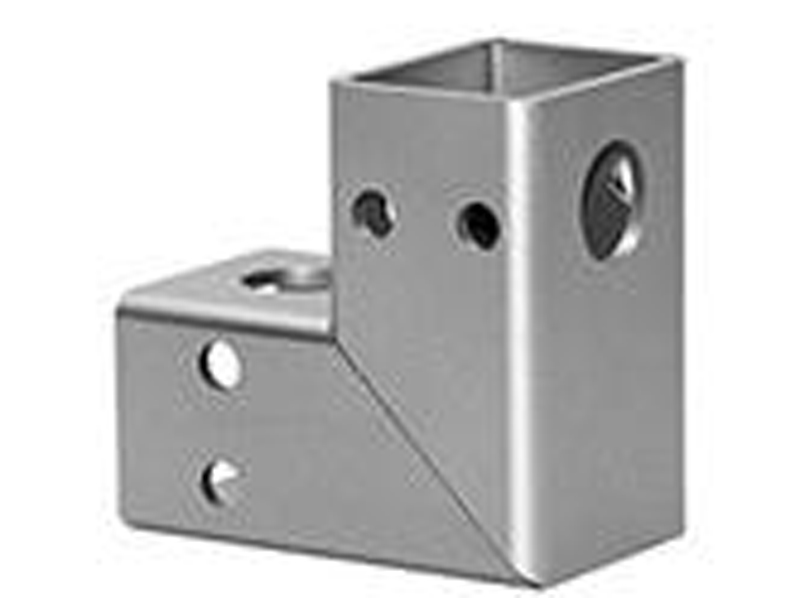

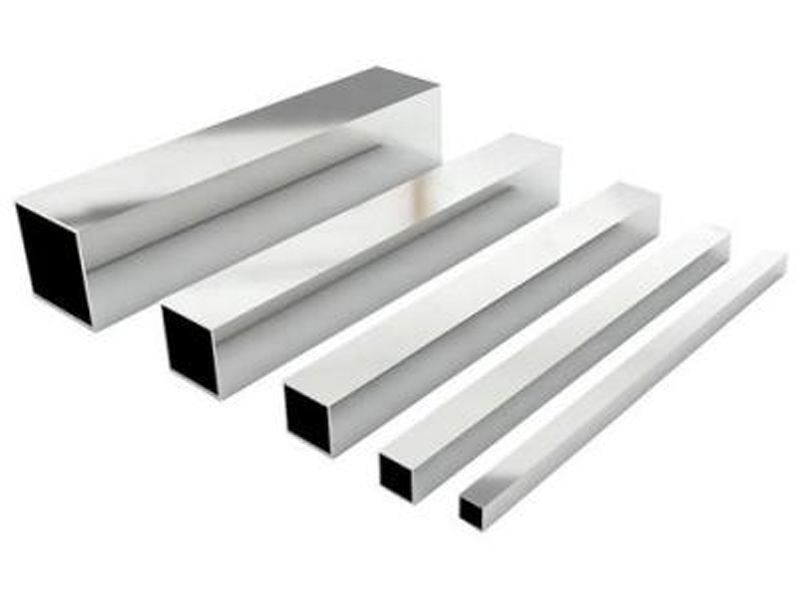

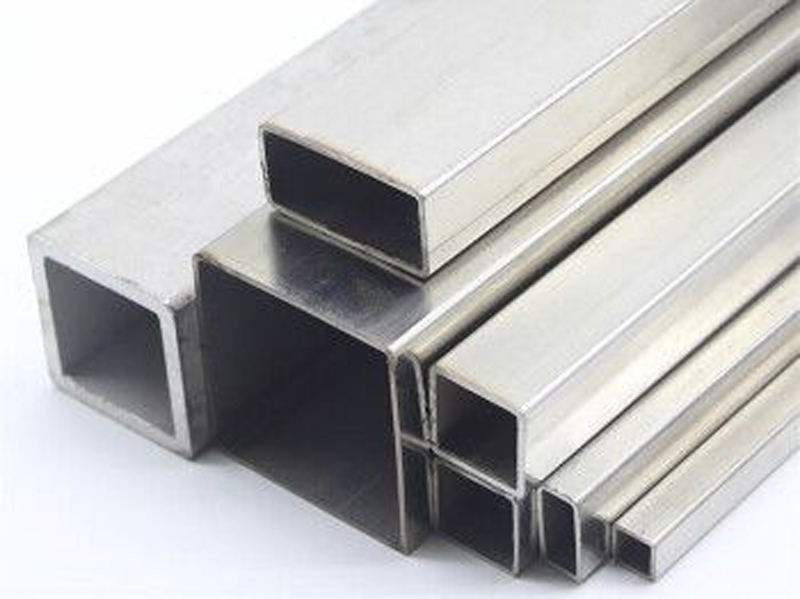

    Samples

    • product-description6
    • product-description7
    • product-description2
    • product-description4

    Structures

    • product-description3

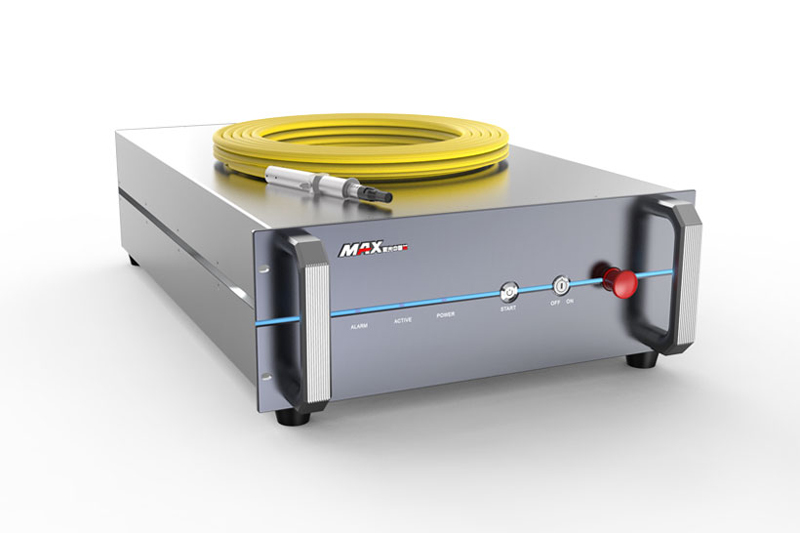

      1. Laser source: Max/Raycus

    • product-description4

      2. Laser cutting head: Ray Tools

    • product-description5

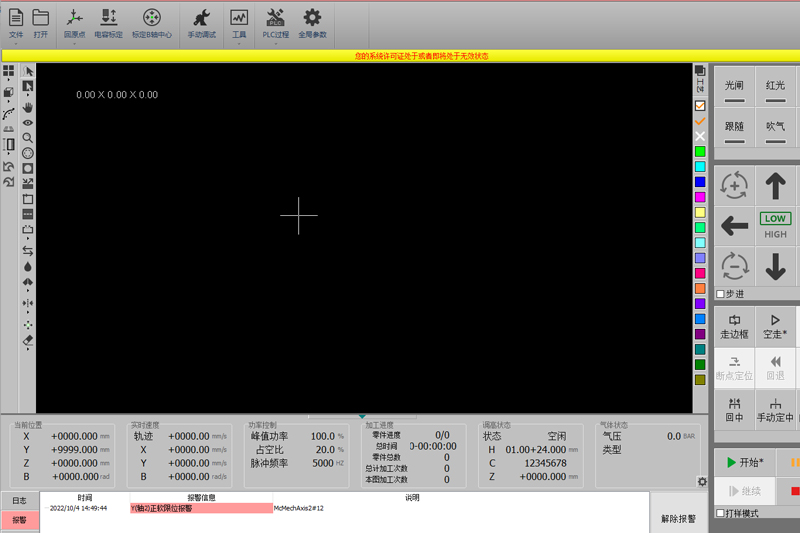

      3. Operating system: Baichu FSCUT3000

    • product-description6

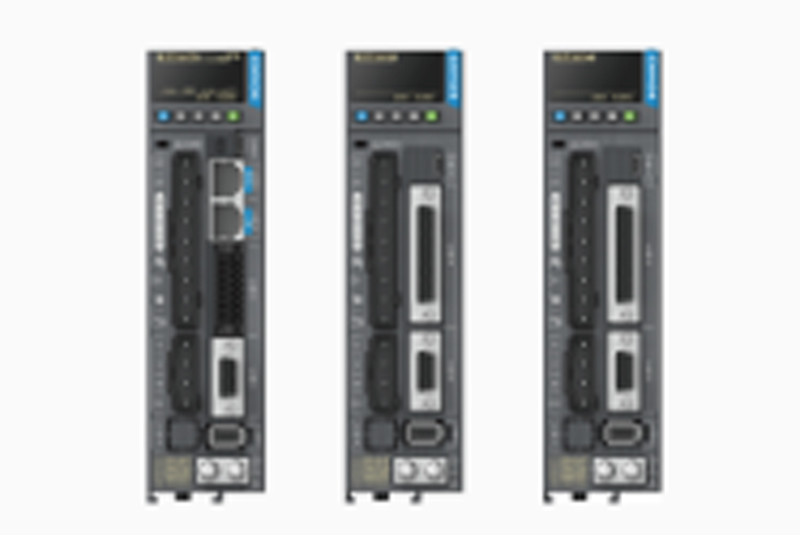

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G170M Manual Feeding Door and Window Industry Laser Machine parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Beut

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-170MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Semi Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.3G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8053*width1866*height2147mm
