G120P High-Speed 3D Full-Automatic Laser Tube Cutting Machine (Flat Push) 1500w - 6000w
Laser Pipe Cutting Machine

G120P High-Speed 3D Full-Automatic Laser Tube Cutting Machine (Flat Push) 1500w - 6000w

G120P High-speed 3D full-automatic laser tube cutting machine(Flat push) makes a stunning debut! the cutting speed is up to 1.6G, and the precision can reach ±0.2mm. whether it is a round pipe, square pipe or special-shaped pipe, it can be easily handled. with powerful performance, the pipe processing quality is extremely excellent. efficient operation injects strong power into your production.
We are the source manufacturer specializing in producing laser pipe cutting machines. mainly operate products such as fully automatic laser pipe cutting machines, extremely small tube precision laser pipe cutting machines and high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines. We can customize the laser machines according to your require. Our laser pipe cutting machines are widely used in pipe processing in fields such as industrial manufacturing, electronic communications, and medical devices.

    Product introduction

    High-speed 3D full-automatic laser tube cutting machine with laser power from 3000w to 6000w is designed for various types of small and medium-sized pipes. It features a side-attached machine bed for stability, larger loading capacity, and better shock resistance. two-chuck cutting in reverse achieves about 40mm short tailings, with high material utilization. two-chuck structure, double cutting stations, and servo support device ensure processing accuracy. automatic loading and unloading platform saves labor costs, improves efficiency. can cut Φ120mm round tube and bevel with 45° (optional). length of single tube up to 6250mm.

    Features

    1. Fast super stability, the common specification is 2500-3500 segments /hour.
    2. Adopt industry top flow configuration, high cost performance, suitable for  large tube, small tube precision machine.
    3. Double-chuck control is more flexible, and the pipe length can be directly adjusted to realize fool-like operation.
    4. There are various cutting types, such as square pipe, round pipe, elliptical pipe. channel steel, angle steel, i-beam and other arbitrary pipes.

    Application

    This equipment can effectively cut various types of small and medium-sized pipes in 3D.
    product-description1ddw

    Parameters

    Model

    G120P

    Laser Power (W)

    1500-6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8856*1365*2172

    Body + Rack size (MM)

    Semi-automatic(L*W*H):8856*1876*2172

    Fully automatic(L*W*H):8856*2886*2172

    Machine weight(T)

    ≈3.5

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈60

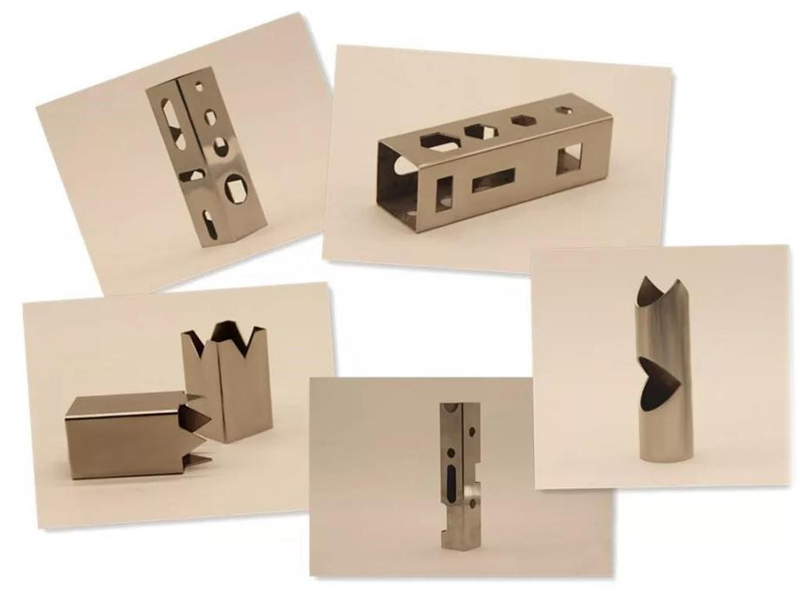

    Samples

    product-description2ub9

    Structures

    • product-description360n

      1. Laser source: Max/Raycus

    • product-description4ch6

      2. Laser cutting head: Ray Tools

    • product-description5jhd

      3. Operating system: Baichu FSCUT3000

    • product-description6lq2

      4. Servo motor: Huichuan

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120P Equipment parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    RayTools

    Water cooling unit

    Hanli

    Chuck

    Changzhou Biite

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Hand Feeding: 1000mm-7000mm Automatic : 3500- 6250mm

    Thickness of cutting material Depending on laser power (8.0mm thickness per 3000W)
    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning accuracy

    ±0.05mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz

    Total weight of equipment

    About 4tons

    Equipment dimension

    Length9633*width2993*height2100
