Laser Pipe Cutting Machine
01
Drawing-free laser Pipe Cutting Machine
Product Detail
We are the source factory specializing in producing laser pipe cutting machines. mainly operate products such as fully automatic laser pipe cutting machines, extremely small tube precision laser pipe cutting machines and high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines. We can customize the laser machines according to your require. Our G170M Manual Drawing-free laser Pipe Cutting Machine are widely used in pipe processing in fields such as industrial manufacturing, electronic communications, and medical devices.
Product introduction
G170M Manual Drawing-free laser Pipe Cutting Machine with laser power from 1500w to 6000w is designed for various types of small and medium-sized pipes. It features a side-attached machine bed for stability, larger loading capacity, and better shock resistance. two-chuck cutting in reverse achieves about 80mm short tailings, with high material utilization. two-chuck structure, double cutting stations, and servo support device ensure processing accuracy.
Features
1. The machine stores a large number of models of accessories required by the door and window industry. You can cut by filling in the required size.
Application
This G170M Semi Auto Feeding Door and Window Industry Laser Machine can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G170M |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-170 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6500 |
|
Machine size (MM) |
L*W*H:8053*1264*2147 |
|
Body + Rack size (MM) |
Semi-automatic(L*W*H):8053*1866*2147 |
|
Machine weight（T） |
≈3.5 |
|
Acceleration(G) |
≈1.3 |
|
Tailings length(MM) |
≈80 |

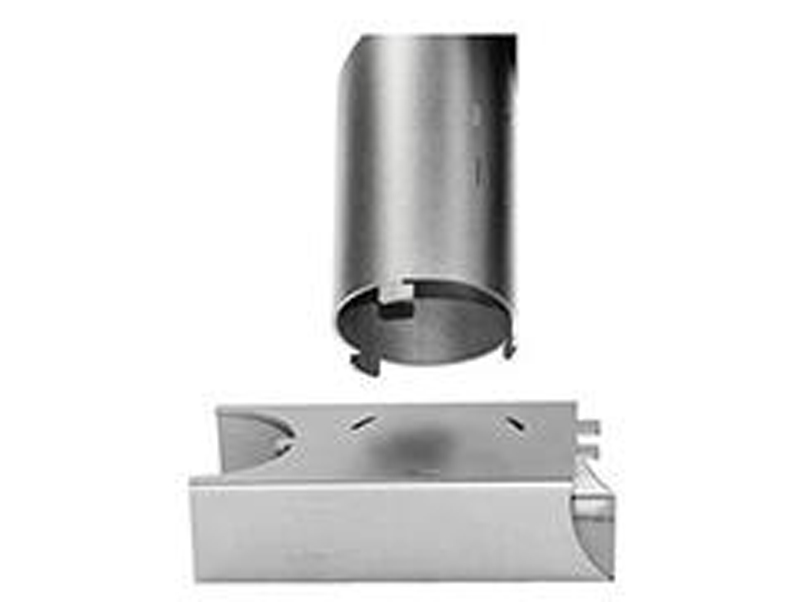

Samples
Structures
-
1. Laser source: Max/Raycus
-
2. Laser cutting head: Ray Tools
-
3. Operating system: Bochu FSCUT3000
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
G170M Semi Auto Feeding Door and Window Industry Laser Machine parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-170MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Semi Automatic : 6000- 6250mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1.3G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3.5 tons |
| Equipment dimension |
Length8053*width1866*height2147mm |
