Laser Pipe Cutting Machine
01
Precision Automatic Laser Tube Cutting Machine
Product Detail
The factory that specializes in manufacturing laser pipe cutting machines is us. primarily run items like high-efficiency three-dimensional five-axis multifunctional laser pipe cutting machines, completely automatic laser pipe cutting machines, and precision laser pipe cutting machines for incredibly small tubes. We are able to modify the laser machines to meet your needs. Pipe processing in industries like industrial production, electronic communications, and medical devices is a common application for our Model G120C Full Automatic Precision Automatic Laser Tube Cutting Machine.
Product introduction
With laser power ranging from 1500w to 6000w, the Model G120C Fully Automatic Precision Automatic Laser Tube Cutting Machine is made to cut a variety of small and medium-sized pipes. It has a machine bed attached to the side for stability, increased loading capacity, and improved shock resistance. Approximately 40mm short tailings are produced with great material usage when two-chuck cutting is done in reverse. Processing accuracy is guaranteed by a servo support mechanism, multiple cutting stations, and a two-chuck construction. An autonomous loading and unloading platform increases productivity and reduces labor expenses. The cutting range of the laser is circumferential, and its power range is 1500–6000.
Features
1. Compared to standard pipe cutting machines, the acceleration reaches 1.6G, which is five to six times more efficient.
2. Broad cutting range and simplicity of use: This machine can cut a variety of pipes, including round, square, oval, and specially shaped pipes, among others. Structurally sound, the electronic control parts are imported add-ons that enable round-the-clock operation. industry-wide operating system, thorough optimization, quick reaction, and ease of use. Create the ideal balance between stability, function, and speed;
3. The equipment's theoretical cutting tailings are around 60mm, which significantly reduces material loss. This small blind region of the tailings also saves materials and minimizes post-process.
4. Cutting for follow-up:
Handling distorted tubes is made simple by the usual incorporated height adjuster.
Application

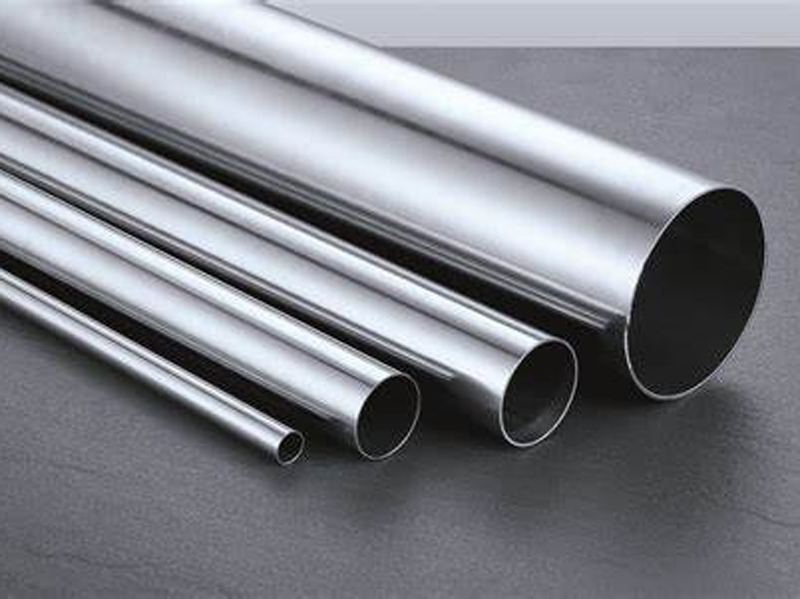

This Model G120C Full Automatic Precision Automatic Laser Tube Cutting Machine can effectively cut various types of small and medium-sized pipes in 3D.
Parameters
|
Model |
G120C |
|
Laser Power (W） |
1500-6000 |
|
Cutting range (MM) |
Circumference:10-120 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H:8874*1720*2175 |
|
Body + Rack size (MM) |
Full automatic(L*W*H):8856*2949*2175 |
|
Machine weight（T） |
≈3.5 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈40 |

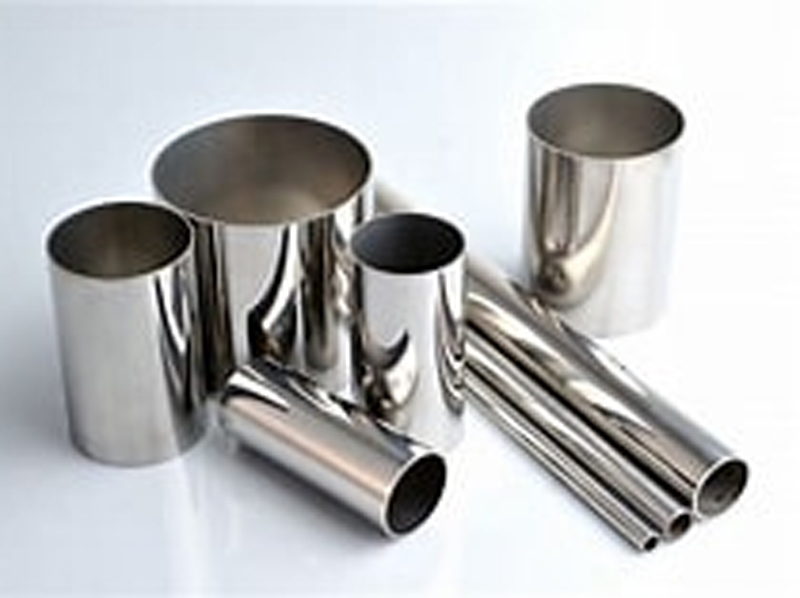

Samples
Structures
-

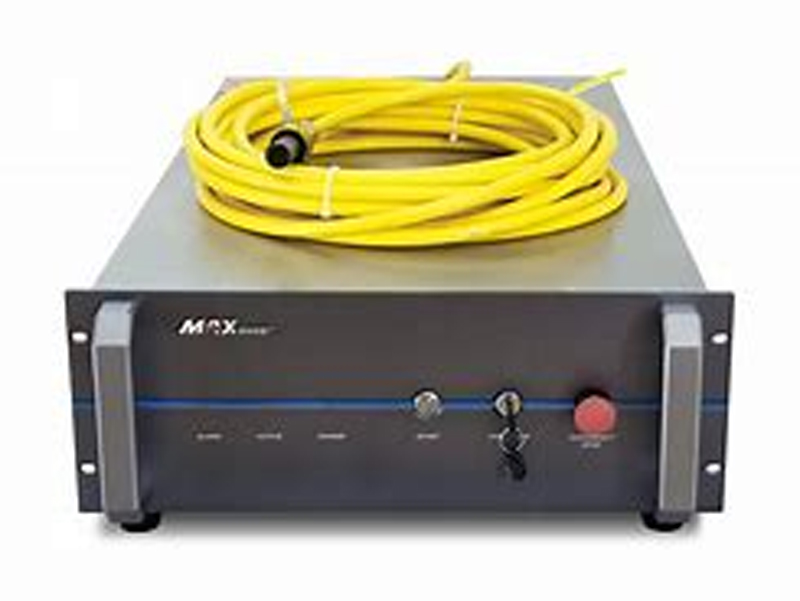

1. Laser source: Max/Raycus
-
2. Laser cutting head: Ray Tools / Ospri
-
3. Operating system: Bochu FSCUT
-
4. Servo motor: Huichuan
-
5. Water chiller: Hanli
Details
|
Model G120C Full Automatic Precision Automatic Laser Tube Cutting Machine parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
RayTools |
|
Water cooling unit |
Hanli |
|
Chuck |
Changzhou Beut |
| Servo motor |
Huichuan |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-120MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Automatic : 6000- 6250mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1.6G |
| Voltage |
380V/50Hz |
| Total weight of equipment |
About 3.5 tons |
| Equipment dimension |
Length8856*width2949*height2175mm |
