G170D fully-automatic laser pipe cutting machine+blue-white
D Series

G170D fully-automatic laser pipe cutting machine+blue-white

China QianGang Company specializes in the production and manufacturing of laser pipe cutting machines, and is the originator of laser pipe cutting machines. The company possesses outstanding technical strength and rich experience. Among them, the G170D fully-automatic laser pipe cutting machine can complete the pipe cutting task quickly and accurately. It features high cutting precision, smooth and flat cutting edges without burrs, which greatly improves quality and efficiency.

    Product Detail

    We are a manufacturer specializing in the production of laser tube cutting machines. Our core products include high-efficiency three-dimensional multi-functional laser tube cutting machines, fully automatic laser tube cutting machines, and inclined cutting laser tube cutting machines. Additionally, we can customize laser equipment according to your specific needs. Our G170D fully-automatic laser tube cutting machine has been widely applied in various fields such as stair handrails, window and door guardrails, automotive parts, and medical equipment. With its outstanding performance, it has received high praise and full trust from customers. Currently, it is widely used in these fields.

    Product introduction

    The G170D fully-automatic laser pipe cutting machine has many advantages. The G170D fully -automatic feeding equipment can achieve fully automated pipe feeding, positioning, and cutting, with high efficiency and strong stability. Fully automatic feeding can significantly reduce labor costs and management costs. One operator can manage multiple fully automatic pipe cutting machines, with the main responsibility changing to monitoring the operation status rather than repetitive physical labor. The fully automatic feeding of the laser pipe cutting machine G170D is applicable to large-scale industries such as automotive parts and standard building materials that require long-term cutting of the same specification pipes.
    In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for the precise cutting required for thinner pipe materials or the efficient cutting tasks for slightly thicker pipe materials, it can perform outstandingly and effortlessly.

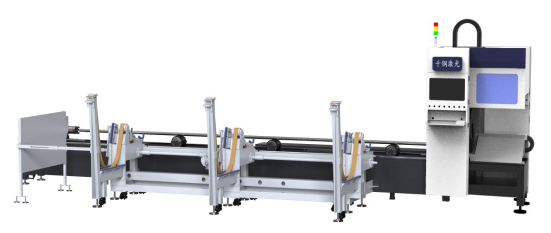

    封面图

    Features

    1.The chuck can be out of position, but it operates at a high speed and has extremely high stability. The common specifications range from 2500 to 3500 segments per hour.
    2.Adopting the mainstream configuration in the industry, it offers extremely high cost-effectiveness. It is suitable for both large and small pipe processing.
    3.With dual chuck control, it is more flexible. The pipe length can be directly adjusted, enabling a simple and intuitive operation.
    4.There are various types of cutting methods, including square tubes, round tubes, elliptical tubes, channel steel, I-beam steel, and any other types of tubes.

    Application

    The G170D fully-automatic three-dimensional laser pipe cutting machine has an extremely wide range of applications. Whether it is the manufacturing of hardware accessories and window guardrails, or the production of bathroom accessories; whether it is the creation of sports equipment, or the manufacturing of automobiles and architectural decoration projects; even in the processing of metal pipes related to 3C products and elevator equipment, this machine can shine brightly and fully meet the diverse needs of different industries for metal pipes.
    • 图片1
    • 图片2
    • 图片3
    • 图片4

    Parameters

    Model

    G170D

    Laser Power (W)

    1500/2000/3000/6000

    Cutting range (MM)

    Circumference:10-170

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H: 8856*1365*2172

    Body + Rack size (MM)

    Fully-automatic (L*W*H): 8856*2886*2172

    Machine weight(kg)

    ≈2700

    Acceleration(G)

    ≈1.4

    Tailings  length(MM)

    ≈80

    Samples

    • 图片5
    • 图片6

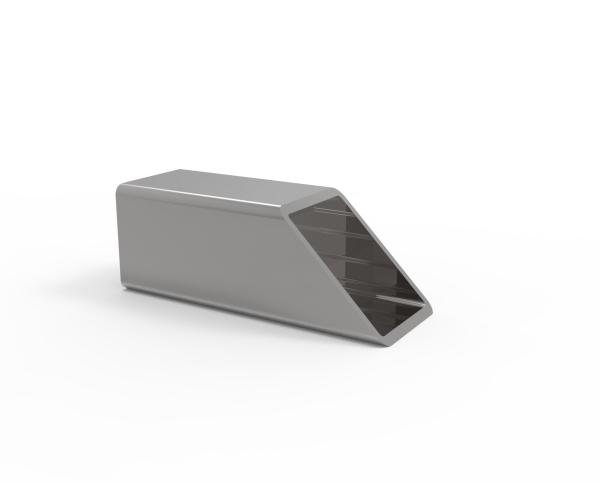

    • 图片7
    • 图片8

    Structures

    • product-description360n

      1. Laser source: Max/Raycus

    • 9

      2.Laser cutting head: Raytools / Ospri / Boci

    • 图片 6

      3. Operating system: Bochu FSCUT3000

    • 图片13

      4.Servo motors: HCFA

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G170D fully-automatic Laser pipe Cutting Machine Equipmentparameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri / Raytools / Bochu

    Water cooling unit

    Hanli

    Chuck

    Pneumatic

    Servo motor

    HCFA

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-170MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6250mm

    Thickness of cutting material Depending on laser power (8.0mm thickness per 3000W)
    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning accuracy

    ±0.02mm

    Maximal acceleration

    1.4G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 2.7 tons

    Equipment dimension

    Length8856*width2886 *height2172mm
