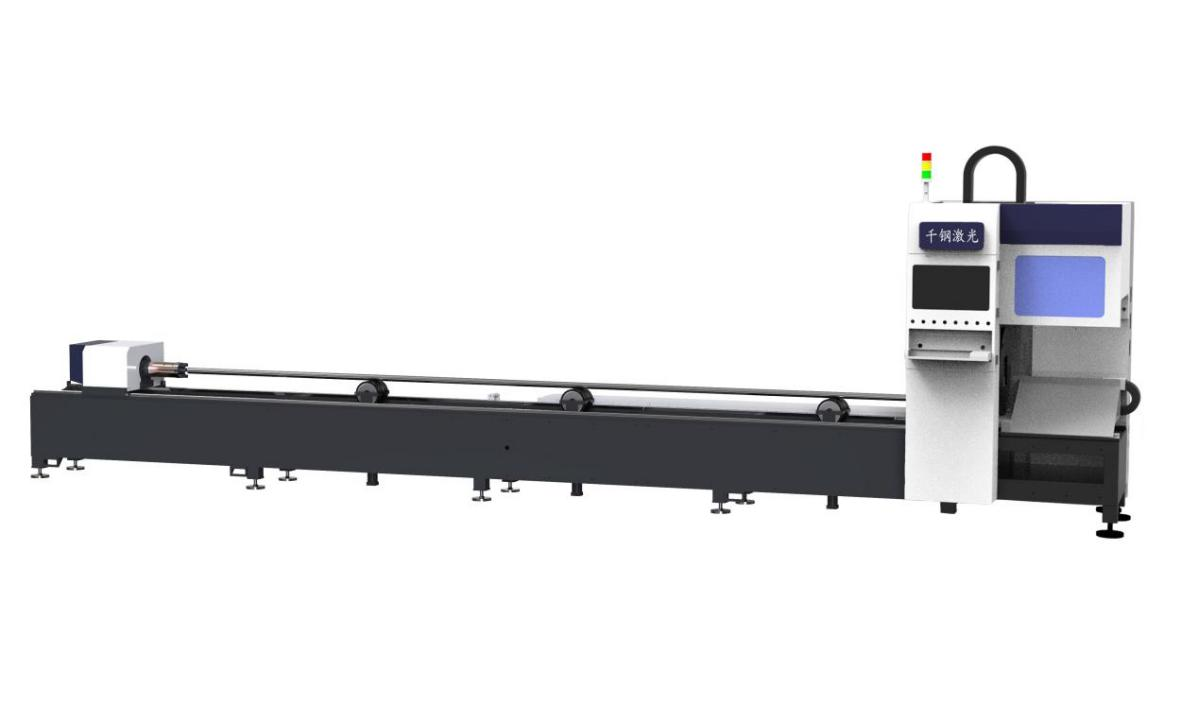

G120D manual feeding laser pipe cutting machine+blue-white
Product Detail
We are a manufacturer specializing in the production of laser tube cutting machines. Our core products include high-efficiency three-dimensional multi-functional laser tube cutting machines, fully automatic laser tube cutting machines, and inclined-cut laser tube cutting machines. Additionally, we can customize laser equipment according to your specific needs. Our G120D manual feeding high-speed laser tube cutting machine has been widely applied in multiple fields such as stair handrails and doors and windows. With its outstanding performance, it has received high praise and full trust from customers. Currently, it is widely used in these fields.
Product introduction
The G120D manual feed laser tube cutting machine has achieved an extremely small tail waste area in its design, which not only saves materials but also reduces subsequent processes, thereby lowering labor costs. This equipment can precisely meet the complex and diverse processing requirements of pipe materials.
In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipe materials or efficient cutting tasks for slightly thicker pipe materials, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feed receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipe materials, but also due to its automated operation, reduces the demand caused by human intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipe materials or efficient cutting tasks for slightly thicker pipe materials, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feed receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipe materials, but also due to its automated operation, reduces the demand caused by human intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
Features
1.The design where the rear chuck is placed flat on the machine tool enhances the stability and speed of the pipe material's forward transportation.
2.This is a model that doesn't require drawing,the operation is simple and convenient, and the cutting range is wide. Various specifications of cut pieces can be selected, including oval, circular, square, channel steel, angle steel, I-beam steel, and other various-shaped pipes.
3.The cutting speed is fast and extremely stable. The typical hourly cutting quantity specification is between 2500 and 3500 pieces.
4.There is no blind area in tailings, which reduces the subsequent processing workload and saves materials: the theoretical tailings cutting depth of this equipment is approximately 50 mm, which significantly reduces material loss.
Application
The G120D manual feed three-dimensional laser tube cutting machine demonstrates unparalleled versatility in stair handrails and window guardrails. Whether it is processing stainless steel kitchenware or electronic heat sinks, the G120D manual feed three-dimensional laser tube cutting machine redefines precision through the combination of its speed, flexibility and minimum heat-affected zone.
Parameters
|
Model |
G120D |
|
Laser Power (W） |
1500/2000/3000/6000 |
|
Cutting range (MM) |
Circumference:10-120 |
|
Repeat positioning accuracy (MM) |
±0.02 |
|
Pipe length range(MM ) |
≈6250 |
|
Machine size (MM) |
L*W*H: 8856*1365*2172 |
|
Body + Rack size (MM) |
Manual (L*W*H): 8856*1876*2172 |
|
Machine weight（kg） |
≈2500 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈50 |
Samples
Structures
-
1. Laser source: Max/Raycus
-
2.Laser cutting head: Raytools / Ospri / Boci
-
3. Operating system: Bochu FSCUT3000
-
4.Servo motors: HCFA
-
5. Water chiller: Hanli
Details
|
G120D manual feeding Laser pipe Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri / Raytools / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Pneumatic |
| Servo motor |
HCFA |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
10-120MM |
| Configuration of material rack |
Optional receiving rack (2 pneumatic supports as standard) |
| Minimal cutting length |
1mm |
| Loading length |
Automatic : 6250mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.02mm |
| Maximal acceleration |
1.6G |
| Voltage |
380V/50Hz/60Hz |
| Total weight of equipment |
About 2.5 tons |
| Equipment dimension |
Length8856*width1876 *height2172mm |
