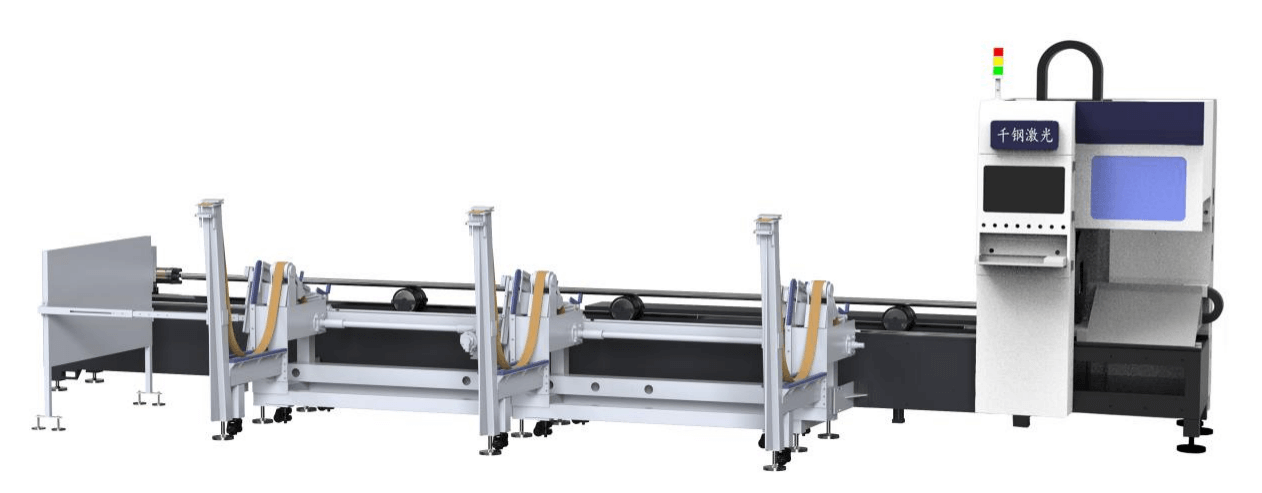

G120D fully-automatic laser pipe cutting machine+blue-white
D Series

G120D fully-automatic laser pipe cutting machine+blue-white

China QianGang Company specializes in the production and manufacturing of laser pipe cutting machines, and is the originator of laser pipe cutting machines. The company possesses outstanding technical strength and rich experience. Among them, the G120D fully-automatic high-speed laser pipe cutting machine can complete the pipe cutting task quickly and accurately. It features high cutting precision, smooth and flat cutting edges without burrs, and zero tail material cutting, which greatly improves quality and efficiency.

    Product Detail

    We are a manufacturer specializing in the production of laser pipe cutting machines. Our core products include efficient three-dimensional multi-functional laser pipe cutting machines, fully automatic laser pipe cutting machines, and inclined-cut laser pipe cutting machines. Besides, we can tailor laser equipment according to your specific needs. Our G120D fully-automatic high-speed laser pipe cutting machine has been widely applied in various fields such as hardware furniture, industrial production, automotive parts, mobile phone brackets, and medical devices. With its outstanding performance, it has received high praise and full trust from customers. Currently, it has been widely used in these fields.

    Product introduction

    The G120D fully automatic laser pipe cutting machine has achieved an extremely small tail waste area in its design. This not only saves materials but also reduces subsequent processes, thereby lowering labor costs. This equipment can precisely meet the processing requirements of various and complex pipe materials.
    In terms of core power technology, its laser power has a flexible adjustment range, ranging from 1500 watts to 6000 watts. Whether it is for precise cutting of thinner pipes or efficient cutting tasks for slightly thicker pipes, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feeding receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipes, but also due to its automated operation, reduces the demand for manual intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
    封面图

    Features

    1.The design where the rear chuck is placed flat on the machine tool enhances the stability and speed of the pipe material's forward transportation.
    2.This is a model that doesn't require drawing,the operation is simple and convenient, and the cutting range is wide. Various specifications of cut pieces can be selected, including oval, circular, square, channel steel, angle steel, I-beam steel, and other various-shaped pipes.
    3.The cutting speed is fast and extremely stable. The typical hourly cutting quantity specification is between 2500 and 3500 pieces.
    4.There is no blind area in tailings, which reduces the subsequent processing workload and saves materials: the theoretical tailings cutting depth of this equipment is approximately 50 mm, which significantly reduces material loss.

    Application

    The G120D fully-automatic three-dimensional laser pipe cutting machine demonstrates unparalleled versatility in metal pipe processing, whether addressing automotive structural components like exhaust pipes and chassis brackets, or crafting medical-grade tubing for surgical instruments and implantable devices;whether processing round/square tubes for agricultural machinery components or tackling complex profiles needed in aerospace fuel systems;whether handling stainless steel kitchenware or electronic cooling fins, the G120D fully-automatic three-dimensional laser pipe cutting machine redefines precision through its combination of speed, flexibility, and minimal heat-affected zones.
    • 图片 2
    • 图片 1
    • 图片 4
    • 图片 8

    Parameters

    Model

    G120D

    Laser Power (W)

    1500/2000/3000/6000

    Cutting range (MM)

    Circumference:10-120

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H: 8856*1365*2172

    Body + Rack size (MM)

    Manual (L*W*H): 8856*1876*2172

    Machine weight(kg)

    ≈2500

    Acceleration(G)

    ≈1.6

    Tailings  length(MM)

    ≈50

    Samples

    • 图片 6
    • 图片 5
    • 图片 8
    • 图片 7

    Structures

    • product-description360n

      1. Laser source: Max/Raycus

    • 9

      2.Laser cutting head: Raytools / Ospri / Boci

    • 图片 6

      3. Operating system: Bochu FSCUT3000

    • 图片13

      4.Servo motors: HCFA

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G120D fully-automaticd Laser pipe Cutting Machine Equipment parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri / Raytools / Bochu

    Water cooling unit

    Hanli

    Chuck

    Pneumatic

    Servo motor

    HCFA

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-120MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6250mm

    Thickness of cutting material Depending on laser power (8.0mm thickness per 3000W)
    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning accuracy

    ±0.02mm

    Maximal acceleration

    1.6G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 2.5 tons

    Equipment dimension

    Length8856*width1876 *height2172mm
