Automatic 5-axis welding machine platform fiber laser welder with rotary clamp for aluminum steel hardware 2000w 3000w
Product Detail

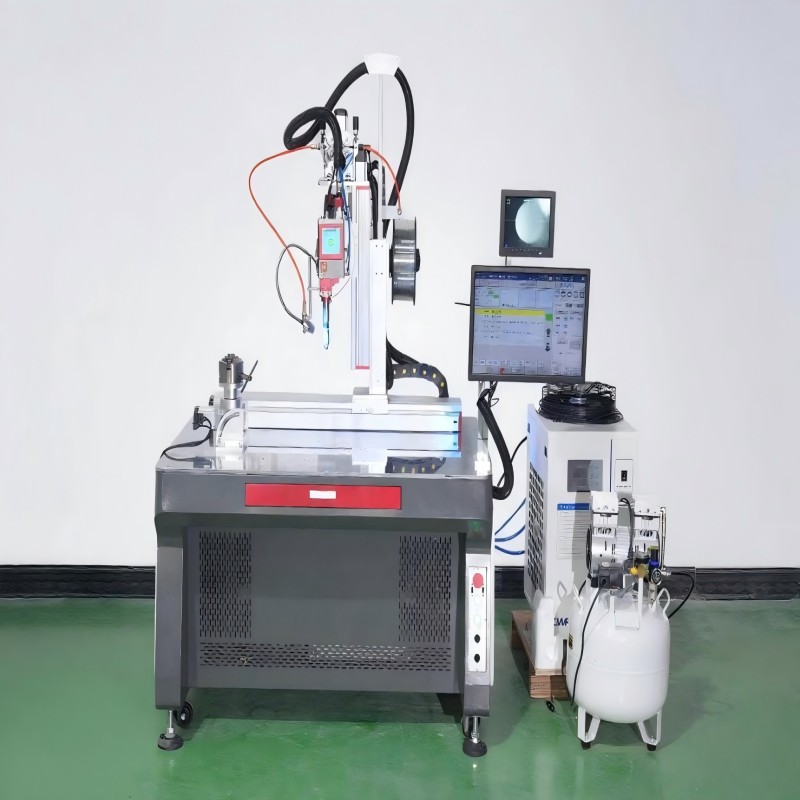

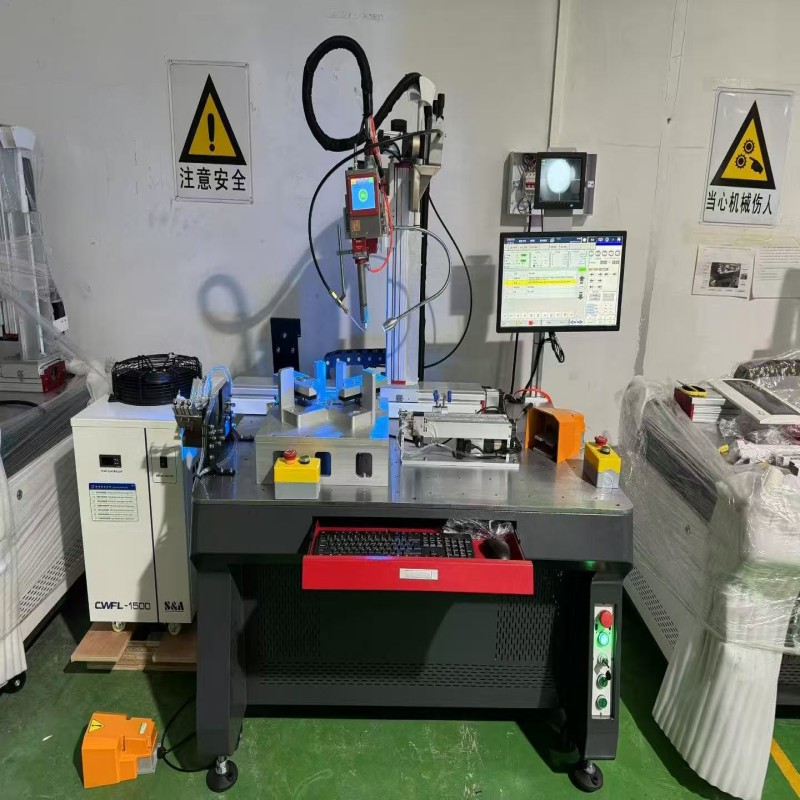

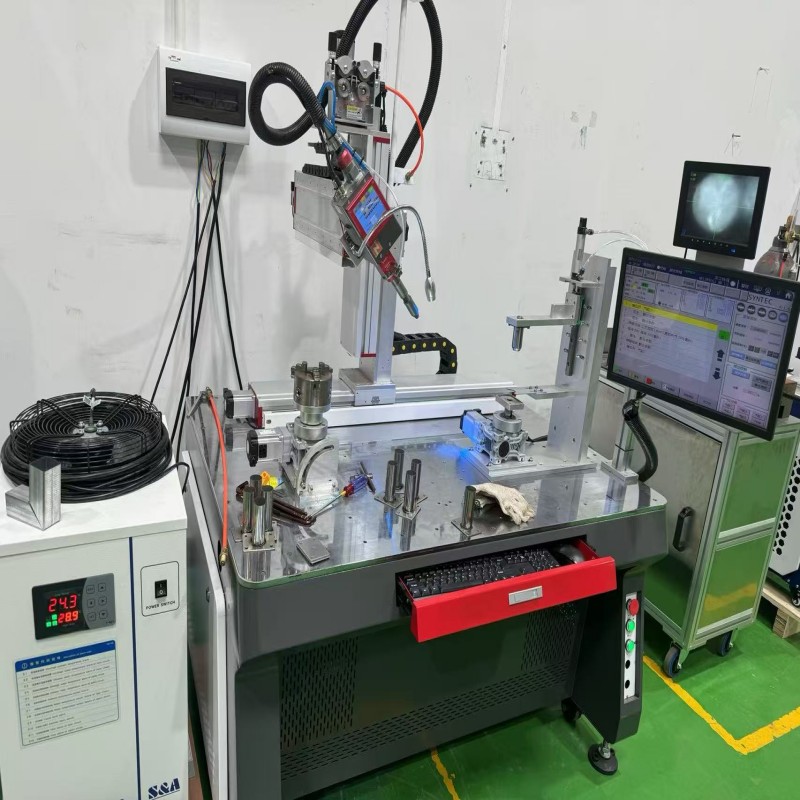

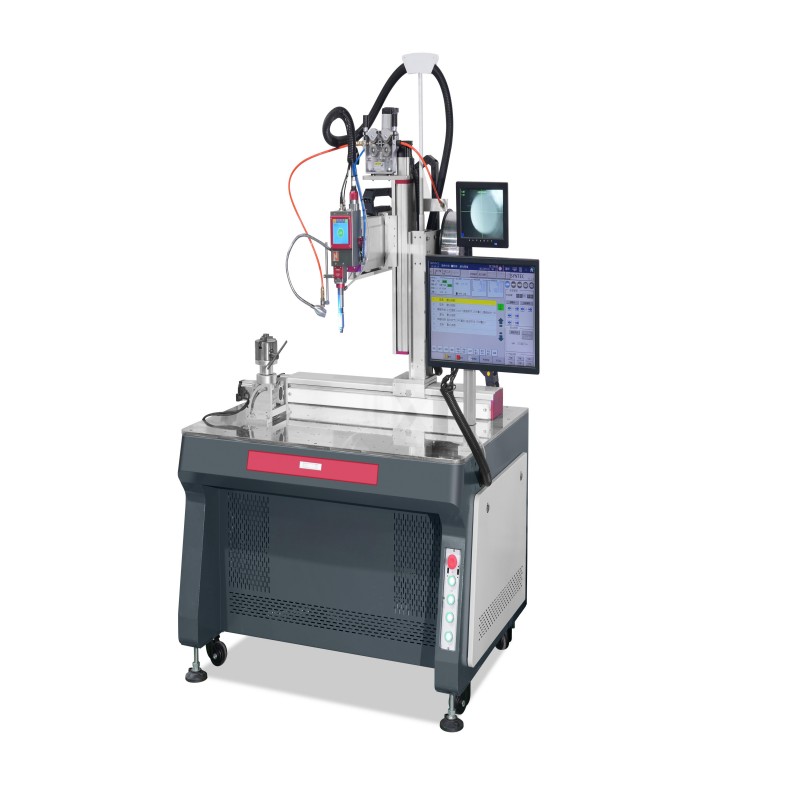

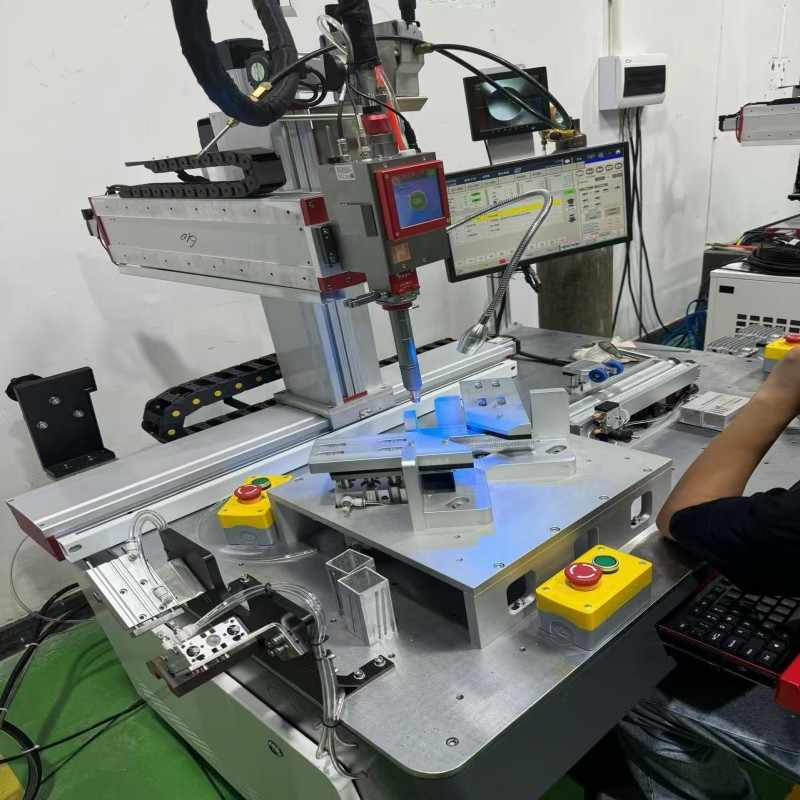

The QGF4-1500 Six-Axis Platform Laser Welding Machine from Qiangang Laser is a high-precision integrated system designed for welding small hardware and complex-shaped components. It features a software-controlled operation with highly stable performance and includes a red light guidance system for precise positioning. Equipped with a single-pendulum welding head, it supports spot, linear, and circular welding patterns, with adjustable seam width. The machine provides flexible movement along X, Y, and Z axes, with an optional rotary module for enhanced versatility. Built with a high-quality fiber laser source, a rigid aluminum alloy structure, and an intelligent dual-temperature cooling system, it delivers reliable operation with minimal maintenance requirements. Expandable I/O interfaces are also included for seamless automation integration.Product introduction
Features
1. Welding of conventional small hardware components and irregularly shaped parts (custom fixtures available);
2. Fully software-controlled with high integration;
3. High stability, output power fluctuation <3% at full load;
4. Equipped with red laser guidance;
5. Reserved expansion I/O interfaces for integration with electrical automation systems;
6. Equipped with a single-pendulum welding head supporting spot, linear, circular, and pattern welding;
7. User-friendly operation with minimal maintenance;
8. This laser welding system primarily comprises a fi
ber laser source, single-pendulum welding head, precision modules, light guide system, cooling circulation system, red light indicator, CCD imaging monitor system, and precision aluminum cabinet.Application
Parameters
|
Platform Laser Welder |
||
|
1 |
Matching Laser Power (W) |
1500W—3000W |
|
2 |
Laser wavelength |
1080±5nm |
|
3 |
Power Range |
1-100% |
|
4 |
Modulation frequency |
Continuous/Modulated 20-50KHz |
|
5 |
Power Stability |
≤3% |
|
6 |
Repeatability |
±0.05mm |
|
7 |
Beam Quality |
1.1/1.3/1.4/2.1/-2.7m³ |
|
8 |
Red light positioning |
Have |
|
9 |
Weld width
|
0.3-0.4mm（adjustable） |
|
10 |
Optical Fiber Output Interface |
QBH or custom output |
|
11 |
Power supply |
220V or 380V (depending on power rating） |
|
12 |
Operating Temperature |
10-40℃ |
|
13 |
Operating System |
Six-Axis Laser Welding Motion Control System |
|
14 |
Fiber optic cable |
15m |
|
15 |
Effective stroke |
X-axis = 800mm, Y-axis = 400mm, Z-axis = 300mm, A-axis = Rotation axis (optional) |
|
16 |
Motion axis
|
4-axis |
|
17 |
Maximum power consumption |
≤14kw |
|
18 |
Total weight
|
Approximately 400 kg |
|
19 |
External Dimensions |
1750mm*1200mm*1700mm |

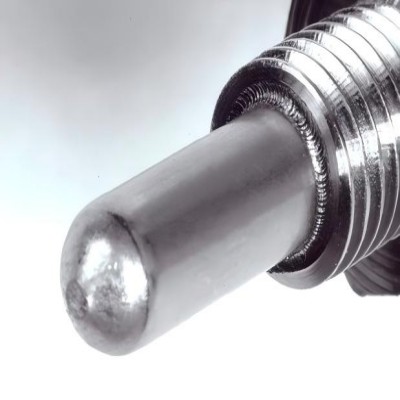

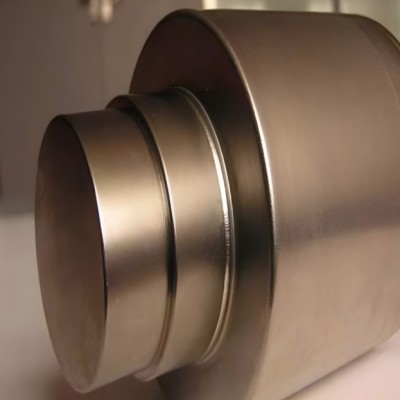

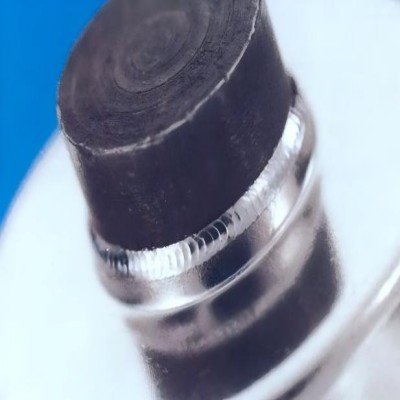

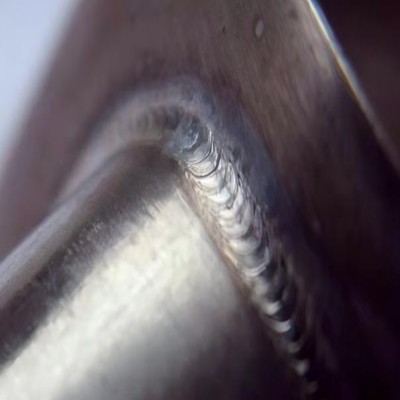

Samples
Structures
-

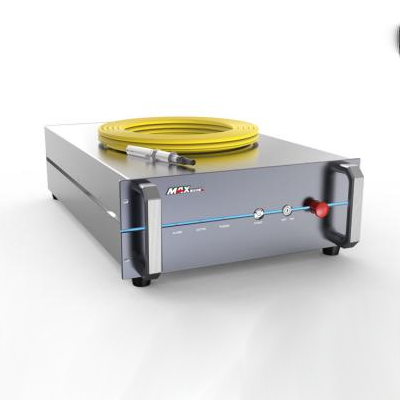

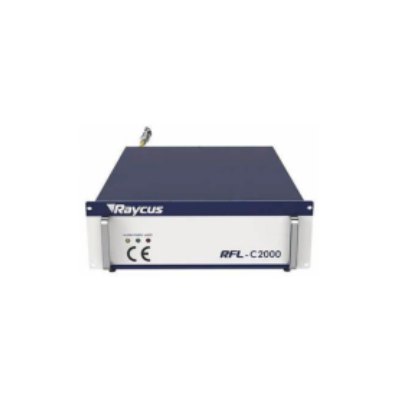

1.Laser source: Max/Raycus
-
-

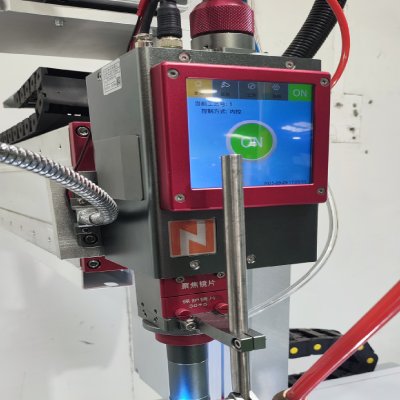

2.Fiber Laser Welding Head
-
3.Control system:
-

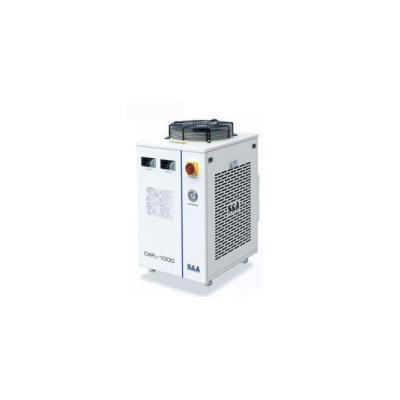

4.Water chiller: Hanli
-
5.Wire Feeder
-

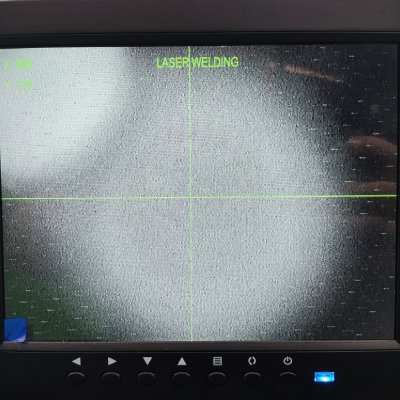

6.CCD display
-
7.Servo motors
Details
|
|
Name
|
Brand/Country of Origin
|
Model/Specifications
|
|
1 |
Fiber laser
|
Max |
1500W |
|
2 |
Fiber Laser Welding Head |
Leizhi Welding Head |
|
|
3 |
Control System
|
New Generation 6-Axis Bus System
|
|
|
4 |
Cooling System |
Hanli
|
|
|
5 |
Servo motor
|
HCFA |
|
|
6 |
working platform |
Qiangang standard |
1300*1000mm |
|
7 |
Effective stroke |
|
800*400*300mm |
|
8 |
CCD display |
Qiangang standard |
|
|
9 |
Wire Feeder (Servo) |
Qiangang standard |
|
|
10 |
LCD monitor |
Top brand |
|
