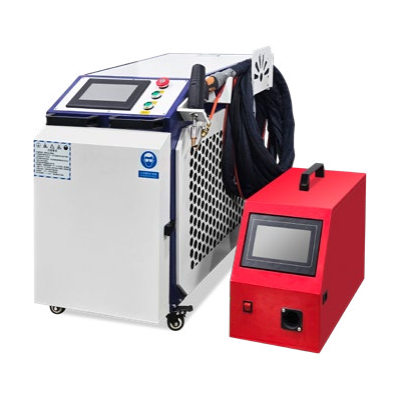

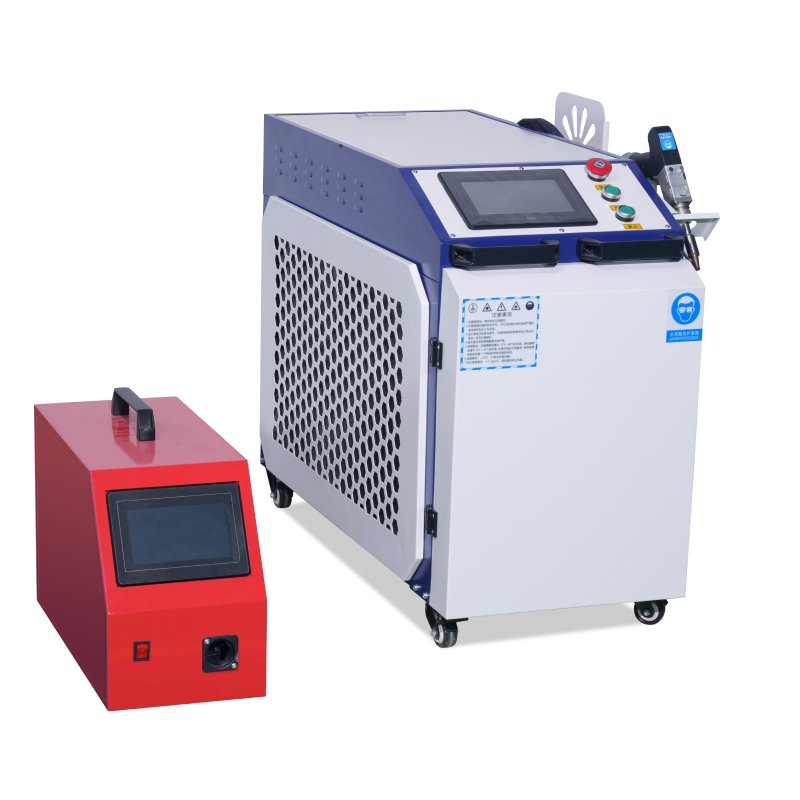

Handheld Laser Welder 1000W 1500W 2000W 3000W Portable Fiber Laser Welding Machine for Aluminum Multi-Function High Power Laser Welder for Stainless Steel Iron Copper
Product Detail
This handheld fiber laser welding machine features a 1000W fiber laser with high electro-optical conversion efficiency, long laser life, and fast welding speed, up to 5 times faster than traditional machines. It offers precise welding with minimal deformation, a small heat-affected zone, and deep, firm welds, suitable for large workpieces. The portable design overcomes spatial limitations, while the built-in water chiller saves space.Product introduction
Features
1. Integrated structural design offers flexibility and convenience. Fiber laser welding features high electro-optical conversion efficiency, superior beam quality, high reliability, and maintenance-free operation. Its adaptable design suits spot welding and full penetration welding of internal corners, external corners, and butt joints in various frame structural components.
2. High stability with output power fluctuation <3% at full load.
3. Equipped with red light guidance and automatic wire feeding.
4. Reserved expansion I/O interfaces enable integration with electrical automation systems for coordinated operation;
5. User-friendly operation with minimal maintenance;
6. This laser welding system primarily comprises a fiber laser, high-speed dual-pendulum welding head, cooling circulation system, red light indicator, and wire feeding system.
Application
Parameters
|
Handheld Laser Welding |
|||
|
Product Model |
WM4A-1500W |
WM4A-2000W |
WM4A-3000W |
|
Rated Output Power |
1500W |
2000W
|
3000W
|
|
Maximum Output Power |
1500W
|
2000W
|
3000W
|
|
Weight of the welding torch |
|
||
|
Output Fiber Length |
10 m 、 15 m |
||
|
Weld penetration |
0.1-3.5 mm |
0.1-5mm |
0.1-8mm |
|
Electricity demand |
AC220V/50-60HZ |
AC380V/50-60HZ |
|
|
Aim and position |
|
Red light |
|
|
Cooling method |
Water-cooled
|
||
|
Installed Power |
8 KW |
9.8 KW |
12KW |
|
Work Environment |
0-60℃ |
||
|
Installation dimensions
Dimensions (L×W×H)
|
900mx415 mmx710 mm |
1100mx600mmx1030mm |
|
|
Net weight of the body |
90KG |
98KG |
120 KG |
Samples
Structures
-

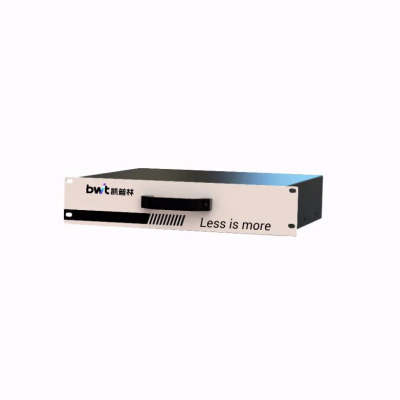

1.Laser source: Max/bwt
-
-

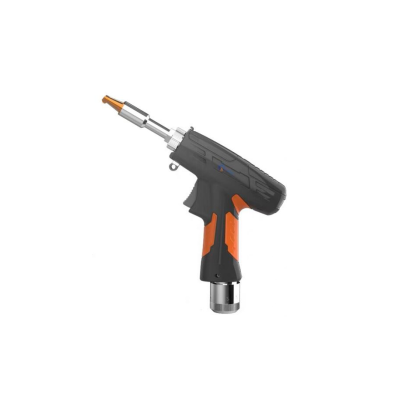

2.Laser welding gun：Super powerful Weiye
-
3.Laser welding gun：Super powerful Weiye
-
4.Cabinet:Teyu
-
5. Water chiller: Hanli/Teyu S&A
-

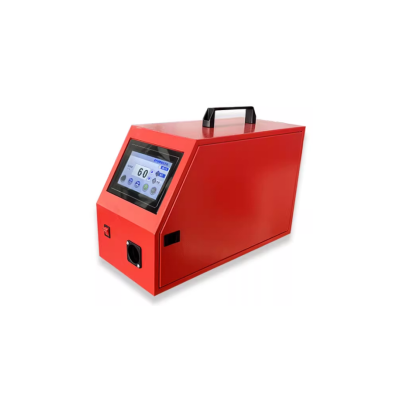

6.Wire Feeder
Details
|
Name |
Brand/Country of Origin |
Model/Specifications |
Quantity |
|
|
Fiber laser |
Max/bwt |
1500W-3000W |
1 |
|
|
System |
Super powerful Weiye |
Super powerful 21T 3 in 1 |
1 |
|
|
Cabinet |
Teyu |
|
1 |
|
|
Chiller |
Teyu S&A /Hanli |
|
1 |
|
|
Wire Feeder |
Super powerful Weiye |
|
1 |
|
|
List of Equipment Wear Parts and Specialized Accessories |
||||
|
Optical lenses |
Welding copper nozzle |
|||
