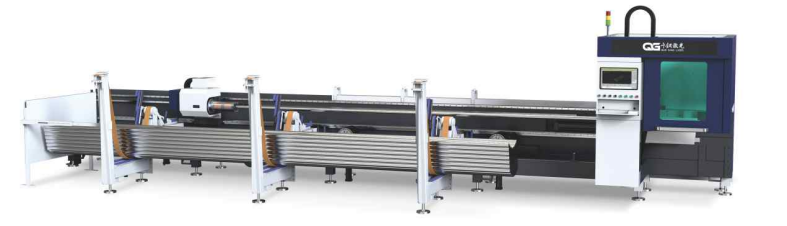

High-speed 3D Five-axis Bevel Laser Tube Cutting Machine

G170K Fully automatic

China QianGang is a highly innovative laser equipment manufacturing enterprise. The G170K fully automatic three-dimensional five-axis groove laser pipe cutting machine is efficient, of high quality and reliable. It brings high value returns to users and can be connected with an automated production line for production, which helps to maximize production efficiency.

    Contact us
    product details

    Product Detail

    We are a manufacturer specializing in the production of laser tube cutting machines. Our main products include high-efficiency three-dimensional five-axis multi-functional laser tube cutting machines, automatic laser tube cutting machines, and inclined-cut laser tube cutting machines. We can customize laser equipment according to your requirements. Our G170K fully automatic three-dimensional five-axis inclined-cut laser tube cutting machine has been widely applied in the industries such as hardware furniture, industrial production, automotive parts, mobile phone brackets, and medical devices.

    Product introduction

    The G170K Automatic Groove Laser Pipe Cutting Machine is specially designed for cutting various 45-degree pipes, with the laser power ranging from 1500 to 3000 watts. To maintain stability, enhance carrying capacity and improve shock resistance, the automatic loading and unloading platform has improved production efficiency and reduced labor costs.
    1

    Features

    1. The fully automatic feeding rack for equipment saves time and manpower, has a simple structure and is easy to operate.
    2. The efficiency is 5 to 6 times that of ordinary pipe cutting machines.
    3. The blind area of tail materials is small, which saves materials and reduces subsequent processes.
    4. The cutting remaining tail materials by the equipment can be controlled arbitrarily, even to zero, greatly reducing material loss.
    5. Follow-up cutting: The standard configuration includes an integrated height adjuster, which can easily handle deformed pipe materials.

    Application

    This G170K fully automatic inclined surface laser pipe cutting machine is applicable to numerous metal pipe processing fields such as hardware accessories, hardware furniture, bathroom fittings, medical equipment, sports equipment, automobile manufacturing, architectural decoration, 3C products, elevator equipment, etc.
    • 图片2

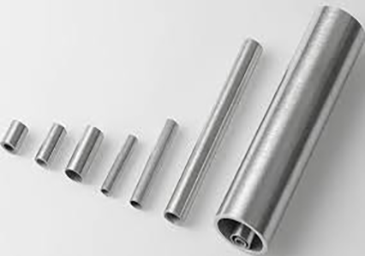

    • 图片3
    • 图片4
    • 1 (4)

    Parameters

    Model

    G170K

    Laser Power (W）

    1500/2000/3000

    Cutting range (MM)

    Circumference:10-170

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6250

    Machine size (MM)

    L*W*H:8874*1720*2175

    Body + Rack size (MM)

    Full Automatic(L*W*H):8874*2949*2175

    Machine weight（kg）

    ≈3.5

    Acceleration(G)

    ≈1.3

    Tailings  length(MM)

    ≈80

    Samples

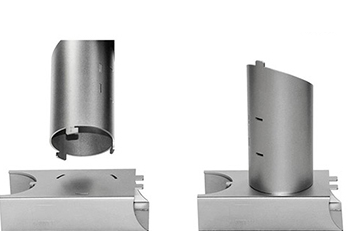

    • 1 (5)

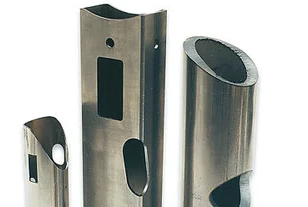

    • 1 (6)
    • 1 (7)

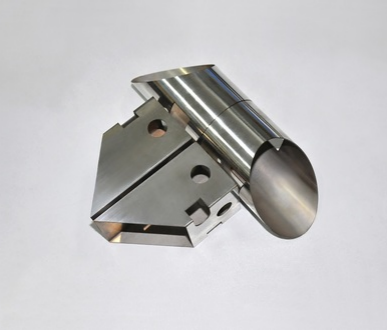

    • 图片9

    Structures

    • 图片91 (9)

      1. Laser source: Max/Raycus

    • product-description7

      2.Laser cutting head: Ospri

    • product-description13

      3.Operating system: Bochu FSCUT3000

    • 1 (14)1 (15)

      Servo motors: Huichuan/Delta

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G170K fully automatic Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri

    Water cooling unit

    Hanli

    Chuck

    Beut Precision  / Taiyuan Precision

    Servo motor

    Huichuan

    Guide rail slider

    Taiwan TBI

    Pipe processing range

    10-170MM

    Configuration of material rack

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimal cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    1.3G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 3.5 tons

    Equipment dimension

    Length8874*width 2949*height2175mm
