Laser Tube Cutting Machine Equipment

G90Z semi-automatic Loading

China QianGang Laser is a highly innovative laser pipe cutting machine factory. G90Z semi-automatic laser pipe cutting machine, high efficiency, fast speed, material saving, for customers to bring efficient returns, to achieve cost reduction and efficiency.

    Contact us
    product details

    Product Detail

    We are a professional manufacturer of laser cutting machine source. The main production of high-speed three-dimensional five-axis multi-functional laser pipe cutting machine, capillary laser pipe cutting machine, no drawing laser pipe cutting machine. We can tailor the laser to your needs. Our G90Z semi-automatic laser pipe cutting machine is often used in hardware furniture, industrial production, air conditioning, high-end kitchenware, medical equipment and other industries.

    Product introduction

    G90Z semi-automatic direct cutting laser pipe cutting machine small double chuck design, metal cutting speed is the fastest, laser power range of 1500 watts ~ 3000 watts. In order to speed up, the chuck is increased, the metal cutting speed is improved, the productivity is improved, and the labor cost is reduced. Laser cutting ranges from 1500 to 3000.

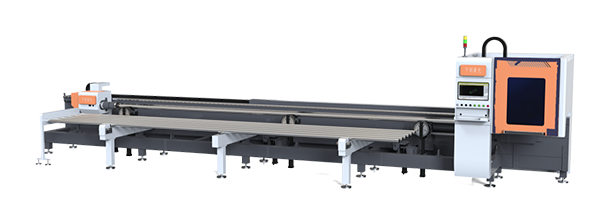

    封面图

    Features

    1. Cutting efficiency up to 2.0G, 5-6 times higher than the general pipe cutting machine.
    2. High cutting precision, accurate size, smooth cutting edge, no burrs or bevel, high verticality of the cutting surface, conducive to subsequent processing and assembly.
    3. The configuration is a first-line brand, high safety performance. Bochu system: equipped with advanced numerical control system, the operation interface is simple and intuitive, and does not require complex operating skills and experience.
    4. Excellent cutting quality. No residue. In the cutting process, the slag produced is very little, and the slag is easily blown away by the auxiliary gas without remaining in the cutting edge, thus ensuring the cleanliness of the cutting edge.

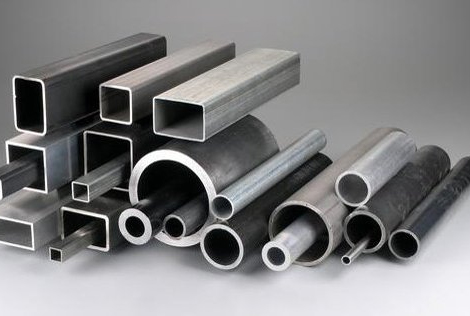

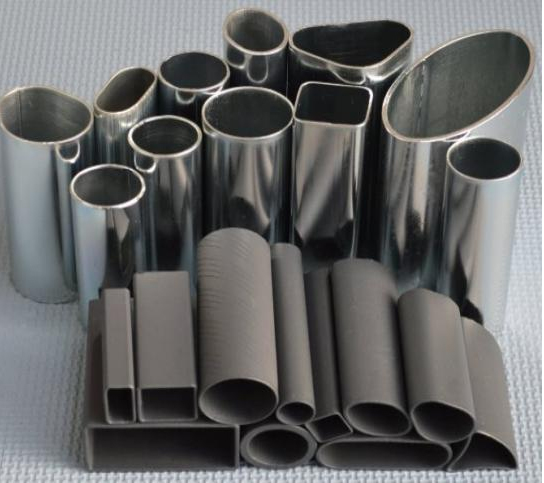

    Application

    Machine tool G90Z semi-automatic direct cutting laser pipe cutting machine equipment is suitable for metal parts, furniture, doors and Windows guardrail, medical equipment, sports equipment, automotive field, building decoration, elevator equipment and many other metal pipe processing fields
    • 1 (2)
    • 2 (2)
    • 图片3
    • 图片4

    Parameters

    Model

    G90Z

    Laser Power (W）

    1500/2000/3000

    Cutting range (MM)

    Circumference:10-90

    Repeat positioning accuracy (MM)

    ±0.02

    Pipe length range(MM )

    ≈6500

    Machine size (MM)

    L*W*H:8408*1650*2100

    Vehicle Body + frame size (MM))

    Semi-automatic(L*W*H):9300*1900*1950

    Machine weight（kg）

    ≈2.5

    Acceleration(G)

    ≈2.0

    Tailings  length(MM)

    ≈40

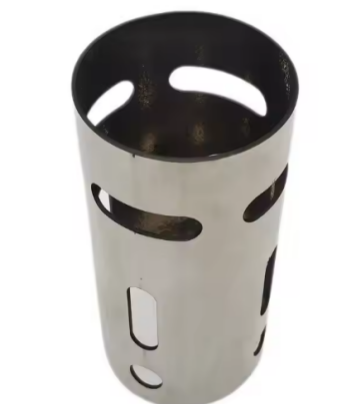

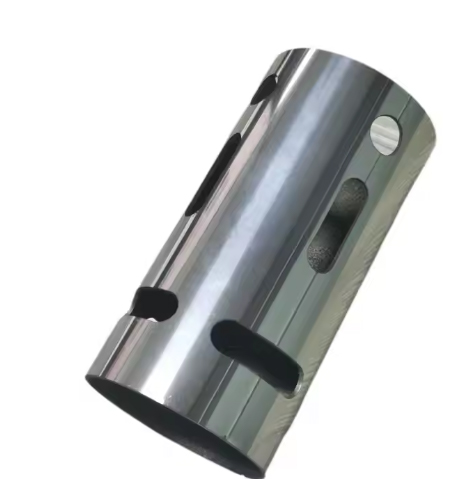

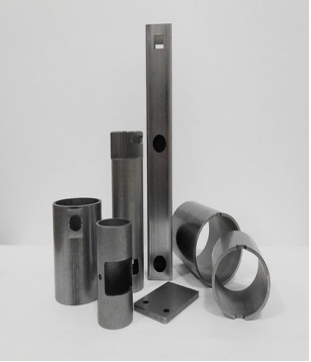

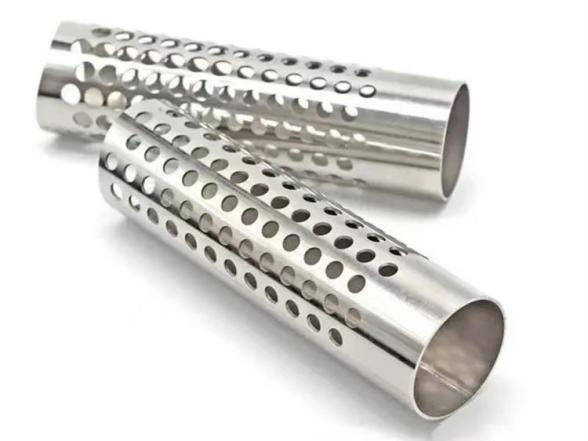

    Samples

    • 图片5
    • 图片6
    • 1 (7)
    • 图片8

    Structures

    • 图片91 (9)

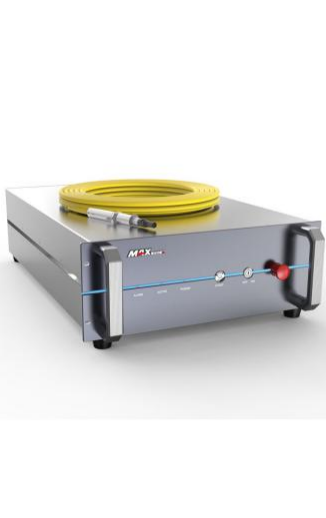

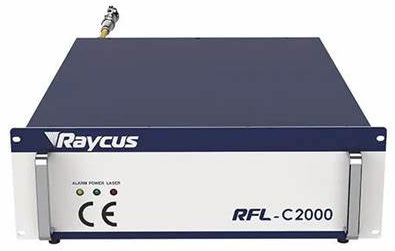

      1. Laser source: Max/Raycus

    • product-description7

      2.Laser cutting head: Ospri

    • product-description13

      3.Operating system: Bochu FSCUT3000

    • 1 (14)1 (15)

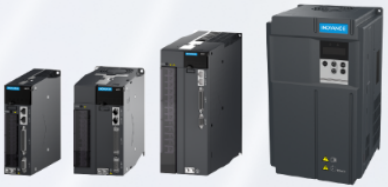

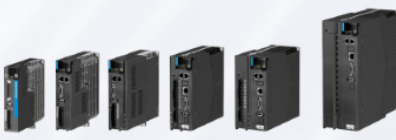

      Servo motors: Huichuan/Delta

    • product-description7nn3

      5. Water chiller: Hanli

    Details

    G90K semi-auto beveling Laser Tube Cutting Machine Equipment  parameter

    Parameter

    Supplier

    Laser source

    Raycus / Max

    Laser head

    Ospri/ Raytools/Bochu

    Water cooling unit

    Hanli

    Clamping plate

    Changzhou Beut

    Servo motor

    Huichuan/Delta

    Guide rail slider

    Taiwan TBI

    Processing range of pipe materials

    10-90MM

    Configuration of the material shelves

    Optional receiving rack

    (2 pneumatic supports as standard)

    Minimum cutting length

    1mm

    Loading length

    Automatic : 6000- 6250mm

    Thickness of cutting material

    Depending on laser power (8.0mm thickness per 3000W)

    Cutting slit width

    0.1-0.15mm

    Machine tool repeated positioning

    accuracy

    ±0.02mm

    Maximal acceleration

    2.0G

    Voltage

    380V/50Hz/60Hz

    Total weight of equipment

    About 2.5 kg

    Equipment dimension

    Length9300*width 1900*height1950mm
