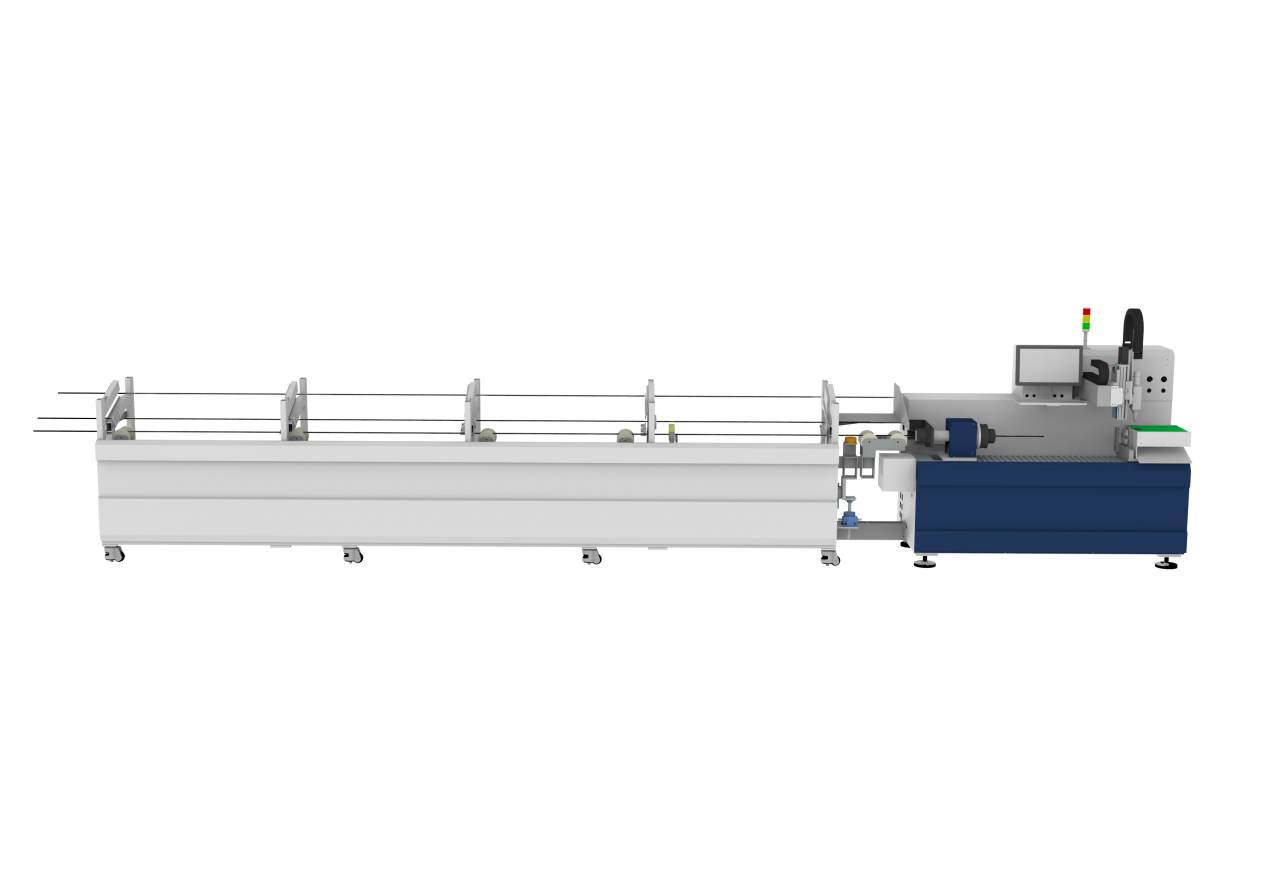

G40 semi-automatic laser pipe cutting machine+blue-white
Product Detail
We are a manufacturer specializing in the production of laser tube cutting machines. Our core products include high-efficiency three-dimensional multi-functional laser tube cutting machines, fully automatic laser tube cutting machines, and inclined-cut laser tube cutting machines. Additionally, we can customize laser equipment according to your specific needs. Our G40 semi-automatic high-speed laser tube cutting machine has been widely applied in multiple fields such as mechanical manufacturing,automotive engineering,furniture manufacturing and medical device production. With its outstanding performance, it has received high praise and full trust from customers. Currently, it is widely used in these fields.
Product introduction
The G40 manual feed laser tube cutting machine has achieved an extremely small tail waste area in its design, which not only saves materials but also reduces subsequent processes, thereby lowering labor costs. This equipment can precisely meet the complex and diverse processing requirements of pipe materials.
Whether it is for precise cutting of thinner pipe materials or efficient cutting tasks for slightly thicker pipe materials, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feed receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipe materials, but also due to its automated operation, reduces the demand caused by human intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
Whether it is for precise cutting of thinner pipe materials or efficient cutting tasks for slightly thicker pipe materials, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feed receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of pipe materials, but also due to its automated operation, reduces the demand caused by human intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
Features
1.Applicable to various metal materials, such as stainless steel, carbon steel, aluminum alloy and copper, with a pipe diameter range of 2 millimeters to 38 millimeters.
2.Mechanical structure: Equipped with a high rigidity mechanical structure and precise servo system to ensure a stable and reliable cutting process.
3.The cutting speed is very fast and stable. The typical hourly cutting piece count specification is between 2500 and 3500 pieces.
4. There are no blind areas in the tailings, which reduces the subsequent processing workload and saves materials: The theoretical tailings cutting depth of this equipment is approximately 100 millimeters, which significantly reduces material loss.
Application
The G40 semi feed three-dimensional laser tube cutting machine demonstrates unparalleled versatility in stair handrails and window guardrails. Whether it is processing stainless steel surgical instruments or decorative railings, the G40 manual feed three-dimensional laser tube cutting machine redefines precision through the combination of its speed, flexibility and minimum heat-affected zone.
Parameters
|
Model |
G40 |
|
Laser Power (W） |
1500/2000/3000 |
|
Cutting range (MM) |
Circumference:2-38 |
|
Repeat positioning accuracy (MM) |
±0.01 |
|
Pipe length range(MM ) |
≤6500 |
|
Machine size (MM) |
L*W*H: 1850*860*1500 |
|
Machine weight（kg） |
≈1500 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈100 |

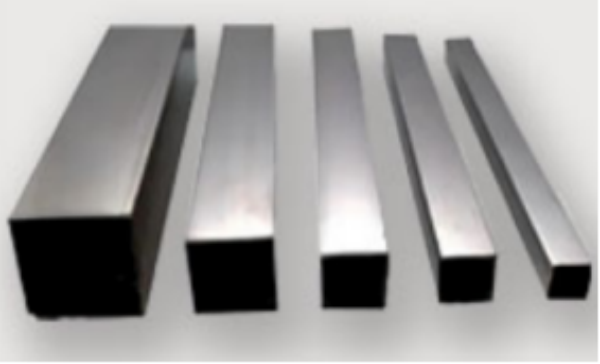

Samples
Structures
-
1. Laser source: Max/Raycus
-
2.Laser cutting head: Raytools / Ospri / Boci
-
3. Operating system: Bochu FSCUT3000
-
4. Servo motors: Inovance
-
5. Water chiller: Hanli
Details
|
G40 semi-automatic Laser pipe Cutting Machine Equipment parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri / Raytools / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Pneumatic |
| Servo motor |
Inovance |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
2-38MM |
| Minimal cutting length |
2mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.01mm |
| Maximal acceleration |
1.6G |
| Voltage |
380V/50Hz/60Hz |
| Total weight of equipment |
About 1.5 tons |
| Equipment dimension |
Length1850*width860 *height1500mm |
