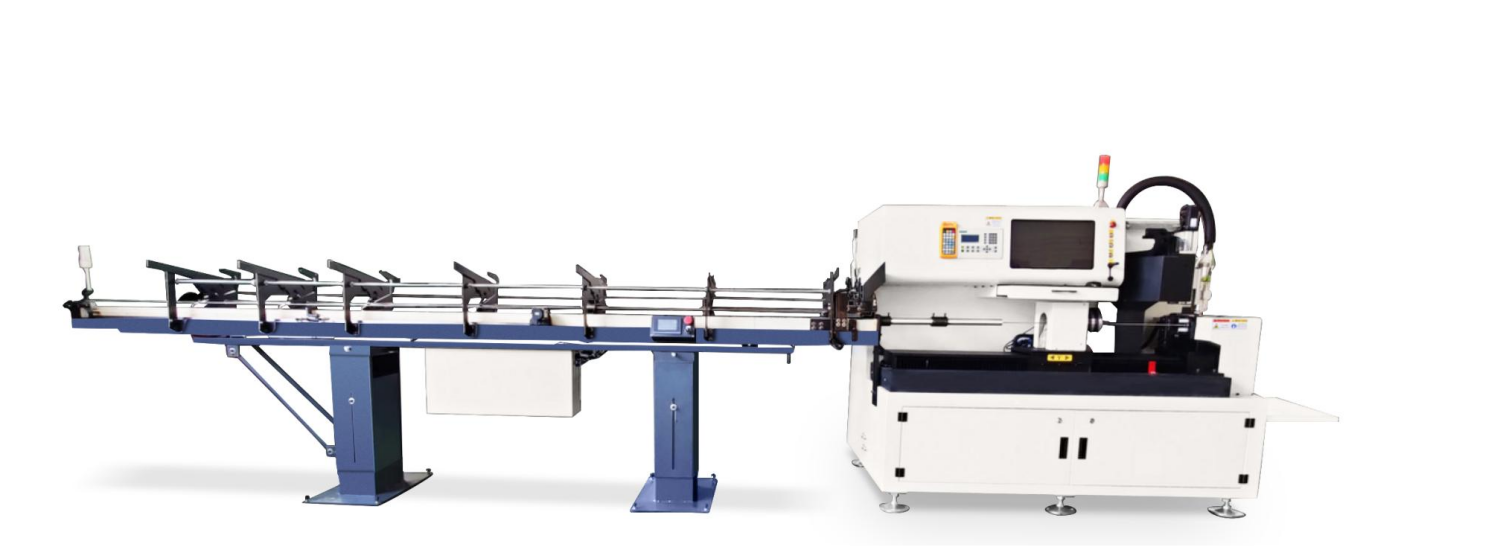

G25 manual-automatic laser pipe cutting machine+blue-white
Product Detail
We are a manufacturer specializing in the production of laser tube cutting machines. Our core products include high-efficiency three-dimensional multi-functional laser tube cutting machines, fully automatic laser tube cutting machines, and inclined cutting laser tube cutting machines. Additionally, we can customize laser equipment according to your specific needs. Our G25 manual automatic capillary precision cutting machine has been widely applied in various fields such as electronic cigarettes, air conditioners, purifiers, and medical equipment production. With its outstanding performance, it has received high praise and full trust from customers. Currently, it is widely used in these fields.
Product introduction
The G25 semi feeding laser tube cutting machine is designed in such a way that it not only saves materials but also reduces subsequent processes, thereby lowering labor costs. This equipment can precisely meet the complex and diverse processing requirements of tube materials.
Whether it is the precise cutting of thinner tube materials or the efficient cutting tasks of slightly thicker tube materials, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feeding receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of tube materials, but also due to its automated operation, reduces the demand caused by human intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
Whether it is the precise cutting of thinner tube materials or the efficient cutting tasks of slightly thicker tube materials, it can perform excellently and effortlessly. A notable feature is that it can be used in conjunction with an automatic feeding receiving platform. In actual production, this platform not only significantly improves production efficiency, effectively shortens the processing cycle of tube materials, but also due to its automated operation, reduces the demand caused by human intervention, thereby effectively lowering labor costs and creating more considerable economic benefits for the enterprise.
Features
1.Suitable for various metal materials, such as stainless steel, carbon steel, aluminum alloy and copper, with pipe diameters ranging from 2 millimeters to 38 millimeters.
2.Fast speed and high efficiency. The acceleration reaches 1.6G, and the efficiency is 5-6 times that of ordinary pipe cutting machines. The typical number of cut pieces per hour is between 2500 and 3500.
3.Marble platform, the moving parts adopt a marble platform, which is more stable in size and shape, ensuring that the bed body does not deform during its service life.
4.The DD motor adopts high-precision DD motors. It does not require origin reset, has fast response, high rotational speed and low noise.
Application
The G25 manual-automatic feed tube precision laser tube cutting machine has demonstrated unparalleled versatility in the production of electronic cigarette tubes and medical equipment. Whether it is for high-end cabinets or mobile phone stands, the G25 manual-automatic feed tube precision laser tube cutting machine has redefined precision through the combination of its speed, flexibility, and extremely small heat-affected zone.
Parameters
|
Model |
G25 |
|
Laser Power (W） |
1500/2000/3000 |
|
Cutting range (MM) |
Circumference:2-25 |
|
Repeat positioning accuracy (MM) |
±0.01 |
|
Pipe length range(MM ) |
≤6500 |
|
Machine size (MM) |
L*W*H: 2000*1100*1800 |
|
Machine weight（kg） |
≈1500 |
|
Acceleration(G) |
≈1.6 |
|
Tailings length(MM) |
≈100 |

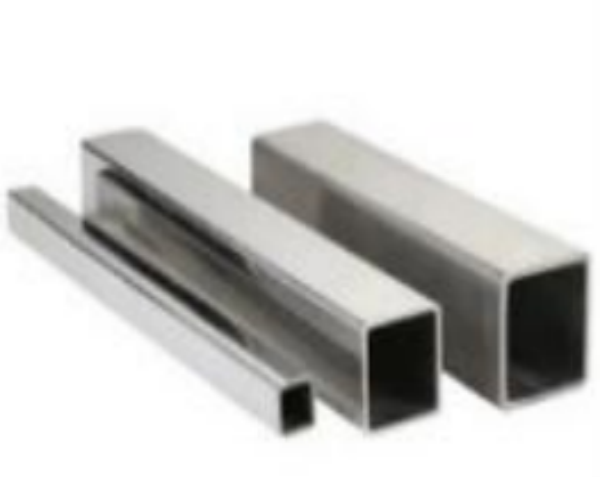

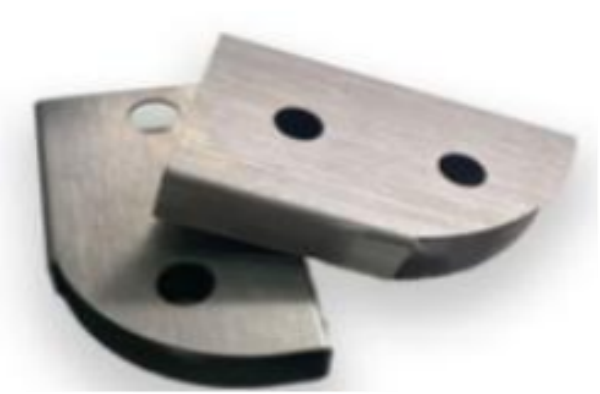

Samples
Structures
-
1. Laser source: Max/Raycus
-
2.Laser cutting head: Raytools / Ospri / Boci
-
3. Operating system: Bochu FSCUT3000
-

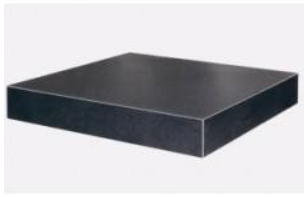

4.Marble platform
-
5. Water chiller: Hanli

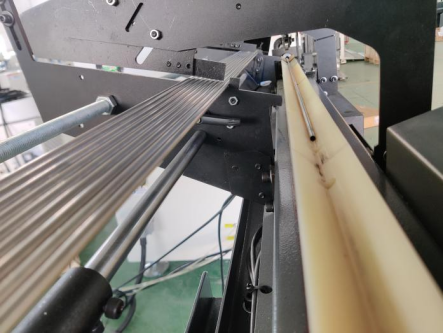

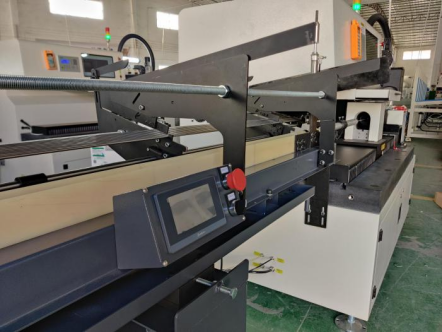

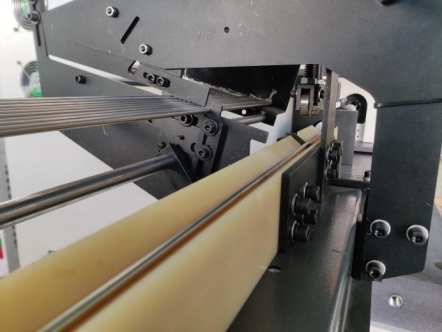

Details
|
G25 manual-automatic Laser pipe Cutting Machine parameter |
|
|
Parameter |
Supplier |
|
Laser source |
Raycus / Max |
|
Laser head |
Ospri / Raytools / Bochu |
|
Water cooling unit |
Hanli |
|
Chuck |
Pneumatic |
| Servo motor |
Inovance |
| Guide rail slider |
Taiwan TBI |
| Pipe processing range |
2-25MM |
| Minimal cutting length |
2mm |
| Thickness of cutting material | Depending on laser power (8.0mm thickness per 3000W) |
| Cutting slit width |
0.1-0.15mm |
| Machine tool repeated positioning accuracy |
±0.01mm |
| Maximal acceleration |
1.6G |
| Voltage |
380V/50Hz/60Hz |
| Total weight of equipment |
About 1.5 tons |
| Equipment dimension |
Length2000*width1100 *height1800mm |
